Automatic Vertical PLC Control 50mm Insulating Glass Production Line Machinery

2000*3000mm Insulating Glass Production Line

PLC Insulating Glass Production Line

50mm Double Glass Processing Line

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass

Certification:

CE & ISO9000

Request A Quote

Product Details

Brand Name:

Jinan Lijiang Glass

Weight:

7500kg

Warranty:

1 Year

Min Glass Size:

400x200mm

Max.Glass Size:

2000x3000mm

PLC:

Siemens

Material:

Stainless Steel

Color:

Customer Opitional

Highlight:

2000*3000mm Insulating Glass Production Line

PLC Insulating Glass Production Line

50mm Double Glass Processing Line

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Wooden Box

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

10 sets on per 30 working days

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

Insulating Glass Production Line Double Glass Processing Line on Sale

Product Description

1). This machine is specially designed for producing slot-all insulating glass. It is composed of a feeding section, washing-drying section, location section, assembling section, plate pressing section, and shifting & tilting section.

2). Accomplishing the double glazing's cleaning, all-frame locating, auto-assembling, flat-pressing, and smooth shifting out.

3). Centre press on the plate press section can ensure an excellent effect.

4). PLC control, frequency step-less speed control, imported electrical parts.

5). The washing section for glass carrying is equipped with a tension bridle device to fit requirements of high speed.

6). The overall structure of air knife, guiding wheel, and running wheel of the drying section are equipped with a tension bridle device to ensure drying effect of thick or thin glass.

7). The machine can be upgraded according to users’ requests.

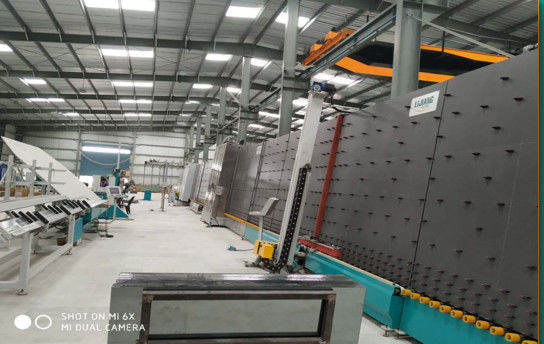

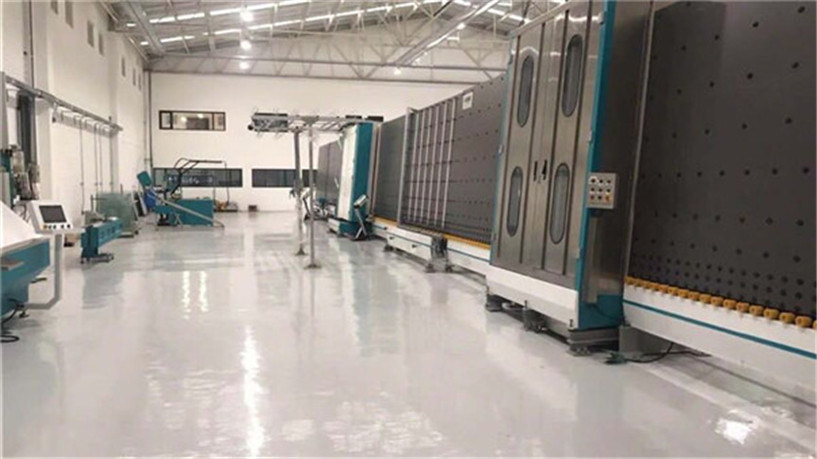

The whole insulating glass production line usually includes 7 parts:

(from right to left)

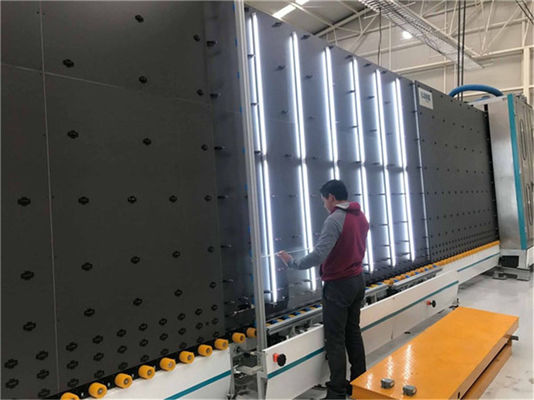

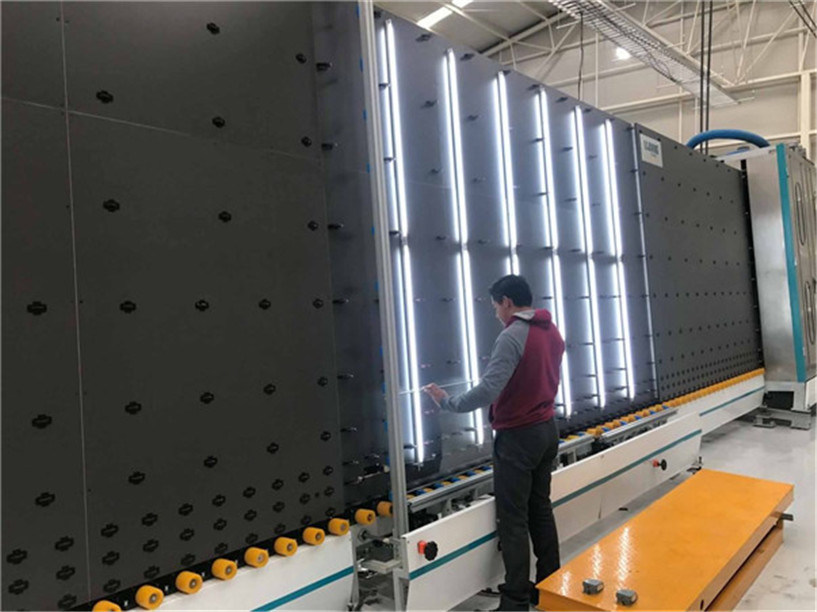

1, The Loading section(with Low-E checking) 2, The washing and drying section(can washing Low-E glass) 3, The conveyor section 4, The checking and assembly section 5, The conveyor measure, and the sensor section 6, The press part with gas filling 7, The unloading section.

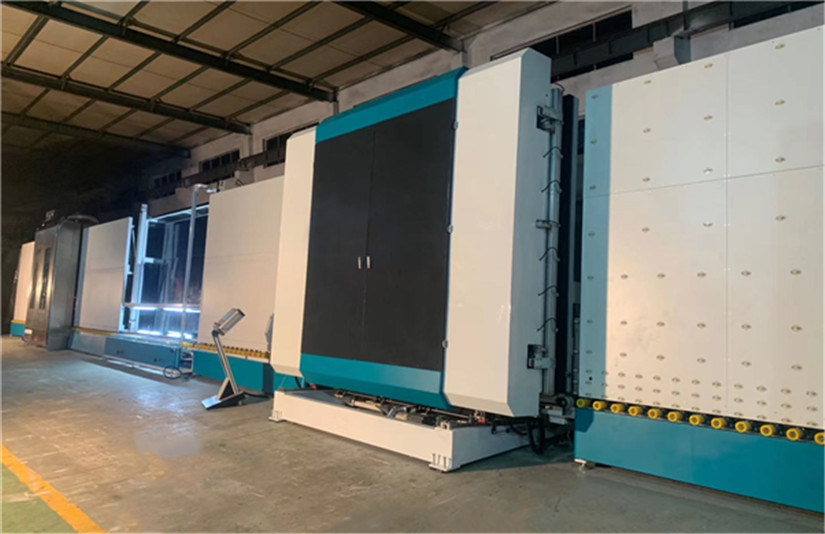

The second part: the washing and drying section.

In this glass cleaning section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.

The 6th parts: the pressing and gas filling section.

In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure.(Entirely as same as the structure of LISEC)  Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.

Main Technical Parameter

Model number	LB2000P
Power voltage	380V/50Hz
Total power	23.07Kw
Min glass size(L*H)	400*200mm
Max glass size(L*H)	2000*3000mm
Max.Insulating glass thickness	50mm
Working speed	Max. in washing section 12m/min
Working speed	Max. in accelerator 48m/min
Brush	3pairs (LOW-E)
Overall dimensions	25300×2200×2800mm
Net weight	7500kg
