Product Details:
|
| Production Name: | Manual Argon Gas Filling Machine | Max Filling Size: | 2000 Mm*2000 Mm |
|---|---|---|---|
| Filling Process: | Display On The Touch Screen | Gas Concentration: | >98% |
| Use: | Filling Argon Gas For Insulating Glass | Warranty: | 1 Year Or Two Years |
| Original Place: | Jinan China | Package: | Wooden Box |
| High Light: | 0.5kw Argon Gas Filling Machine,2000mm*2500mm Argon Gas Filling Machine,0.2Mpa Insulating Glass Argon Gas Filler |
||
Insulating Glass Manual Argon Gas Filling Machine For Filling Argon Gas
The type of LJCJ02 smart insulating glass gas filling machine is a special equipment for filling insulating glass. The device by microcomputer and imported from the sensor to form a closed loop control system, high degree of intelligent equipment, precise control, pneumatic concentration adjustable, charging efficiency is high, the operation is simple. It is essential to further improve the performance of the hollow glass equipment.
1. Specifications and technical date :
| Item | Value |
| Power supply | AC220 V 50Hz |
| 0.5kw | |
| Contour dimension | 600X400X1210mm |
| Machine net weight | 40kg |
2. The conditions of use
1.The argon gas source: pressure 0.2Mpa.
The air compressor machine source: pressure 0.4Mpa.
The use of the environment: 0~40 ℃, no condensation, operation panel and control box can not have water intrusion.
3. The main structure of production
The gas filling machine comprises tree parts. There are filling gas, controlling and detection. The filling gas part mainly comprises outlet circuit, return circuit and control valve. The controller part mainly comprises touch screen, start group selection switch, controlling button, controller and buzzer alarm. Detection part mainly comprises sensor.
4. Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically

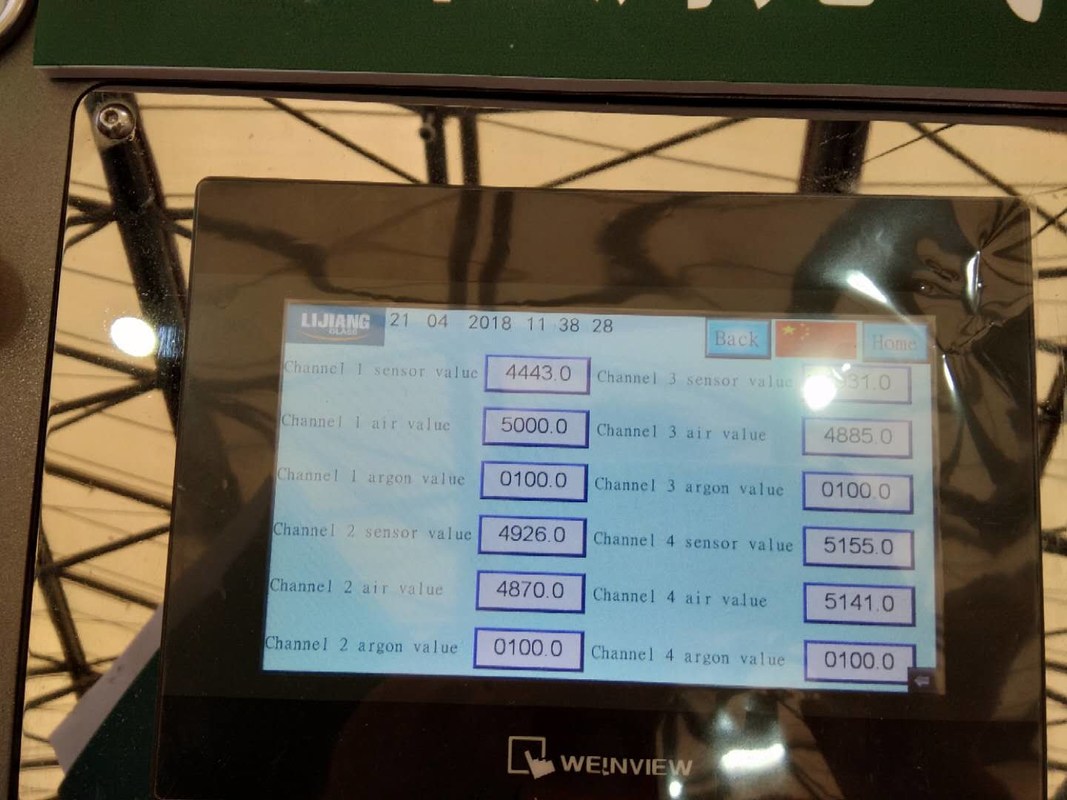

• Can set and display the data of gas value
5. Installation and adjustment
5.1 The equipment placed smoothly, pay attention to prevent the fall and damage controller and control system.
5.2 Connect the power socket, the total air interface, the outlet pipe and the return pipe.
6.Before inflation to adjust the technical parameters
6.1 when adjust the argon gas flow, through the control valve on the panel.
6.2 Inflation pressure setting:In order to avoid the insulated glass damage because of the high inflation pressure.You need to make the working pressure is 0.2Mpa, adjust the argon gas reducing valve in the control panel into 0.1-0.2mpa, Inside the machines box, make the air resource of air compressed machines into 0.4mpa.
According to the size of the insulating glass and the inflation rate to set the upper and lower limits of pressure, when the double glass bigger than 1.5 m X 1.5 m, the air resource of air compressor properly adjusted bigger value.
Insulating Glass Manual Argon Gas Filling Machine For Filling Argon Gas
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full, it will alarm and stop automatically
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
