Product Details:
|
| Production Name: | Argon Gas Filling Machine | Max Filling Size: | 2000 Mm*2000 Mm |
|---|---|---|---|
| Filling Process: | Display On The Touch Screen | Gas Concentration: | >99% |
| Usage: | Filling Argon Gas For Insulating Glass | Warranty: | 24 Months |
| Original Place: | Jinan China | Package: | Wooden Box |
| High Light: | Intelligent Manual Gas Filling Machine,Insulating Glass Manual Gas Filling Machine,Intelligent gas filling equipment |
||

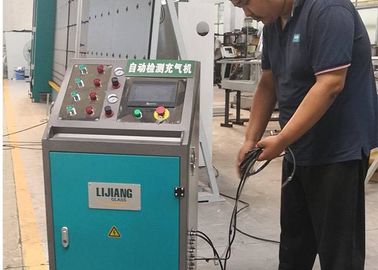

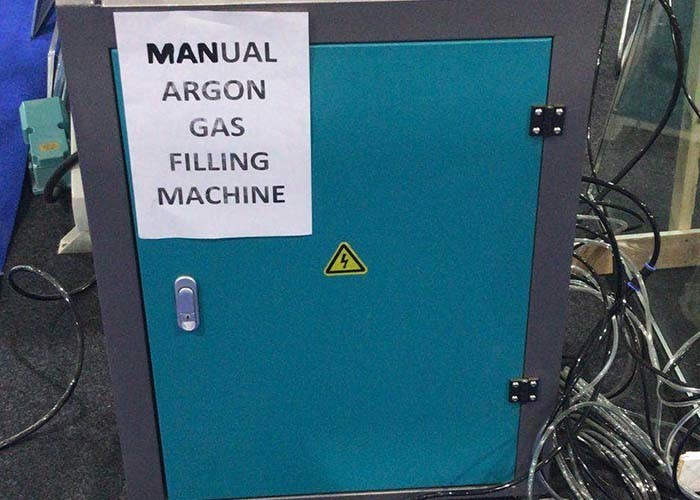

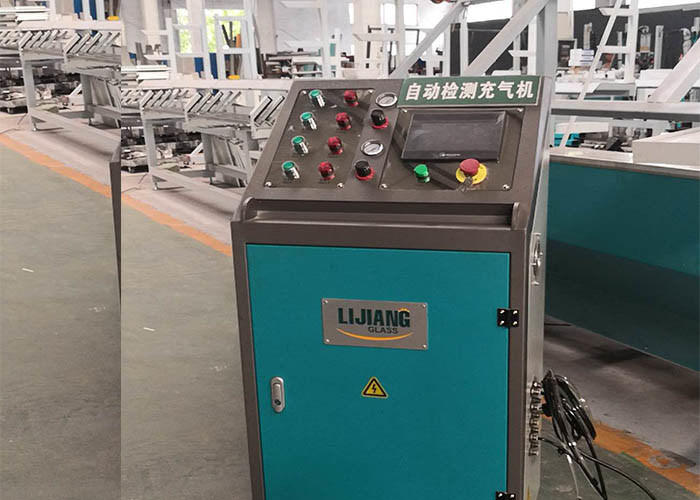

intelligent Manual Gas Filling Machine For Making Insulating Glass Processing

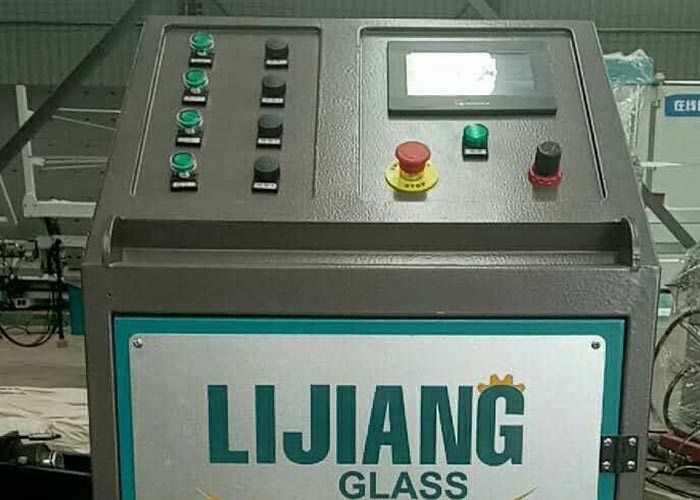

We can input the gas filling proportion into the touch screen, during the gas filling ,the touch screen can display the whole process of gas filling visually at the same time.
There have pressure alarm device, when the gas filling is enough to the adjusted proportion value, the alarm device will work and the machine stop automatically.
Within 20s 1㎡ IGU will be finished. There have two gas pipe one is argon -in in the bottom of IGU ,another one is air -out in the top of IGU.
It can gas filling 4 piece IGU one time.
All electricity components are Germany Siemens
1. Specifications and technical date of argon gas filling machine :
| Item | Value |
| Power supply | AC220 V 50Hz |
| 0.5kw | |
| Contour dimension | 600X400X1210mm |
| Machine net weight | 40kg |
Description of Two pump Sealant-spreading Machine
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass. A ans B pump, glue gun and safety valve are all from Korea Handok. So it can ensure the reliable working-effect. Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Main feature
n Imported motor system
n Imported sealant gun, stainless steel mixer
n High pressure protect device
n Mixed rate detector
n Anti-back flow control structure
n Important control parts adopt Korea Brand
Main technical parameter
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
The feature of sealant spreading machine
1.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
2.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
3.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
4.The rotating arm is equipped with a universal device, flexible and portable .
5.Pneumatic control ,split type structure ,easy to operate
Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
