Product Details:
|
| Production Name: | Argon Gas Filling Machine | Max Filling Size: | 2000 Mm*2000 Mm |
|---|---|---|---|
| Filling Process: | Display On The Touch Screen | Gas Concentration: | >98% |
| Use: | Filling Argon Gas For Insulating Glass | Warranty: | 1 Year Or Two Years |
| Original Place: | Jinan China | Package: | Wooden Box |
| High Light: | Dgu Argon Gas Filling Machine,Argon Gas Filling Machine Insulating Glass,Dgu Argon gas refill machine |
||
MANUAL ARGON GAS FILLING MACHINE FOR DGU INSULATING GLASS MACHINE FOR DGU

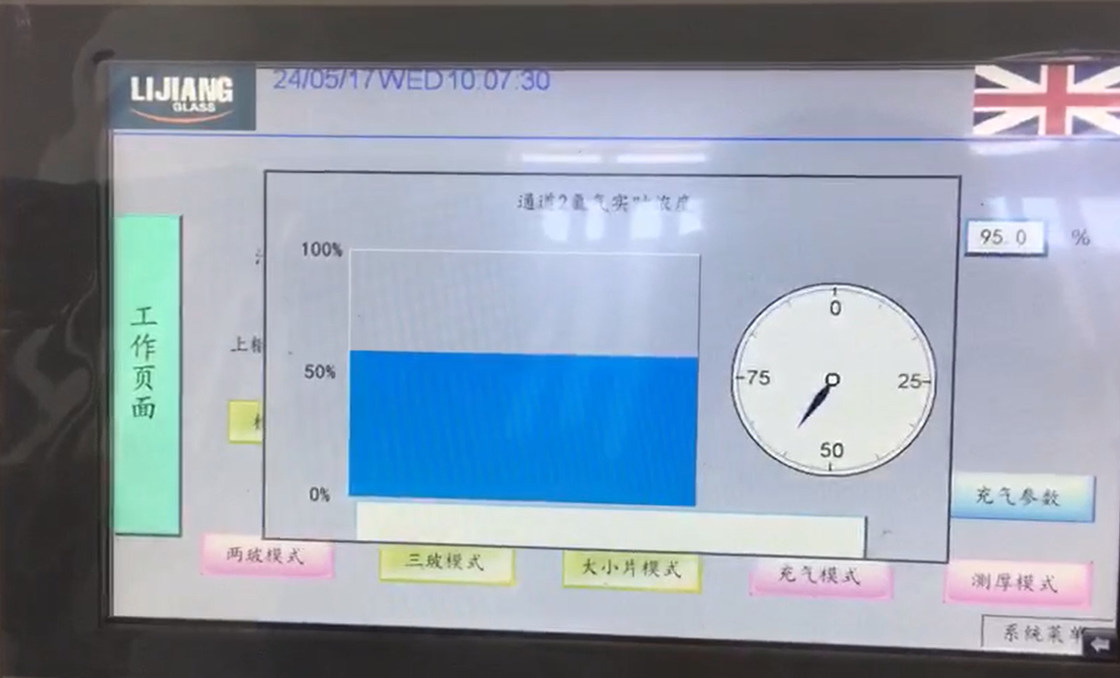

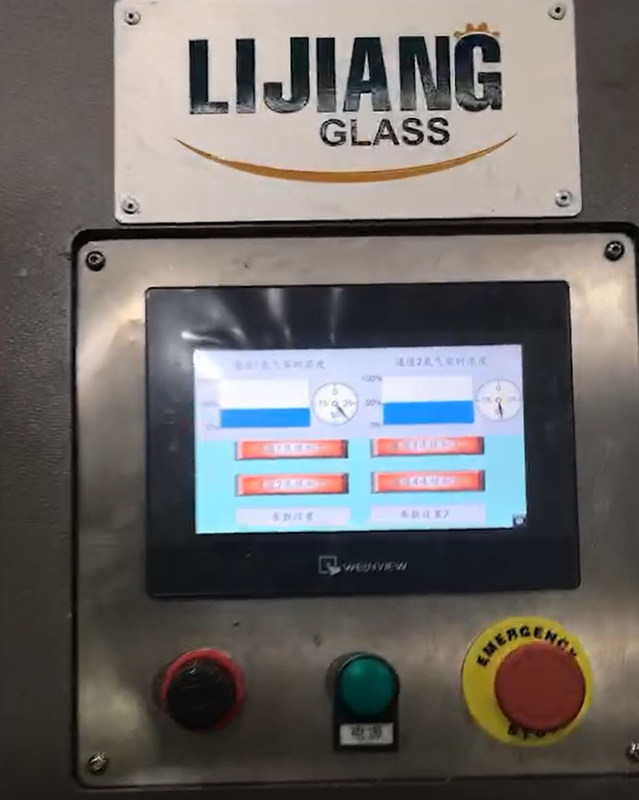

1,We can input the gas filling proportion into the touch screen, during the gas filling ,the touch screen can display the whole process of gas filling visually at the same time.
2,There have pressure alarm device, when the gas filling is enough to the adjusted proportion value, the alarm device will work and the machine stop automatically.

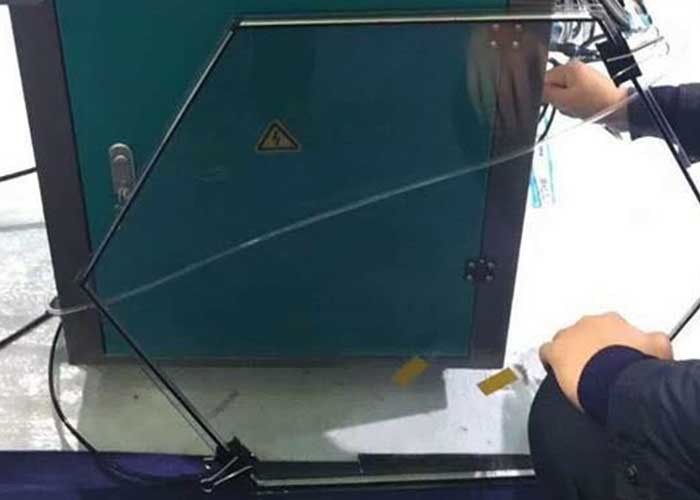

3, Within 20s 1㎡ IGU will be finished. There have two gas pipe one is argon -in in the bottom of IGU ,another one is air -out in the top of IGU.
4, It can gas filling 4 piece IGU one time.
5, All electricity components are Germany Siemens

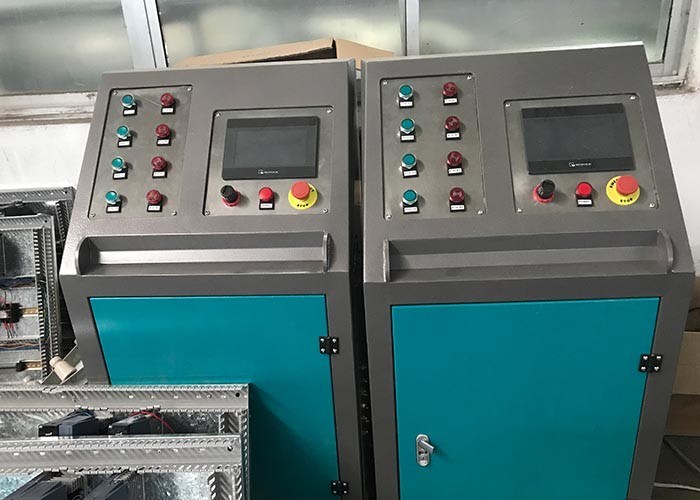

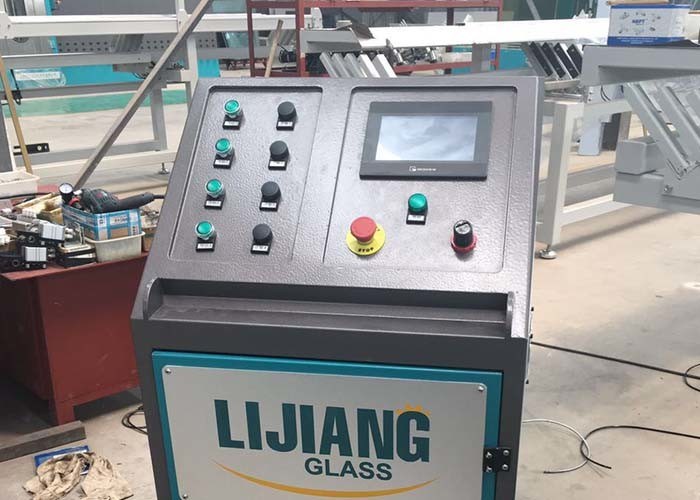

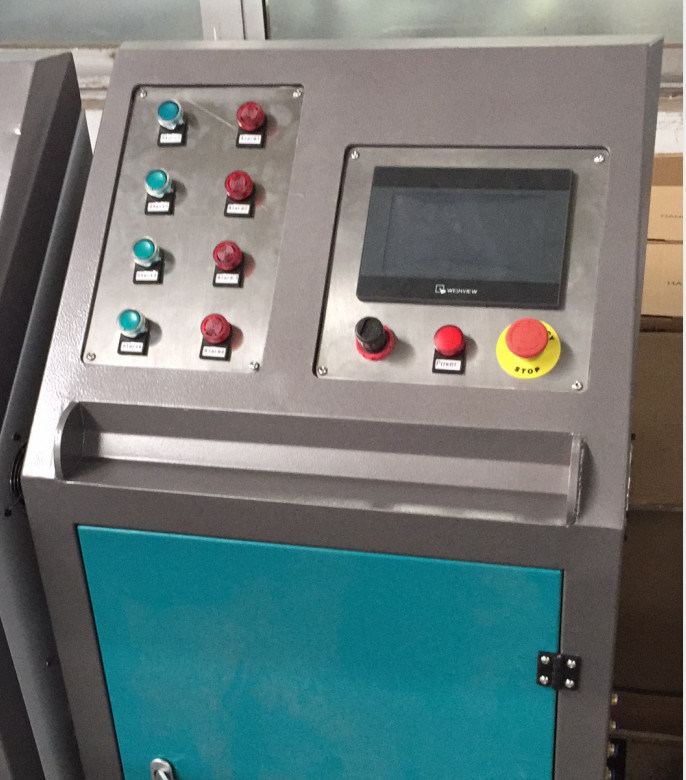

Smart insulating glass gas filling machine LJCJ02 is a special equipment for filling argon into insulating glass. The device by microcomputer and imported from the sensor to form a closed loop control system, high degree of intelligent equipment, precise control, pneumatic concentration adjustable, charging efficiency is high, the operation is simple. It is essential to further improve the performance of the hollow glass equipment.
1. Specifications and technical date of argon gas filling machine :
| Item | Value |
| Power supply | AC220 V 50Hz |
| 0.5kw | |
| Contour dimension | 600X400X1210mm |
| Machine net weight | 40kg |
2. The conditions of use
1.The argon gas source: pressure 0.2Mpa.
The air compressor machine source: pressure 0.4Mpa.
The use of the environment: 0~40 ℃, no condensation, operation panel and control box can not have water intrusion.
The feature of sealant spreading machine
1.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
2.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
3.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
4.The rotating arm is equipped with a universal device, flexible and portable .
5.Pneumatic control ,split type structure ,easy to operate
Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
