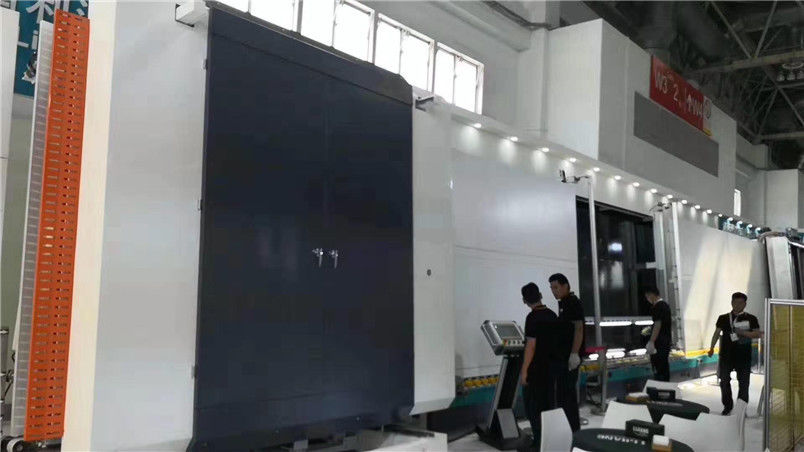

0.8MPa 19.5m Insulating Glass Production Line With Panel Press

Glass Making Machine Vertical Insulating Glass Production Line with Panel Press

LIJIANG Glass Main products :

IG line series;

Low-e film edge deletion machine;

Sealing robot series;

Butyl extruder machine series;

Molecular sieve filling machine;

Spacer bending machine series;

Auxiliary insulating glass machines.

About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, windows and doors, building curtain wall, high-speed rail, elevator and advertising industry.

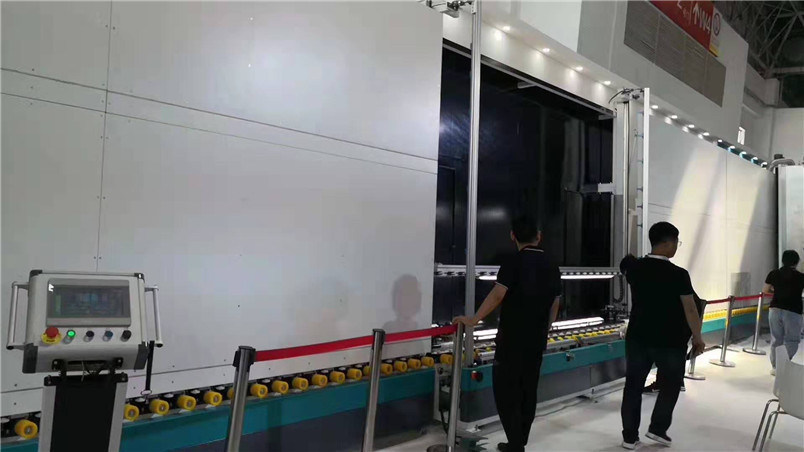

Vertical Insulating Glass Processing Line - 2000*2500

IG line series :

Sizes :

2000*2500

2500* 3500

3000* 4000

Functions :

double glazing glass

triple glazing glass

four sides step glazing glass

Special technology :

Filling argon gas online

Low-e film glazing glass

Shaped glazing glass

Making two pieces of IG units in once time

Air floating insulating glass line

Main Features:

• Vertical Insulating Glass Processing Line has 7 sections:

01 transfer section;

02 washing section;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

Washing section:

Main feature:

• Pre-washing (Optional)

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• European silencer system

• Stainless steel material

• Water tank automatic temperature control, water replenishing system

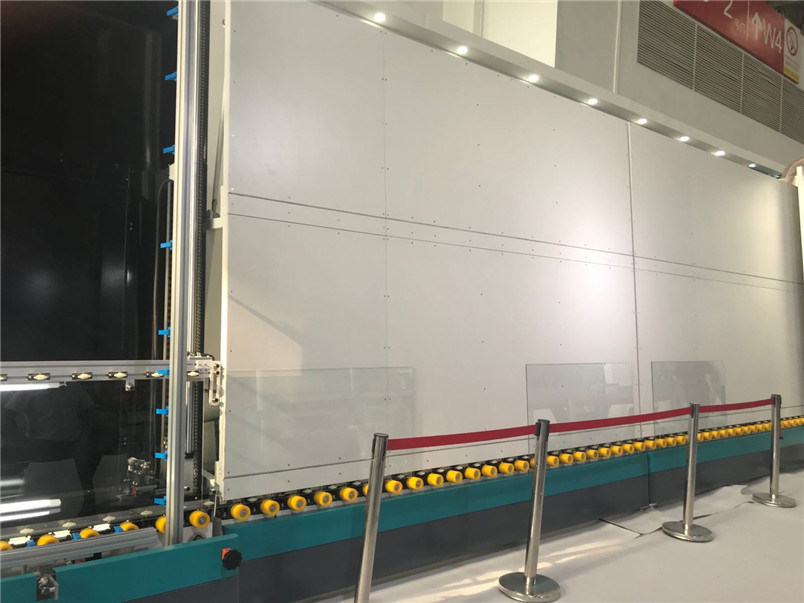

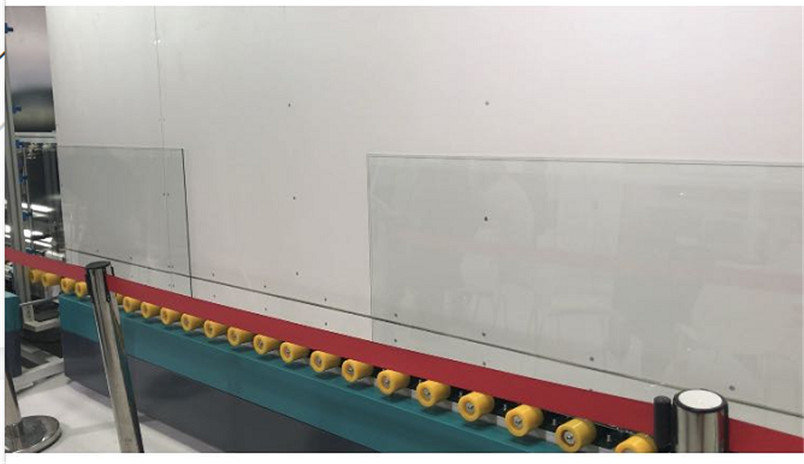

Pressing section :

Main feature:

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Pressing board with adjustable structure to guarantee long-lasting service life

Technical data :
