Product Details:
|
| Name: | Automatic Horizontal Glass Washing Machine | Advantage: | Easy Operate |
|---|---|---|---|
| Material: | Stainless Steel Touching Water Part | ||
| High Light: | 400mm×400mm Horizontal Glass Washing Machine,3mm Horizontal Glass Washing Machine,25mm Horizontal Glass Washing and Dryer Machine |
||

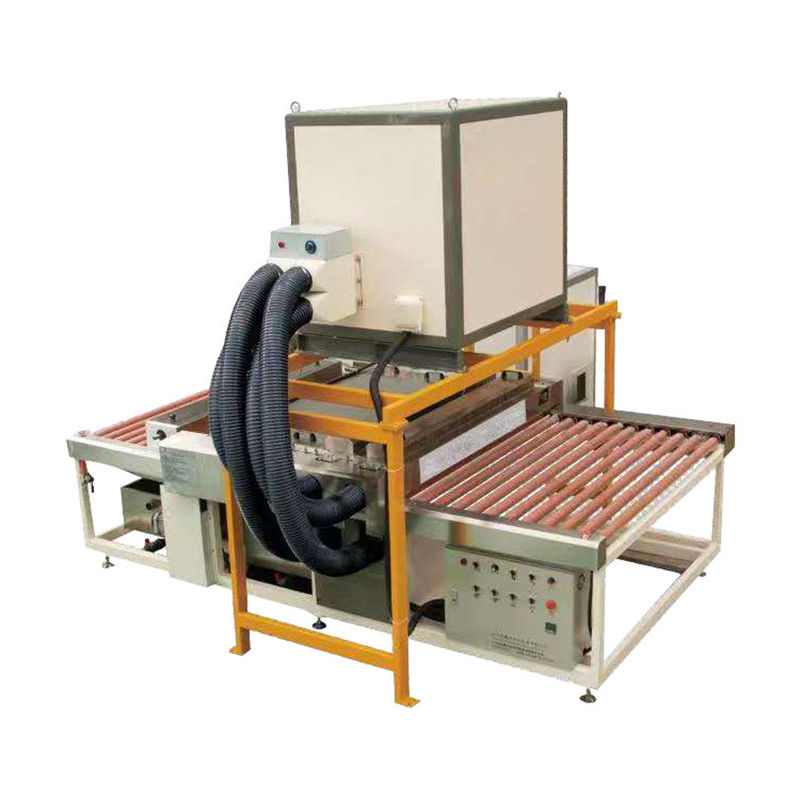

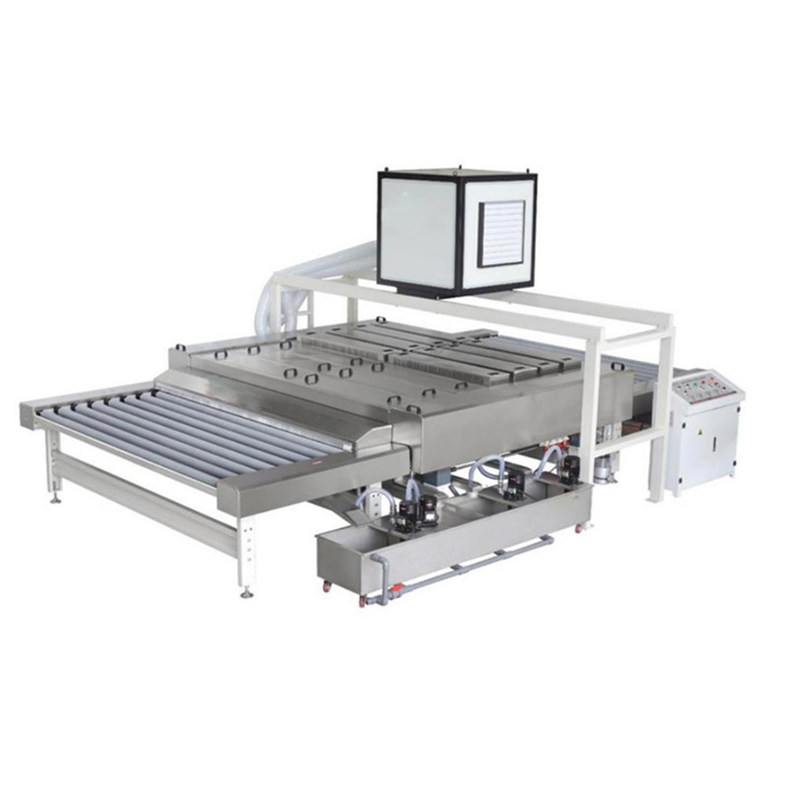

Automatic Horizontal Glass Washing Machine With Soft Low E Brushes Automatic Horizontal Glass Washing Machine for washing and drying the upper and lower surfaces of ordinary plate glass and high quality Low-e glass.
Horizontal Glass Washing and Dryer Machine is composed of incoming segent ,cleaning air-drying segment and out going segment.
1. Three pairs of brushes (Ø150mm) stainless steel shaft construction (low-e glass, regular coated glass, and sunshine coated glass can be cleaned without damaging the coated surface).
2.Aluminum alloy assembly structure, no scrap concept, permanent use,High efficiency, energy saving 70% efficiency;
3. The remaining sheet metal parts are sprayed with advanced machinery
Paint or powder;
3. Rubber rollers are made of vulcanized rubber with stainless steel shaft.
4. The cleaning part that comes in contact with water is made of stainless steel.
5. Cleaning department, lift of the whole wind staff, maximum lift: 350mm, easy to clean and maintain.
6. Mechanical button control, washing machine digital display, easy to operate, easy to operate, easy to maintain.
7. Two sets of special stainless steel aluminum alloy air knife configuration, strong wind, excellent air drying effect, with heating system (with temperature control, optional opening and closing).
8. The fan is equipped with an air filter in the air inlet chamber, which has a large amount of air and has a good air drying effect. The entire fan box is installed at the top of the workshop and has an air filter screen on the side for easy inspection. And cleaning;
9. Gear transmission, frequency control, main drive of digital display, rotation of brush roller in cleaning section are driven by independent belts of upper motor and lower motor respectively, frequency conversion adjustment speed is stable, Achieves highly demanded cleaning of special glass with a long service life;
10. Clean the water tank of the outside washing machine, convenient water tank, change water, check, clean the washing machine.
11. PLC control, optional with touch screen display. Convenient for operator operation and maintenance, it can be connected to all manufacturers of edge grinders without gaps. (Please purchase separately if necessary)
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Glass thickness: 3mm-25mm (digital display)
3. Minimum glass specifications: 400 mm x 400 mm (limited to one row on the left and right)
4. Velocity range: Glass thickness within 3-25mm Vmax = 1-12m / min
5. Main drive, brush speed adjustment method: Frequency control
6. Table height: 900 ± 25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100mm |
| Weight | 3940kg |
This is Stainless Steel parts showing
Drying section is composed of 2 sets of high-pressure professional air knives.
Glass washer installition
We can offer 1-section washing, 2-section washing, or multi-section washing.
