Product Details:
|
| Name: | Warm Edge | Advantage: | Warm Edge Thchnolgy |
|---|---|---|---|
| Size: | Can Be Request | Usage: | Double Insulating Glass |
| High Light: | Warm Edge Butyl Aluminum Spacer,Insulating Glass Butyl Aluminum Spacer,Double Insulating Glass Butyl Spacer |
||
Hot Sell Warm Edge Thchnolgy Butyl Aluminum Sapcer For Double Glass
Warm Adge Spacer - New Technolty Working with IG Syetem

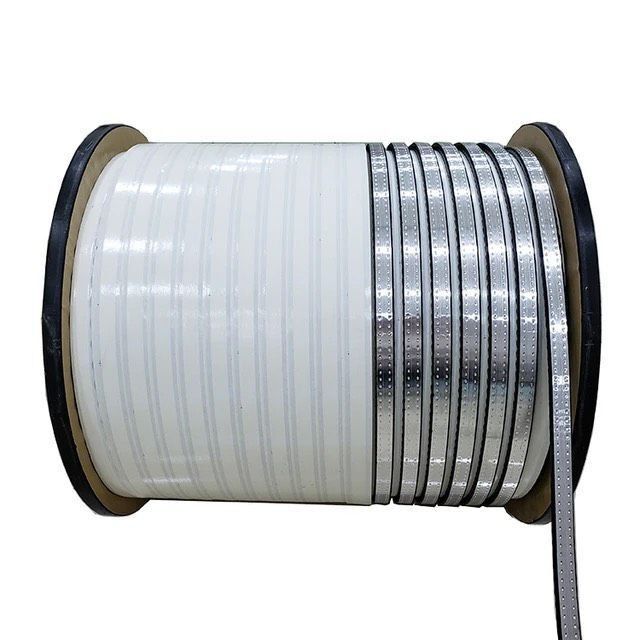

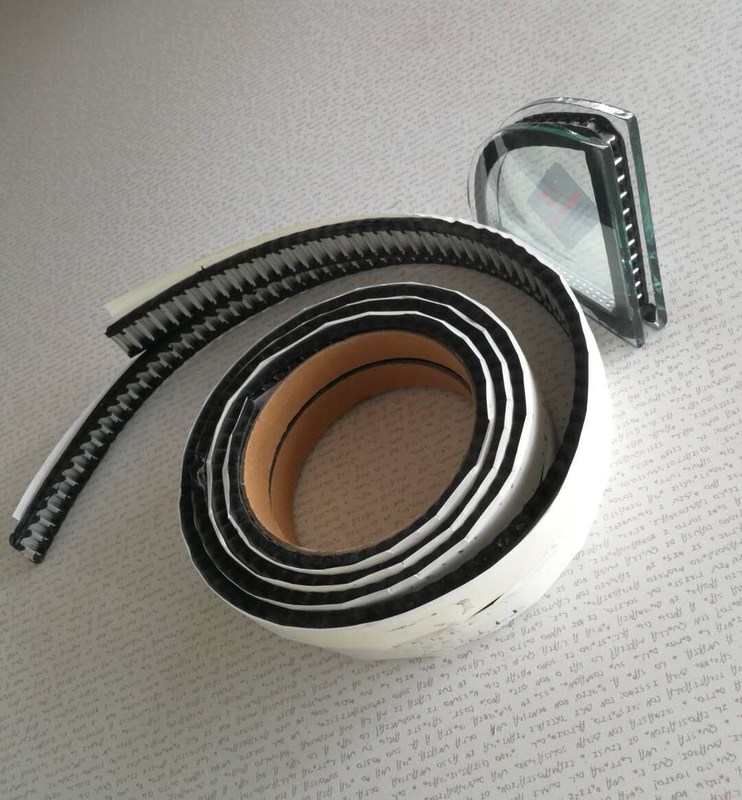

Warm edge spacer of insulating glass

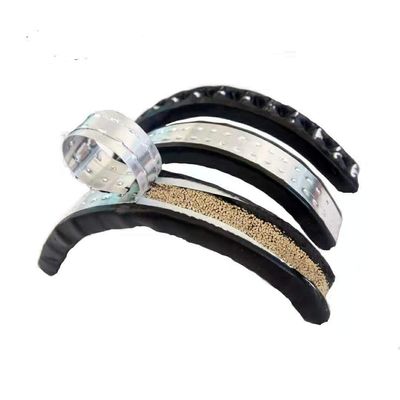

Butyl Spacer is a new product that summarizes the strengths and weaknesses of traditional products and optimizes and improves the product according to market demand. The surface is made of 3003 alloy aluminum strip, internal use of polymer PVC material, 3A molecular sealant, butyl silicone sealant.
Chnspacer is a new product that summarizes the strengths and weaknesses of traditional products and optimizes and improves the product according to market demand. The surface is made of 3003 alloy aluminum strip, internal use of polymer PVC material, 3A molecular sealant, butyl silicone sealant.
Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum
Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.
Advantage:
| Raw material options | |||||
| No. | Material name | Material | producing area | composition | Technical requirements |
| 1 | Inner sealant | Butyl rubber | China | butyl sealant. Calcium powder,polyisobutylene | Q/PHX001-2014 |
| 2 | External sealant | Polymer adhesive | Germany | BASF polyisobutylene,butyl sealant, Calcium | GB/T 19187-2003 |
| 3 | Aluninum strip | 3003 aluminum alloy | China | AL-Mn | GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994 |
| 4 | Aluminum foil film | Aluninum foil film | China | Aluainum foil membrane | GB/T 28118-2011 |
| 5 | Molecular seive | 3A nolecular sieve | China | 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 | GB/T 10504 2017 |
| 6 | heat-insulating film | PVC | China | PVC | GB3830-83 |
Service support
1.24 hours technical supporting by e–mails.
2. 24 hours calling service & online service.
3. Oversea door–to–door service available.
4. User manual and detailed operating video1CD available.
Economic Butyl Extruder machine for Insulating Glass LJJT03
Main feature
-PLC control system, touch screen interface.
・ Frequency control system
・ Overseas technology, pneumatic and hydraulic supercharging system.
-Automatic centering and clamp structure.
-Independent extruder head structure.
-Automatic butyl volume display function.
-Arc butyl seal structure.
・ Extruder head height adjustment structure
・ Preheating function Butyl cylinder swing mechanism
-Imported brands are used for important control parts.
Technical parameter
| Squeeze pressure | 10-14MPa |
| Temperature | 110-140ºC |
| Aluminum spacer width | 6-24mm |
| Speed | 0-27m/min |
| Diameter of butyl cylinder | 190mm |
| Air supply | Flow:0.4m/min |
| Air pressure | ≥ 0.8MPa |
| Total power | 220V 50HZ 2.5KW |
| Dimension |
3000*620*1102mm |
