Product Details:
|
Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm / 19mm |
Insulating Glass Thickness: | 50mm / 60mm | ||
High Light: | 10m/Min Insulating Glass Production Line,40KW Insulating Glass Production Line,PLC insulating glass making equipment |

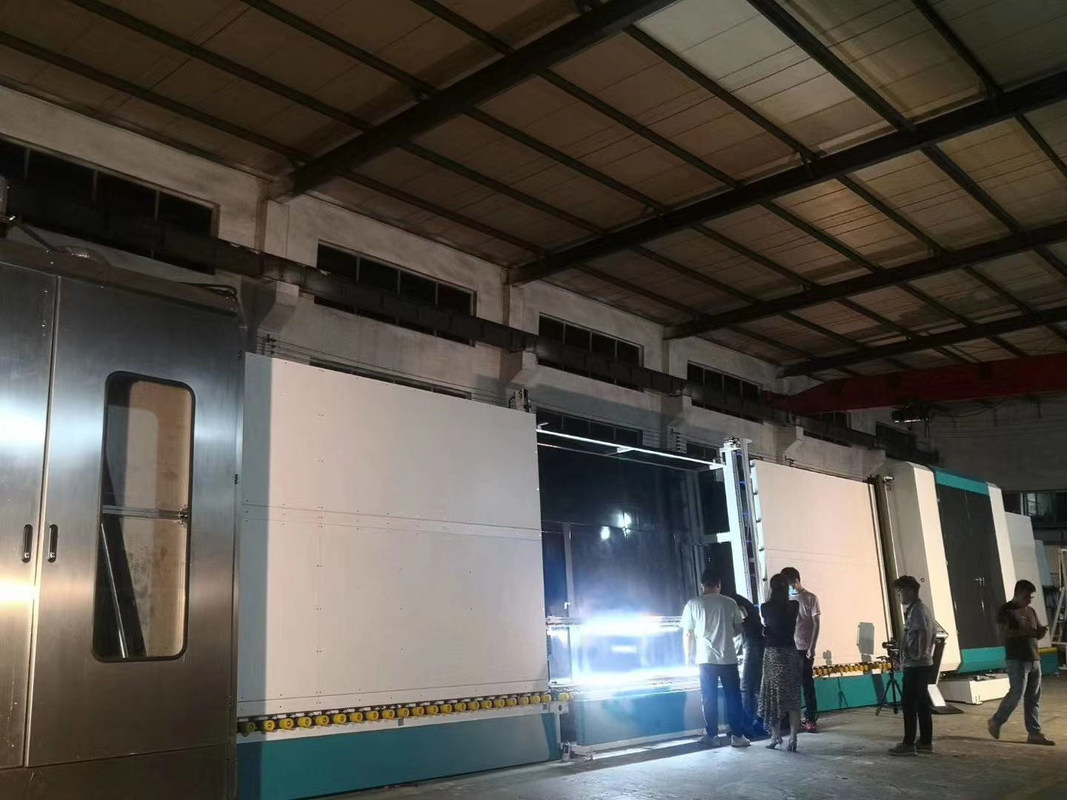

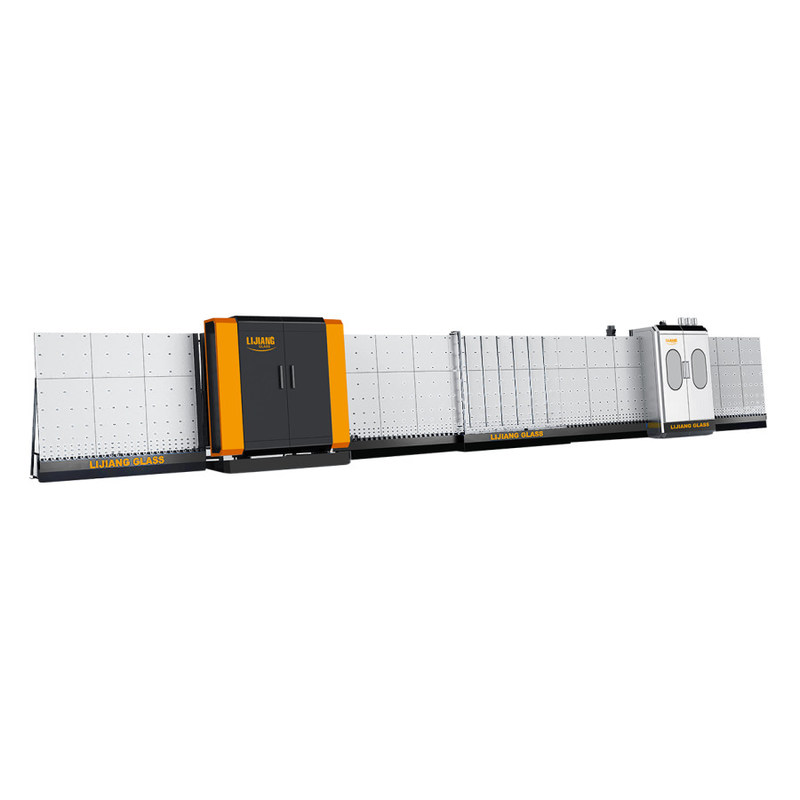

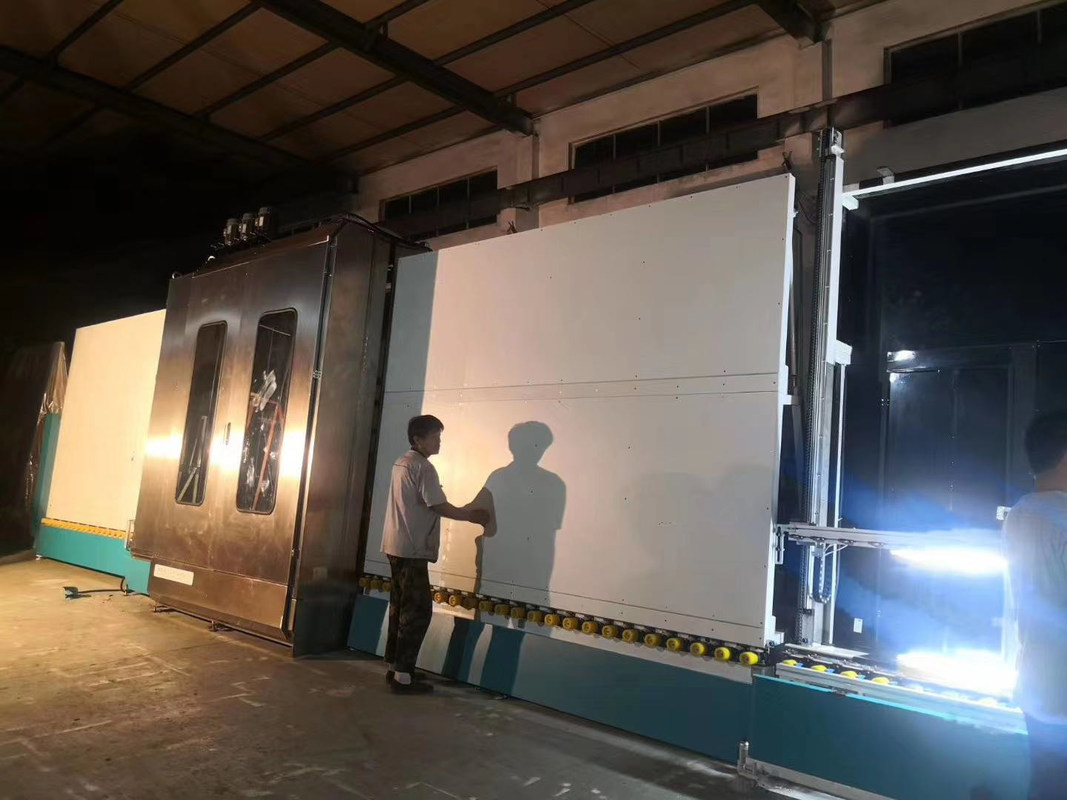

Vertical Insulating Glass Production Line LJBZ2535G
Main Features:
• Adopt SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Automatically adjust the adhesive depth on the digital display
• Use servos to control system, modular and overlay capabilities
• Applicable to the manufacture of stepped IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional)
• Minimum and maximum glass sizes are optional

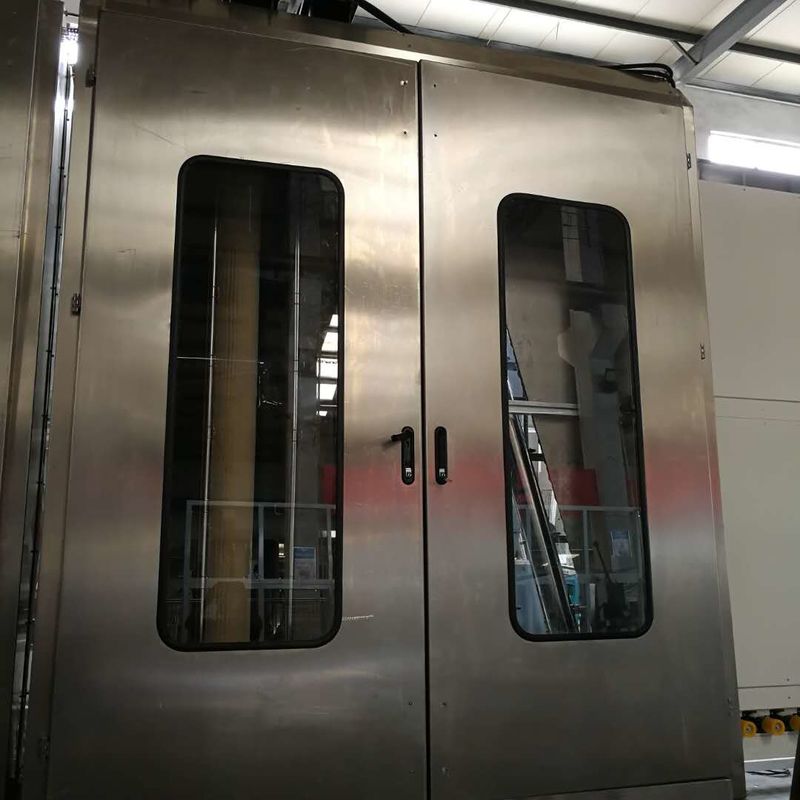

Main feature:

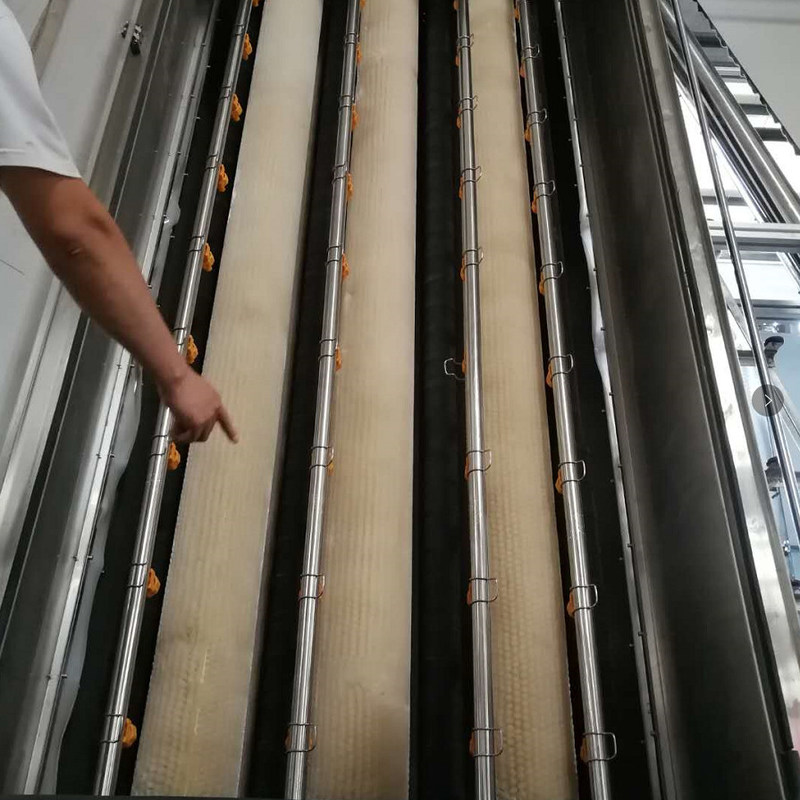

• Use 6 soft brushes
• Cleans online and offline low-e glass and automatically recognizes Low-e film
・ The cleaning part adopts a design with an upper and lower layer structure
• Adopts variable frequency fan, energy efficient and excellent cleaning effect
• The air knife can automatically adjust the width of the air knife according to the thickness
• Use intelligent intermittent energy-saving work methods
• Hierarchical cleaning system
• Automatic temperature control of water tank, water supply system
• European silencer system
• 304 stainless steel material
Main feature:
• Ultra-long insulating glass can be compressed with second times
• The machine adopts servo torque to pressing glass
• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet
• Equipped with a precisely adjustable front platen mechanism
• The system can diagnose fault information
• The pressing plate can be opened to 400mm width for easy maintenance
• Applicable to produce four-side step IG, triple IG and shaped IG
• Automatically fills the argon gas in the press plate with the correct gas concentration
• When filling molded IG, the rectangular size inflatable front must be 450mm (length) and 280mm (height).
• No need to drill holes in the spacer frame
• Standard gas is argon gas
• Fast reaction sensor for permanent control of gas filling process
• Automatically set gas data and display the data on the screen
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Jinan Lijiang Automation Equipment Co., Ltd. is located in beautiful spring
City ------ Jinan. A company that integrates research and development, sales, and services of glass processing equipment. Transportation is very convenient as it is close to the Beijing-Shanghai high-speed railway.
The company is working to build high-end double glazing machinery and equipment by learning from well-known experts, establishing R & D centers, cooperating with well-known domestic and foreign companies, and importing advanced technology. I will. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we have worked with well-known domestic research institutes such as Northern China Industrial Group and Shandong University to constantly improve the level of technical research. So far, we have independently manufactured vertical automatic IG production lines with online filling gas, vertical IG sealing robots, automatic spacer bending machines, automatic desiccant filling machines, and new fully automatic butyl extruders. And quality has reached the highest level in China.
With the rapid development of the double glazing industry, Lijiang looks forward to working with you in a mutually beneficial situation and jointly creating a new world.
