Product Details:
|
Machine Name: | Insulating Glass Line | Color: | Write / Green / Red And So On |
---|---|---|---|
Max Glass Size: | 2500 Mm*3500 Mm | Glass Thickness: | 3 - 15 Mm |
IG Thickness: | 50 Or 60 Mm | Washing Machine Material: | Stainless Steel |
Machine Length: | 16.7 M Or 19.5 M | Optional Function: | Triple Glass / Step Glass |
Warranty: | 1 Year | Contacts: | Hermione : +86 18353163989 |
High Light: | 3000* 4000 Insulating Glass Line,0.8MPa Insulating Glass Line,40KW glass processing machines |
Insulating Glass Line Making Glass For Buildings And Windows And Doors
LIJIANG's products mainly include:
IG line series;
Sealing robot series;
Low-e film edge deletion machine;
Spacer bending machine series;
Butyl extruder machine series;
Desiccant filling machine;
Auxiliary insulating glass machines.
About 20 products are widely used in customized insulating glass industry, windows and doors, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.

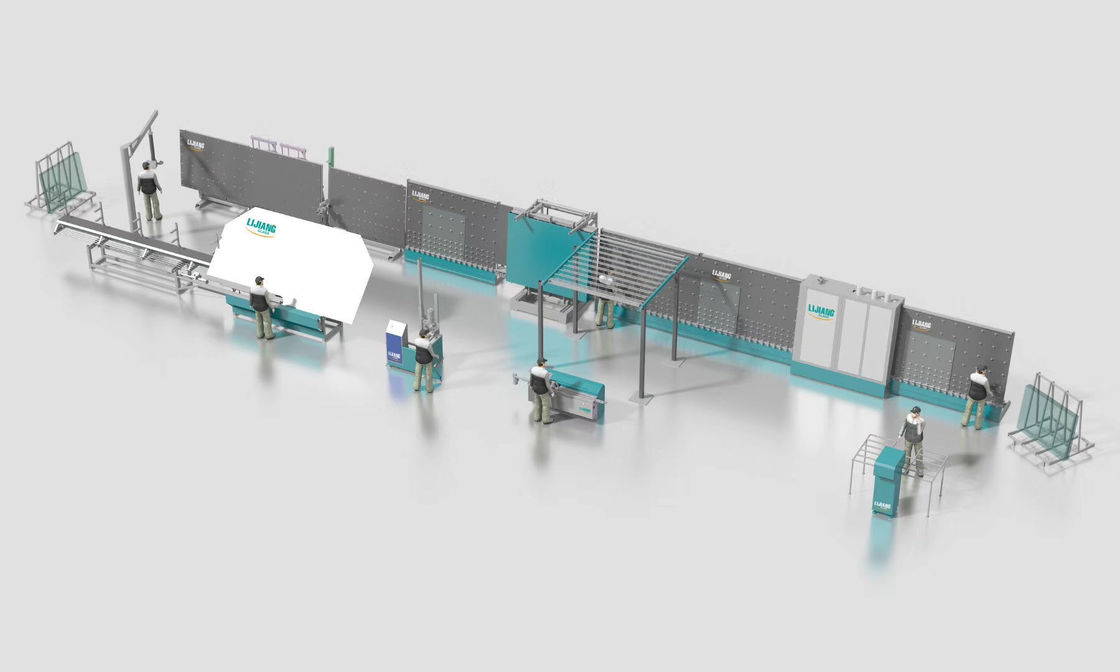

Vertical Insulating Glass Production Line - 2000*2500
IG line series :
Sizes :
2000*2500
2500* 3500
3000* 4000
Functions :
double glazing glass
triple glazing glass
four sides step glazing glass
Special technology :
Shaped glazing glass
Filling argon gas online
Low-e film glazing glass
Making two pieces of IG units in once time
Air floating insulating glass line
Main Features:
• The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Washing machine:
Main feature:
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
Pressing machine :
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
Technical data :
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 50mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Electrical parameters
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Servo motor for step glass | Japan | FUJI |
Photoelectric switch | Germany | SICK |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Brush motor | China | QINGHUA |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |

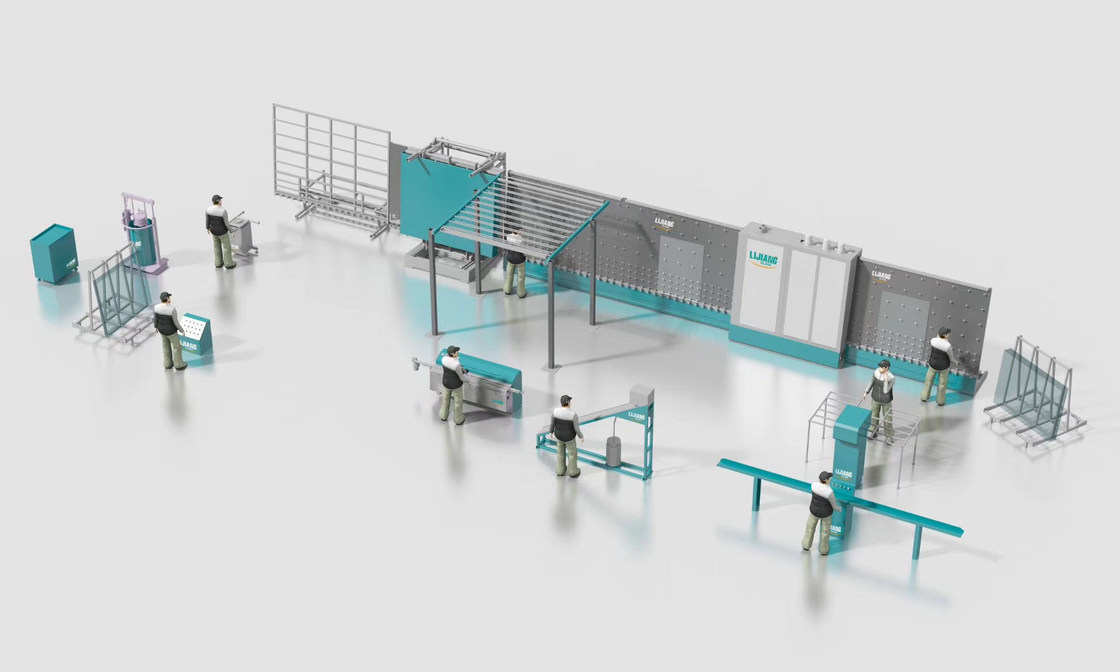

IG line without filling gas online |
