Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue
Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue

Large Image :  Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000 - 70000 per set
Packaging Details: 40HQ container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue

Description
Machine Name: Automatic Sealing Robot Machine Using: Coating Glazed Glass
Max Glass Size: 2500*4000 Glass Thickness: 56 Mm
IG Type: Double / Triple / 4-sides Step Glazing Glass Control: PLC And Servo Motor
Using Glue: Silicone / Polysulfide / Polyurethane Warranty: 1 Year
High Light:

56 mm Glass Sealing Machine

,

2500*4000 Glass Sealing Machine

,

Two Glazing Glass Sealant Extruder

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue



Introduction :

The full automatic insulating

glass sealing robot machine is used to seal the second glues during making insulating glass units. The sealing robot has the same method with coating glass, however, the sealing robot used servo mortor and PLC to control the whole working, it improves working efficiency. The sealing robot can out put  500 - 800 pieces per day in 8 hours.

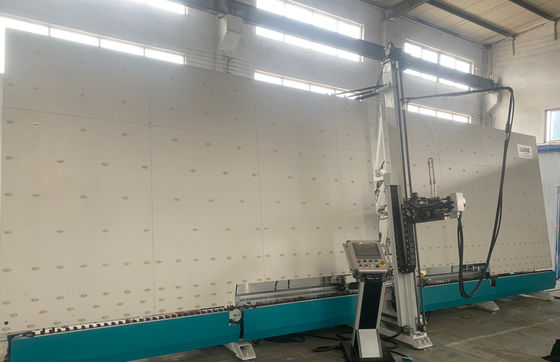

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue 0

Specification :



Model LJTJ2540
Voltage Power 415V 13KW
Air Pressure 0.5~0.7Mpa
Extruding pressure 32Mpa
Max.Glass size 2500*4000
Min.Glass size 400*300mm
Glass thickness 12~56mm
Working speed 5~40m/min
Overall dimension 11000*3600*3500mm



Machine Noise :



A-weighted sound pressure level
Stand-by state Working state
50 db 85 db



Function and feature:

1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)

5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively

7.The smallest insulating glass size can be processed is 300*300mm

8.Equipped anti blocking device in the mixer

9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .

14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly

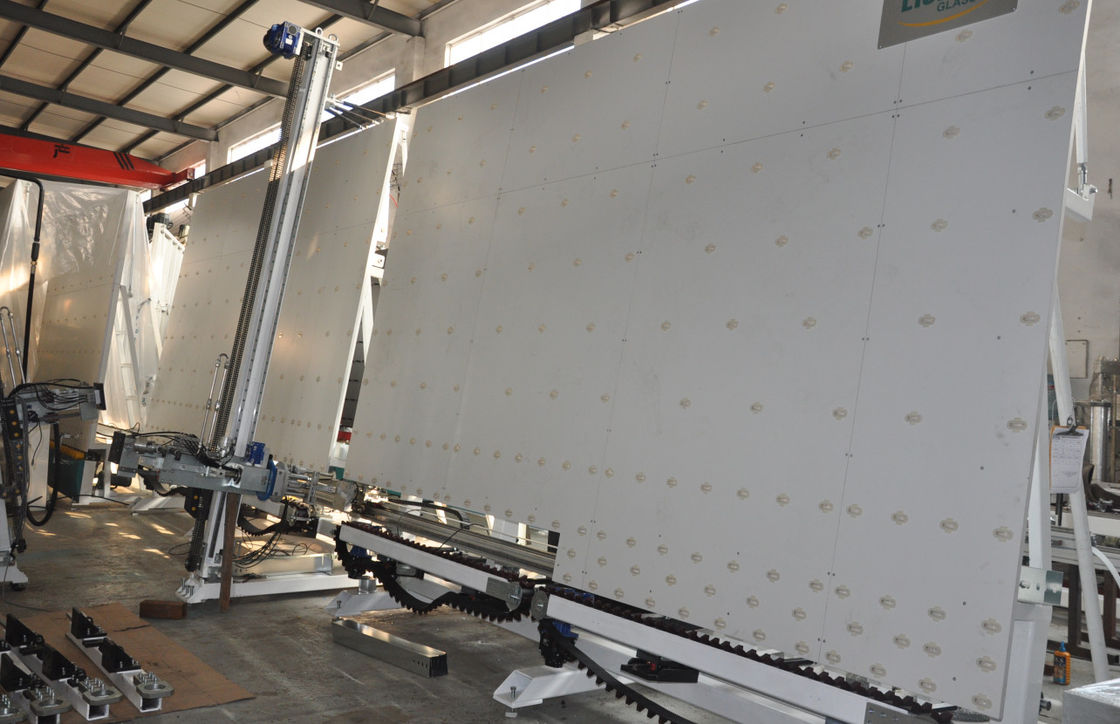

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue 1

Operating notes:

  • Max. glass size (mm):2500(H)*4000(L)
  • Min. glass size (mm):300(H)*400(L)
  • Extruding speed :100mm~500mm/s
  • Extruding depth:5mm~18mm
  • Sealant supply pressure :<35 Mpa (hydraulic pressure<10Mpa ,sealant pressure <35Mpa)
  • Board angle :6°~9°
  • Air pressure :0.6~0.8 Mpa
  • Max glass weight :300kg
  • Glass specification :(4+6+4)mm~(12+25+12)mm
  • Extruding sealant must under the condition that the glass edge is smooth and without dislocation of the insulating glass ,there are many sensors on the machine ,it require unrelated persons do not near the machine so as to avoid malfunction and cause damage of the machine or threaten the personal safety .
  • It need to open the timing sealant discharge function if it need long time (more than 5 minutes )to extrude sealant to the second glass so as to avoid blocking the mixer
  • Check the parameters carefully before extruding sealant ,change the parameter of glass size ,glass thickness etc timely when change the glass batch.
  • It need to change the sealant amount if use different sealant as the viscosity maybe different

When start working ,it need to wait the hydraulic pressure is stable ,then start extruding sealant on the first glass so as to avoid sealant output not stable.

Double Glazing Glass Sealing Machine With Two Sealants Pumps Coating Glue 2
