Product Details:
|
| Machine Name: | Gun Freezer | Using: | Storage Sealing Gun |
|---|---|---|---|
| Machine Type: | New | Warranty: | 1 Year |
| Brand: | LIJIANG GLASS | ||
| High Light: | Insulating Glass Sealants Gun Freezer,40L Glass Sealants Gun Freezer,Insulating Glass Sealants Gun Freezer |
||

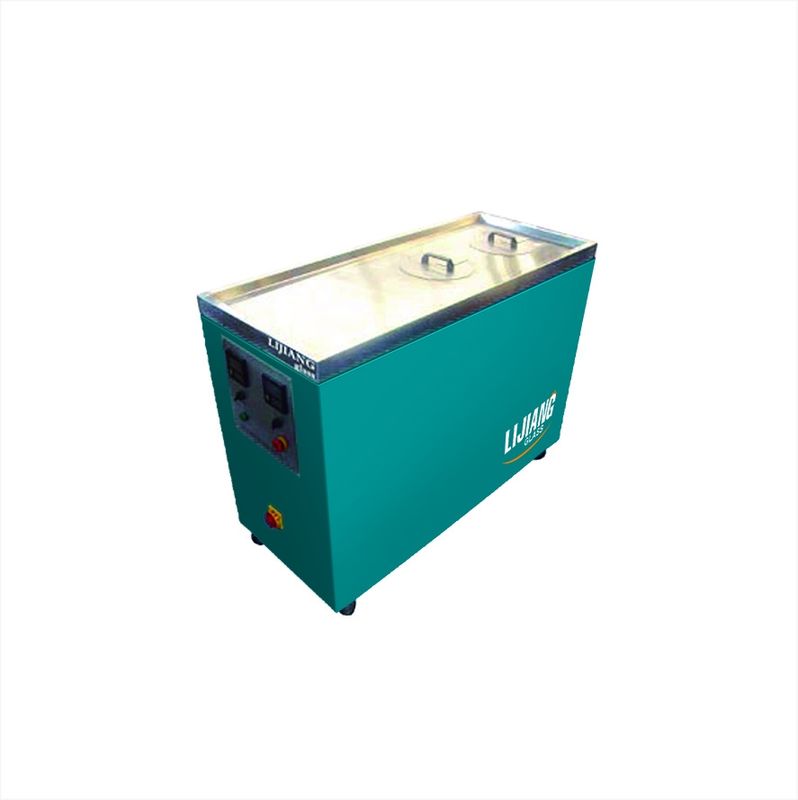

New Type Easy Insulating Glass Sealants Gun Freezer With High Temperature
1. Application

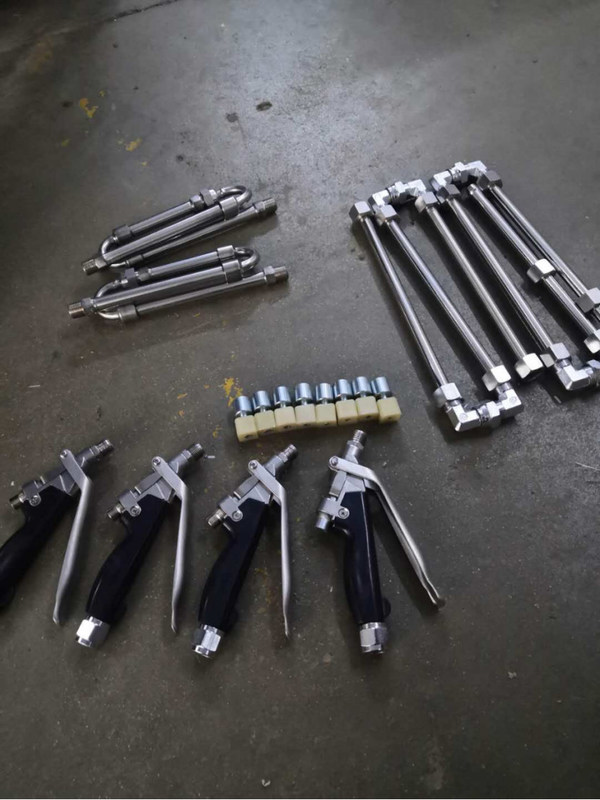

LJLX01 Freezer is used for short time refrigerating and heating the spreading gun of Sealant spreading machine, while you don’t need to wash and clear the spreading gun. The use of machine can reduce the waste of sealant for clean the gun, reduce the production cost, and greatly increase the work efficiency.
LJLX01 Freezer is one of the accessory machines for Sealant spreading machine to produce Insulating Glass. It has the following features: cover small floor area, easy to move, reliability, easy service, and so on.
2．Parameter
| Power | Voltage(V) | 380 |
| Frequency(Hz) | 50 | |
| Total Power | kW | 3.8 |
| Max. Heating Temperature | ℃ | 70 |
| Max. Refrigerating Temperature | ℃ | -40 |
| Weight | kg | ≈100 |
| Dimension | L×W×H(mm) | 1400×600×1000 |
| Capacity | L | 40 |
3. Technical Instruction
3.1 The Freezer adopts the most advanced America Refrigerating system, the core component (scroll compressor) of which is with the features of high efficiency, low noise, high reliability, and so on. The operator can adjust the work parameter at any time, and the temperature status of cold and hot barrel is showed clear on the screen.
3.2 Structural Feature and Function
The LJLX01 Freezer is comprised of stander, refrigerating unit, refrigerating barrel,
heating barrel, electric control system and so on.
3.2.1 The refrigerating of antifreeze is completed by the combination of refrigerating unit and refrigerating barrel.
There is a commercial so called refrigerant in the storage tank of compressor unit, it is colorless gas in normal temperature, but under the pressure of itself, it is colorless liquid. The compressor compresses the refrigerant with high pressure when it is in gas status, then; it comes through the condenser and releases heat by means of cooling fin, at last, condensed to liquid status. Due to the liquid refrigerant losses the pressure from condenser after it passes through the capacity tube, it becomes gaseous immediately when it comes through the evaporator on the outside of refrigerating barrel. As liquid will lower temperature when it becomes gaseous, at the same time, absorbs the latent heat from the anti-freeze in the barrel, thereby, low the refrigerant’s temperature. Then, the gaseous refrigerant in the evaporator will be forced back to condenser by compressor and becomes liquid. This cycle repeats again and again to take away the heat of anti-freeze.
The refrigerant in the refrigerating barrel is the combination of glycol and water, the mixing ratio is 1:1. After put the spreading gun in the barrel, the water level should be 2 to 3 cm lower the bung.
3.2.2The heating barrel is heated through outside ektexine by two heaters, in order to increase the temperature of inside water. The water level is the same as refrigerating barrel’s.
3.2.3The control part in panel consists of temperature controller and switch. It adopts digital temperature controller, which can switch on or off at any time and adjust the temperature of cold and hot barrel.
4．Electric System
Please refer to the Electric System and Connection Diagram.
5．Installation Environment
5.1 Power supply:AC380V±10V 3P+N+PE 50Hz
5.2Environment Temperature:15～35℃
5.3 Site Requirement:Clean, no dust, land levelling.
