DGU Double Glazing Glass Processing Machine 1000 Pieces Output

DGU Double Glazing Glass Processing Machine 1000 Pieces Output
DGU Double Glazing Glass Processing Machine 1000 Pieces Output DGU Double Glazing Glass Processing Machine 1000 Pieces Output

Large Image :  DGU Double Glazing Glass Processing Machine 1000 Pieces Output

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZB2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 50000 - 110000 per set
Packaging Details: Containers
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

DGU Double Glazing Glass Processing Machine 1000 Pieces Output

Description
Machine Name: Vertical IG Line Washing Machine: Stainless Steel
Pressing Machine: Adjustable Max Glass Size: 2500*3500
Min Glass Size: 280*400 Warranty: 1 Year
Highlight:

Double Glazing Glass Processing Machine

,

DGU Glass Processing Machine

,

DGU Double Glazing Equipment

1000 pieces output vertical double glazing glass processing machine



LJBZ2500PG Vertical insulating glass production line has the following functions: Washing glass, Installing aluminum frame, Pressing normal IG units, Pressing double IG units, Pressing double three-layers IG units.

LJBZ2500PG is a special equipment in the production of insulating glass with aluminum strip, which has so many advantages, such as small footprint, high efficiency, reliable performance, convenient maintenance and so on.



Main parameters

Power supply Voltage 380
Frequency 60
Total power kW ≈42
Washing speed m/min 2~10
Max.working speed m/min 45
Min.glass size mm 450×280
Max.glass size mm 2500×3200 2500×3500(Second pressing)
Washing glass thickness mm 3~15
Max.insulating glass thickness mm 60
Conveyor height mm 500
Weight kg ≈8000
Dimension L*W*H(mm) 26850×3500×3700



This machine adopts Siemens control system, equipped with high resolution touch screen, the operator can modify the working parameters of the production line at any time, and can clearly display the status of each input and output signal, which is convenient for the routine maintenance of the machine.

  • LJBZ2500PG Loading section
  • LJBZ2500PG Washing&drying section
  • LJBZ2500PG Convey section 1
  • LJBZ2500PG Convey section 2
  • LJBZ2500PG Inspection and frame installation section
  • LJBZ2500PG Flat press loading section
  • LJBZ2500PG Glass pressing and filling gas section

LJBZ2500PG Unloading section.

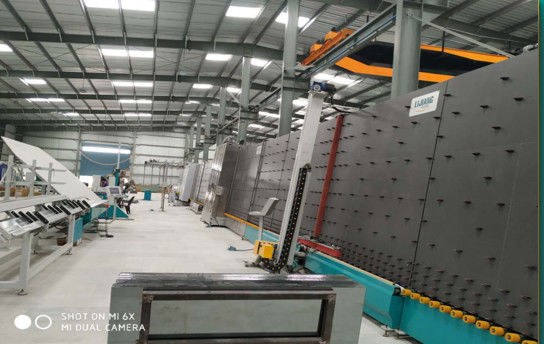

DGU Double Glazing Glass Processing Machine 1000 Pieces Output 0

LJBZ2500PG Glass pressing and filling gas section is suitable for pressing double IG units or three-layer IG units at the same time. All kinds of flat glass (including coated glass and glass-clamped glass) can be pressed by this machine.

LJBZ2500PG is a pressing machine with a new filling gas technology. This equipment is suitable for high and new technology glass pressing and filling gas machine with various gases or mixed gases. Because the control system detects preset types of gases (including mixing ratio of mixed gases) and flow rate before each gas or mixture is filled with insulating glass.

LJBZ2500PG is not suitable for bow glass or twisted glass because the plane inside the pressing section is immutable.

LJBZ2500PG can be used to measure the gas concentration of insulating glass on line. The measuring device in front of the equipment can accurately measure the size and thickness of the glass and calculate the amount of gas needed.

LJBZ2500PG can press and fill gas into two pieces of IG units whose length is less than 1.5m at the same time, which greatly improve the production efficiency, especially for the glass whose length is less than 1.5m.

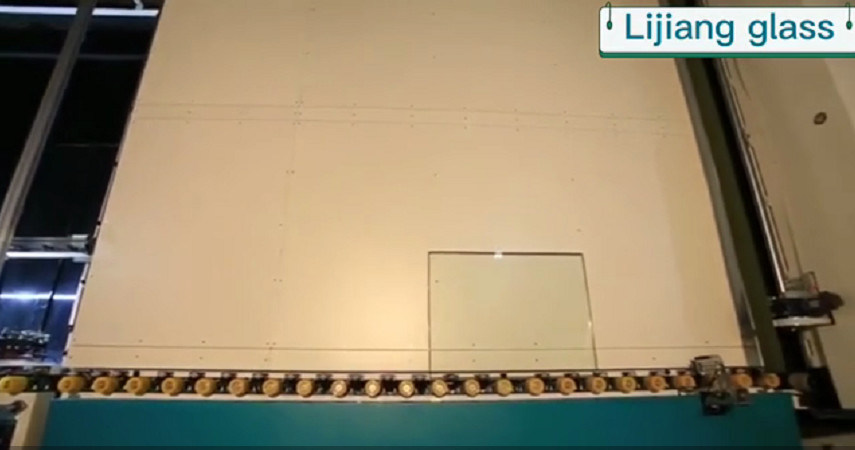

DGU Double Glazing Glass Processing Machine 1000 Pieces Output 1



Main Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed



Technical data



Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg
