Double Glass Production Line Warm Edge Thechnolgy Butyl Aluminum Spacer and sealant of IG

Hot Sell Warm Edge Thchnolgy Butyl Aluminum Sapcer For Double Glass

Warm Adge Spacer - New Technolty Working with  IG Syetem

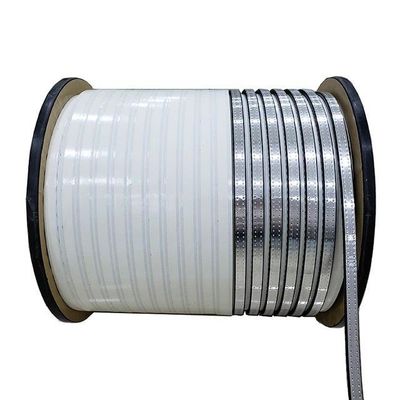

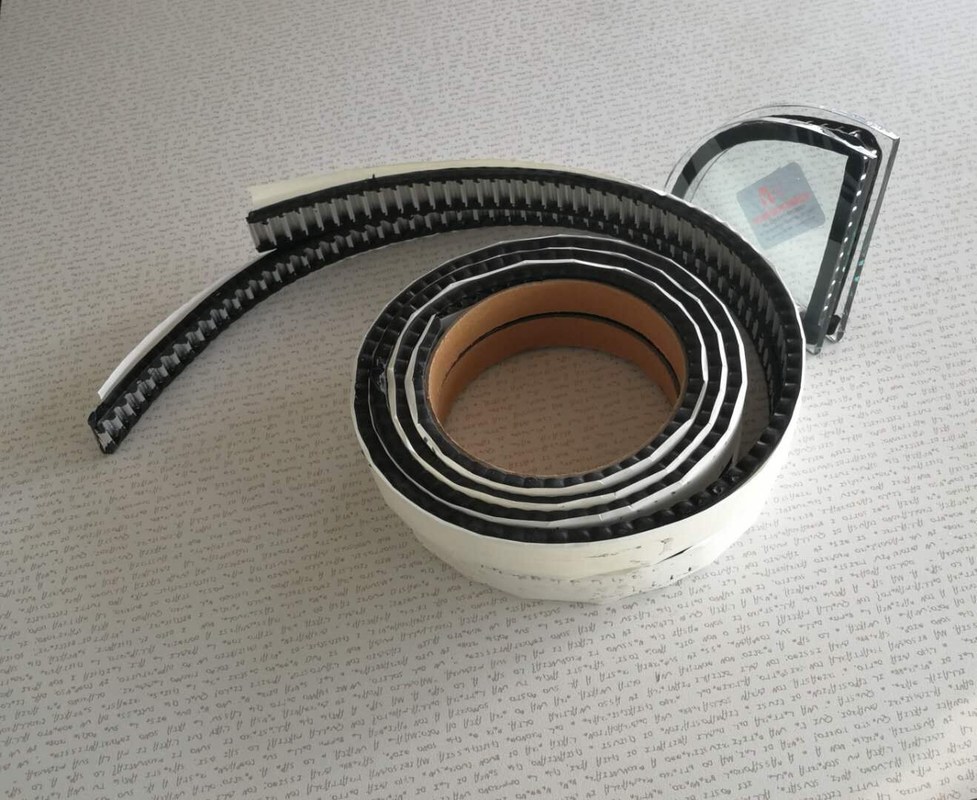

Warm edge spacer of insulating glass

Butyl Spacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.

Chnspacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.

Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum

Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.

Advantage:

• Better sealing:Material butyl rubber come from Germany for good sealing result.
• Better water vapor barrier: Extra long water vapor barrier, it prevent the water vapor to coming into glass from outside.Extra glass life and window and door life.
• Better production efficiency , can process various shapes of insulating glass.
• Good air tightness : Polymer binder prevent water vapor to permeating. Good anti–high temperature perfermance.
• Good resistance to low temperature. Good anti–aging performance.

​

Service support

1.24 hours technical supporting by e–mails.

2. 24 hours calling service & online service.

3. Oversea door–to–door service available.

4. User manual and detailed operating video1CD available.

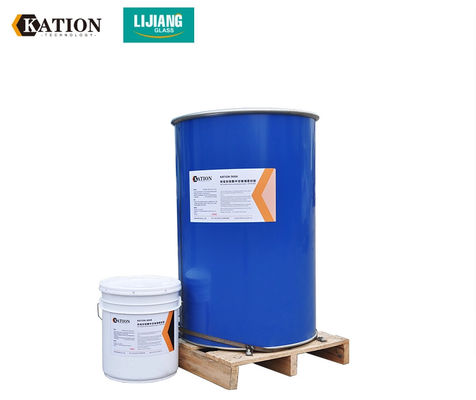

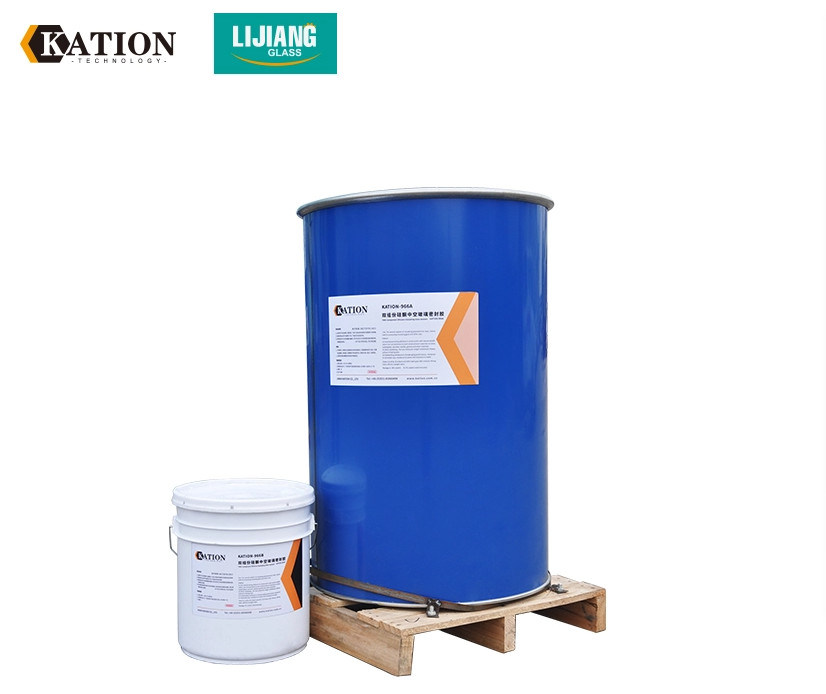

nsulating glass silicone structural sealant

Product Description

Insulating glass silicone structural sealant is a two part, neutral, high modulus, room temperature cure structural silicone sealant; It is specially designed as a secondary seal in dual sealed insulation glass system for curtain wall, building façade; Structural adhesion of glass and aluminum cladding panel curtain wall, skylight and other metal structure.

Product Features - two part insulating glass silicone structural sealant

• Outstanding strength, high elasticity
• Great mechanical properties
• Excellent adhesion to a wide variety of unprimed construction materials
• Eco friendly
• It forms a tough elastic rubber that is weatherproof, UV resistant, Ozone resistant and water tight etc.

• Product Colors

• Part A: White
• Part B (catalyst): Black
• It can be applied only after Part A and Part B are well mixed at ratio 10:1(by volume) or 15:1(by weight), the color of the mixture is black

• Primary Applications

• Used as the secondary seal in insulating glass system for curtain wall, building façade etc.
• Structural adhesion of glass and aluminum cladding panel curtain wall, skylight and other metal structure
•

• ---

  ---

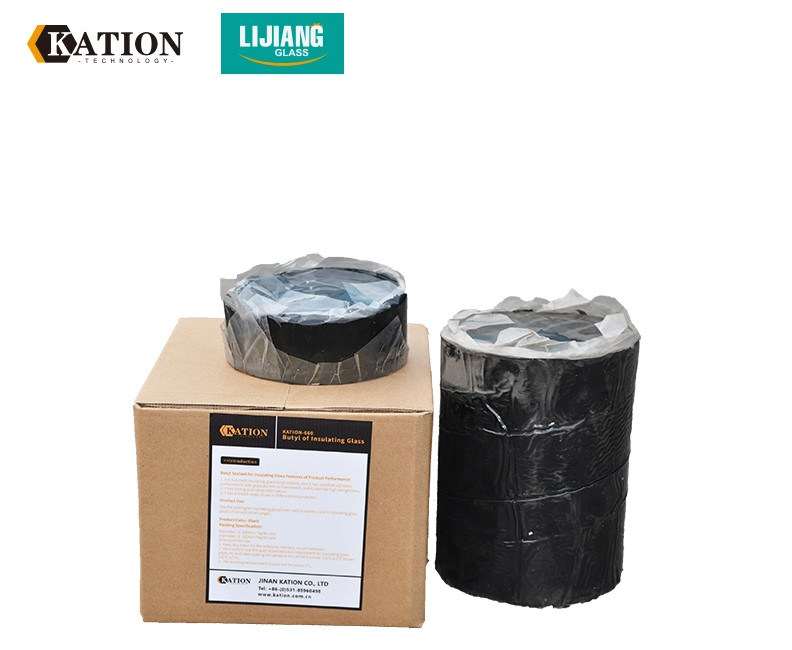

  Butyl Hot Melt Sealant For Insulating Glass

• The raw material is polyisobutylene for insulating glass.

  It is one-part, solvent free. No cracking in a wide temperature range. It has good adhesion to glass, aluminum alloy, zinc plating steel, stainless steel and etc. It can offer an excellent humidity proof system with elasticity.

  1. Appearance: homogeneous black putty.

  2. Odor: odorless.

  3. Density: 1.06g-1.29g/cm3

  4. Suitable Temperature: -40°C+80°C, keep the surface and edges from cracking and sagging.

  5. Extruding temperature: about 120~150°C.



  Mainly used for primary sealing of insulating glass, glass curtain wall, refrigerator and freezer etc.
