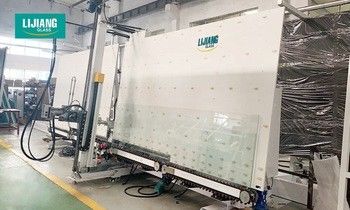

LJTJ2025 Full-Automatic Vertical Insulating Glass Sealing Robot
Sealing robot for insulating glass processing LJTJ2025
►Machine Description
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
► Application
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
►Main technical parameter
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
►►►Sealing head showing
►►►Electrical parts Showing
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.

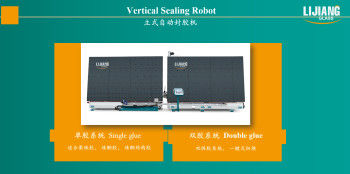

►►►Tow pump syetem( optional )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Insulating glass silicone structural sealant is a two part, neutral, high modulus, room temperature cure structural silicone sealant; It is specially designed as a secondary seal in dual sealed insulation glass system for curtain wall, building façade; Structural adhesion of glass and aluminum cladding panel curtain wall, skylight and other metal structure.
Product Features - two part insulating glass silicone structural sealant
Product Colors
Primary Applications
