Product Details:
|
| Name: | Horizontal Glass Washing Machine With Soft Low E Brushes | Advantage: | Easy Operate |
|---|---|---|---|
| Material: | Stainless Steel Touching Water Part | ||
| High Light: | 2600mm Flat Glass Washing Machine,42KW Flat Glass Washing Machine |
||
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

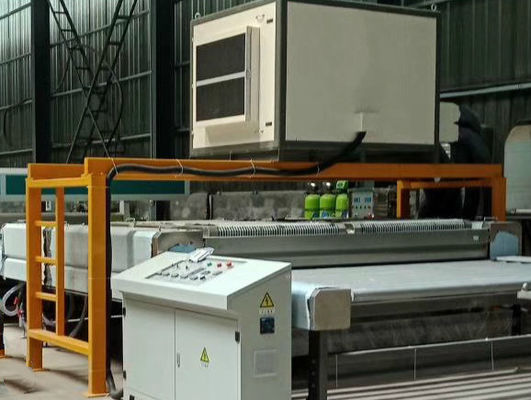

Horizontal Glass Washing Machine with Soft Low e Brushes LJWBQJ2500
Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500
high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical
paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100mm |
| Weight | 3940kg |
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |

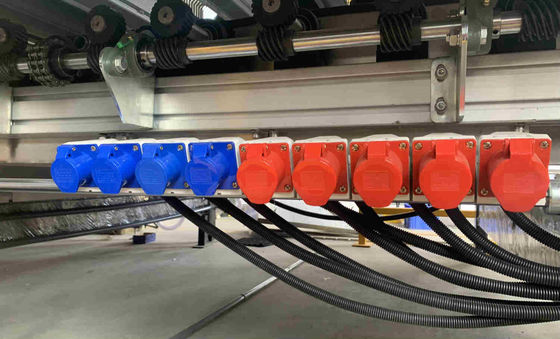

►►►Stainless Steel parts showing

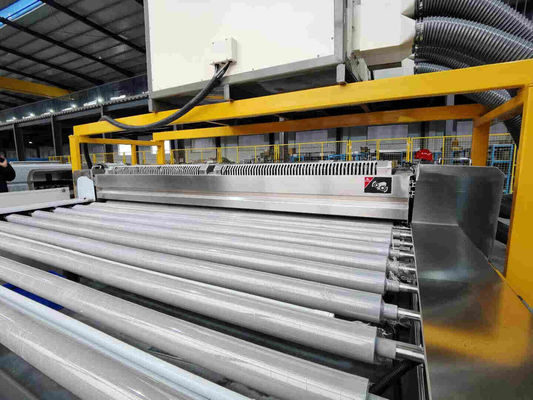

►►►The drying section is composed of 2 sets of high-pressure professional air knives.

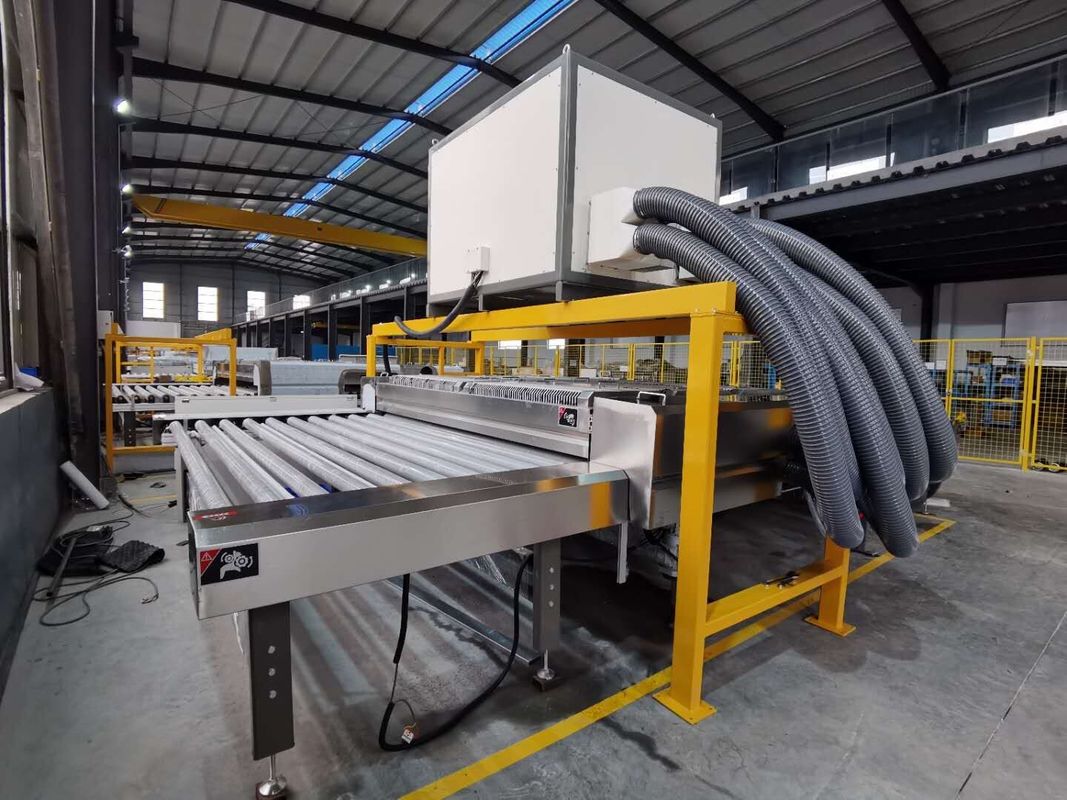

►►►Glass washer installition in workshop
We could supply one section cleaning, two-section cleaning or multi-sections cleaning.
