2500mm Double Glazing Glass Wash Machinery Frequency Control

2500mm Double Glazing Glass Wash Machinery Frequency Control
2500mm Double Glazing Glass Wash Machinery Frequency Control 2500mm Double Glazing Glass Wash Machinery Frequency Control 2500mm Double Glazing Glass Wash Machinery Frequency Control 2500mm Double Glazing Glass Wash Machinery Frequency Control 2500mm Double Glazing Glass Wash Machinery Frequency Control

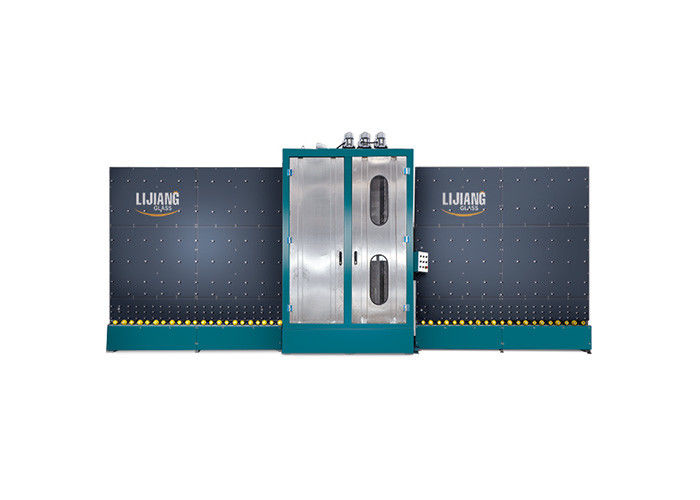

Large Image :  2500mm Double Glazing Glass Wash Machinery Frequency Control

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: CP-2500A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 35000-25000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 25sets

2500mm Double Glazing Glass Wash Machinery Frequency Control

Description
Name: Glass Washing Machine Technical Parameters CP-2500A Maximum Glass Width: 2500mm (effective Maximum: 2650mm)
Minimum Glass Specification: 400mm×400mm (limited To Single Row On Left And Right Sides) Glass Thickness: 3mm-25mm (digital Display)
Speed Range: Glass Thickness Within 3-25mm Vmax=1-12m/min Main Drive, Brush Speed Regulation Method: Frequency Control
High Light:

2500mm Glass Wash Machinery

,

Double Glazing Glass Wash Machinery

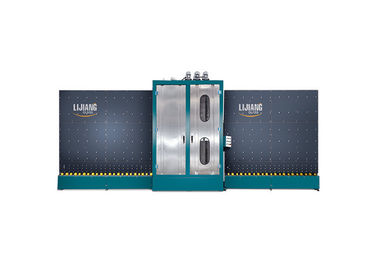

2500mm Double Glazing Glass Wash Machinery Frequency Control 0



Double Glazing Glass Wash Machinery, high efficiency, energy saving 70%;



glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary

plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment

and outgoing segment.

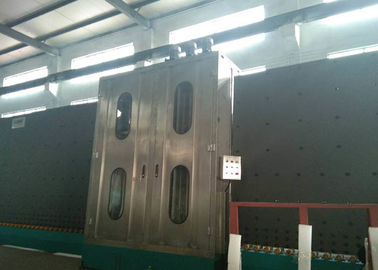

2500mm Double Glazing Glass Wash Machinery Frequency Control 1



Aluminum alloy assembly structure, no scrap, permanent use,

High efficiency, energy saving 70% efficiency;

2. The rest of the sheet metal parts are sprayed on advanced machines

Paint or powder;

3. Rubber rollers are made of vulcanized rubber with a stainless steel shaft;

4. Cleaning parts that come in contact with water are made of stainless steel;

5. Cleaning department, lift of the whole wind staff, maximum lift: 350mm, easy to clean and maintain.

6. 3 sets of brushes (Ø150mm) stainless shaft configuration (low-e glass, regular coating)

Glass and sunshine-coated glass can be cleaned without damaging the coated surface).

7. Two sets of special stainless steel aluminum alloy air knife composition, strong wind, good air drying

Effect, with heating system (temperature control device, optional opening and closing);

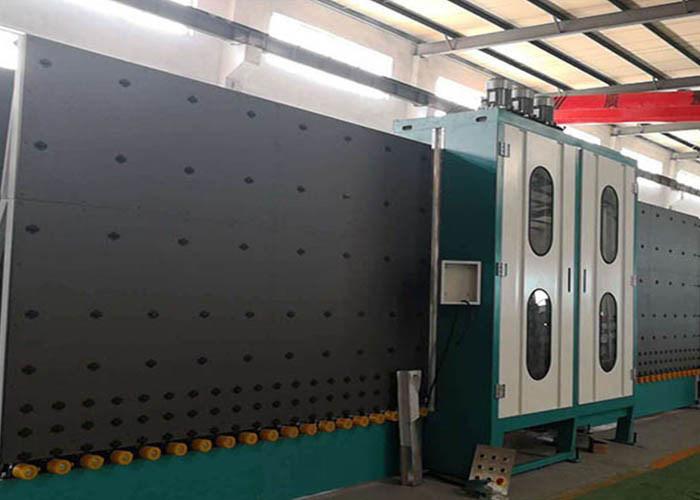

2500mm Double Glazing Glass Wash Machinery Frequency Control 2

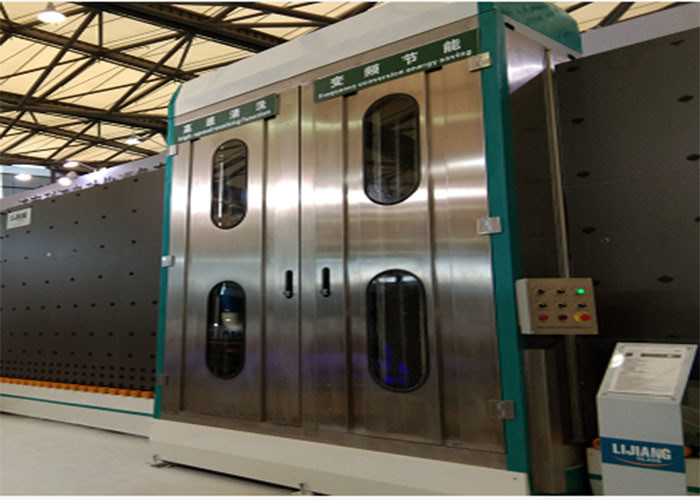

2500mm Double Glazing Glass Wash Machinery Frequency Control 3



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg







Jinan Lijiang Automation Equipment Co., Ltd. is in beautiful spring

City ------ Jinan. A company that integrates research and development of glass processing equipment

Sales and service throughout. Due to its proximity to the Beijing-Shanghai high-speed rail, transportation is very convenient.

Convenient.



The company is committed to building high-end insulated glass machinery and equipment by learning from:

Famous experts, establishment of R & D center, cooperation at home and abroad

Well-known companies, imports of advanced technology, etc. Now our friendly partner is North

Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua, etc.

Famous company. Since the establishment of the company, our products have been exported to Europe,

America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. Same

In time, our company worked with renowned domestic laboratories like North China's industry

We will constantly improve the level of technical research such as groups and Shandong University. So far,

Vertical automatic IG production line using filling gas online, vertical IG ceiling produced individually

Robot, automatic spacer bending machine, automatic desiccant filling machine, new fully automatic

Butyl extruder, its technology and quality have reached the highest level in China.



With the rapid development of the insulated glass industry, LIJIANG looks forward to working with you to benefit both sides.



Create a new world in collaboration with the situation.

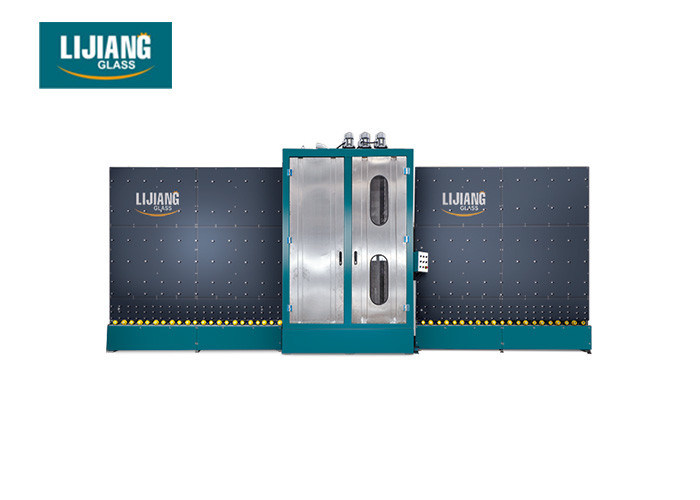

2500mm Double Glazing Glass Wash Machinery Frequency Control 4
