0.8MPa Insulating Glass Production Line Glazed Washing And Dryer

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer
0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 0.8MPa Insulating Glass Production Line Glazed Washing And Dryer

Large Image :  0.8MPa Insulating Glass Production Line Glazed Washing And Dryer

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJLBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 10set/month
Contact Now

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer

Description
Name: Vertical Washing And Drying Machine Material: Stailess Stell Touching Water Part
Advantage: Brush For Low-e Feature: Easy Opration
Highlight:

0.8MPa Insulating Glass Production Line

,

PLC Insulating Glass Production Line

,

Insulating Glass Production Line 0.8MPa

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 0



      LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 1

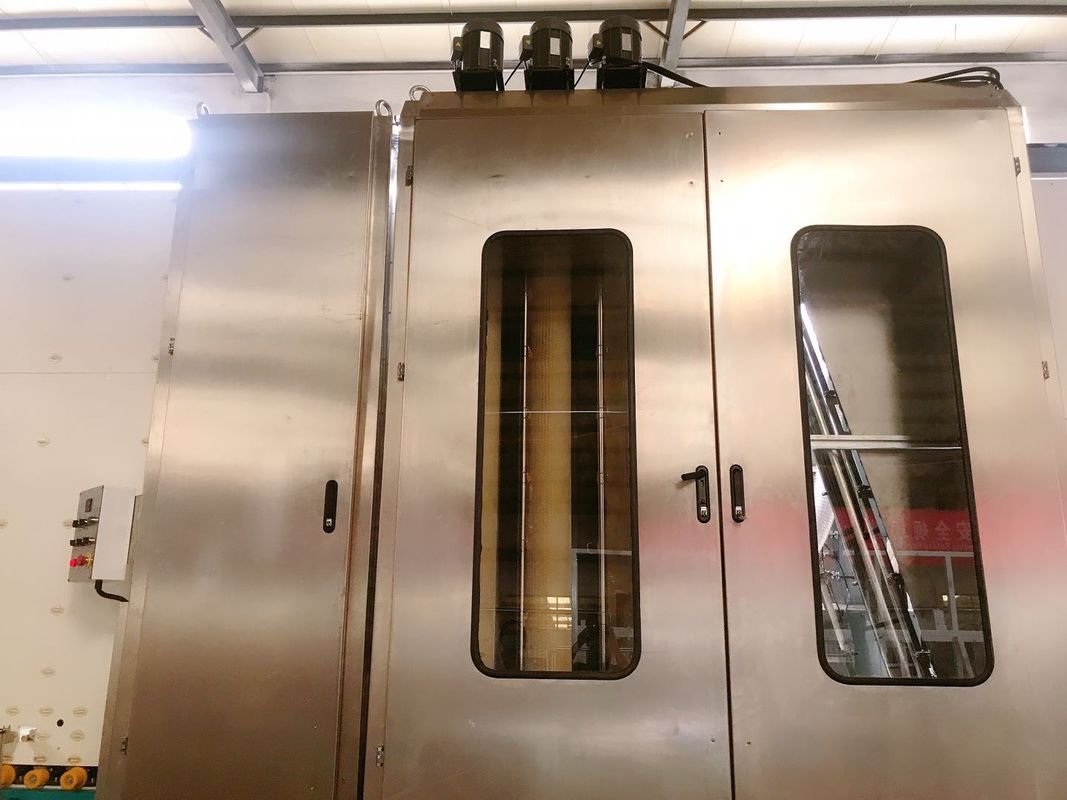

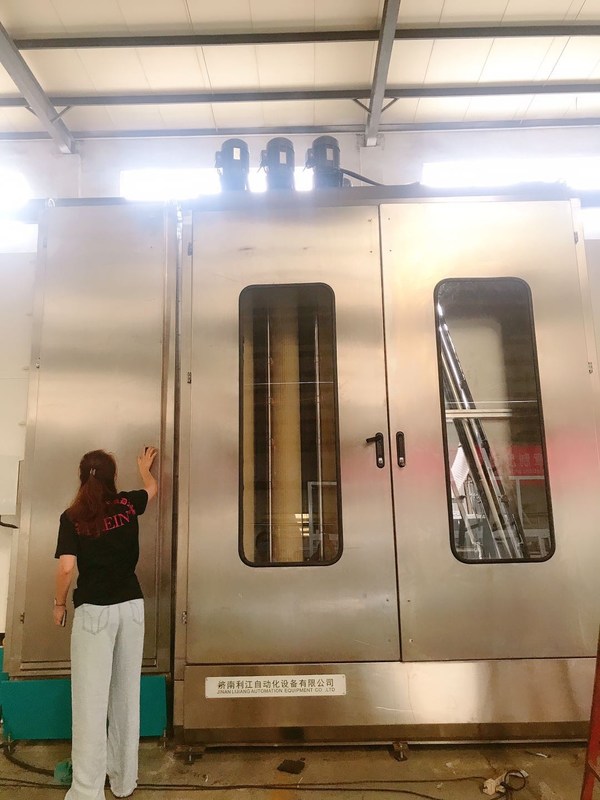

Glass Washing Machine LJLBQJ2500

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 2



Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.
0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 30.8MPa Insulating Glass Production Line Glazed Washing And Dryer 4

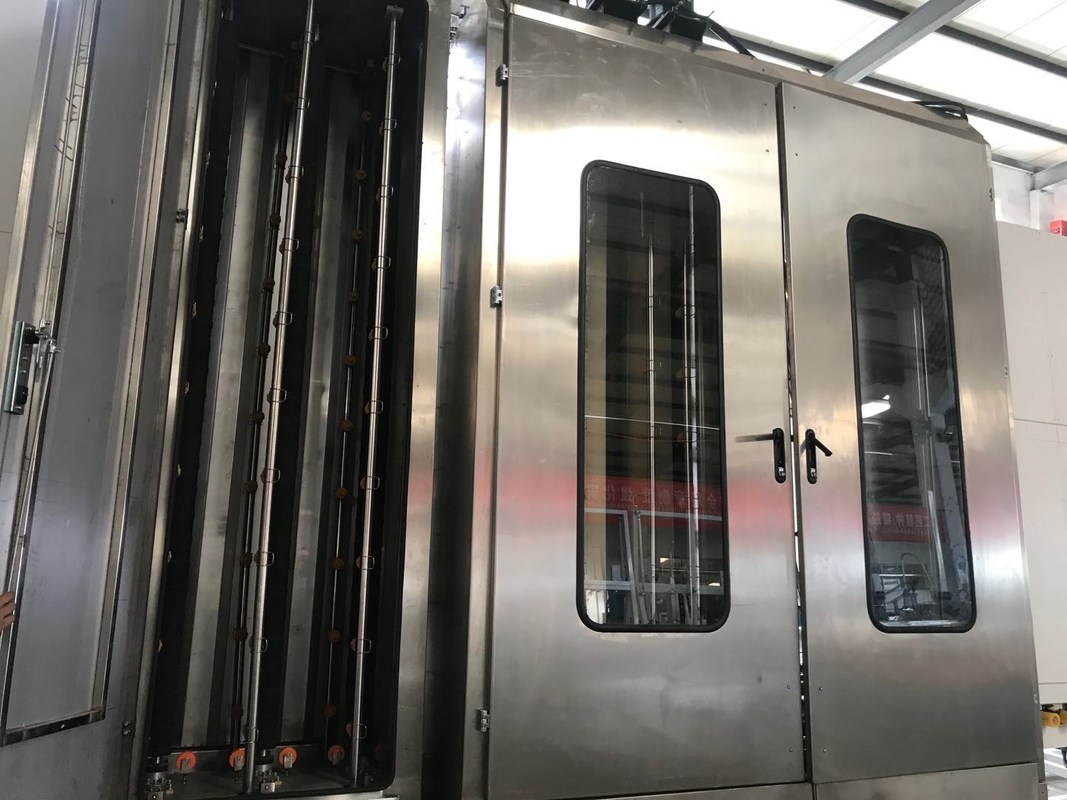

  • In the washing machine, all 3 sets of soft brushes can be washed with low e-glass and 4 sets of water spray.
    The material of the cleaning / drying area is all made of steel.
    The main power consumption is mainly shown in the cleaning and drying section of the IG line.
    The wind blade has a floating design and always keeps the correct and precise distance between the glass and the wind blade in the press and design section.
    Washed Dry Section Transmission Wheels: All front and rear transmission wheels are moving and all are actively moving. Ensure that the glass passes smoothly regardless of the size of the glass.
    The brush shaft and bearings are made of steel, all of which clean the machine well and can be used for a long time.
    The dryer uses sound insulation design to reduce noise.

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 50.8MPa Insulating Glass Production Line Glazed Washing And Dryer 6
►The drying roon system



0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 70.8MPa Insulating Glass Production Line Glazed Washing And Dryer 8

►The water tank system and water heating fuction

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 90.8MPa Insulating Glass Production Line Glazed Washing And Dryer 10

►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.



0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 1



Vertical Insulating Glass Production Line LJBZ2535G

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 12



Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

Technical data

Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
IG line without filling gas online



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online

0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 13



0.8MPa Insulating Glass Production Line Glazed Washing And Dryer 140.8MPa Insulating Glass Production Line Glazed Washing And Dryer 150.8MPa Insulating Glass Production Line Glazed Washing And Dryer 160.8MPa Insulating Glass Production Line Glazed Washing And Dryer 17
