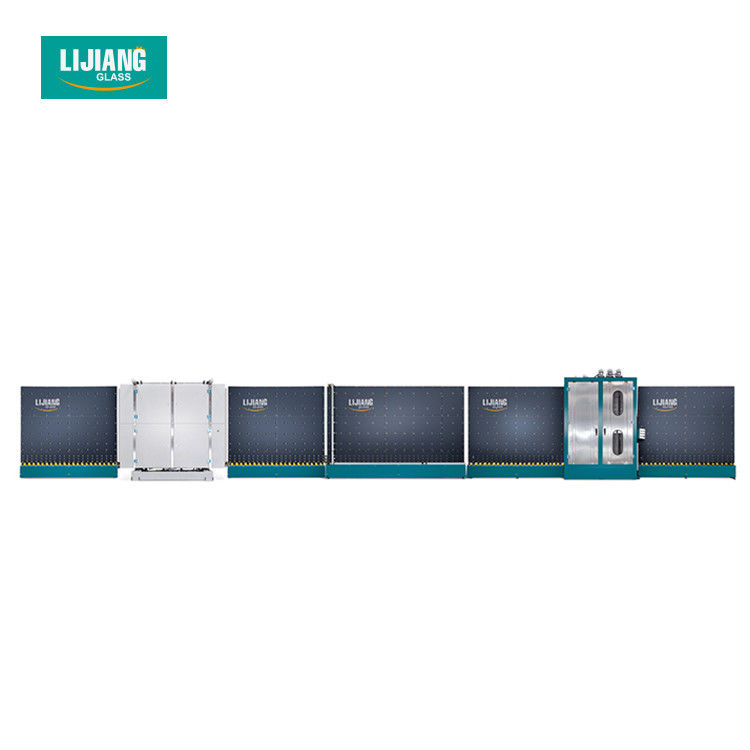

Product Details:
|
| Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm / 19mm |
| Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
| High Light: | Insulating Glass Flat Press Production Line,Double Glazing Flat Press Production Line,Full Automatic Insulating Glass Flat Press Line |
||
Major features:
• Adopt SIEMENS control system to maintain stable performance
• PLC control system, touch screen interface
• Automatically adjust adhesive depth on digital display
• Use servos to control system, modular and overlay capabilities
• Applicable to the manufacture of stepped IG, triple IG, and molded IG
• Two IGUs can be created at once and filled with argon gas (optional).
• Minimum and maximum glass sizes are optional.
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |

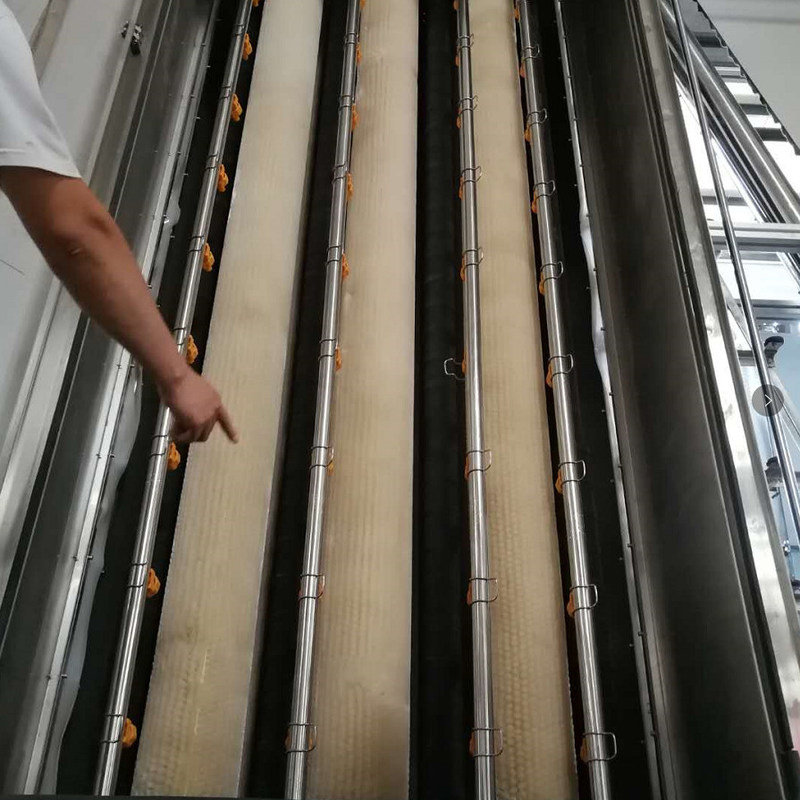

| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
Jinan Lijiang Automation Equipment Co., Ltd. is in beautiful spring
City ------ Jinan. A company that integrates research and development of glass processing equipment
Sales and service throughout. Due to its proximity to the Beijing-Shanghai high-speed rail, transportation is very convenient.
Convenient.
The company is committed to building high-end insulated glass machinery and equipment by learning from:
Famous experts, establishment of R & D center, cooperation at home and abroad
Well-known companies, imports of advanced technology, etc. Now our friendly partner is North
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua, etc.
Famous company. Since the establishment of the company, our products have been exported to Europe,
America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. at the same time,
We cooperate with well-known domestic research institutes such as North China Industrial Group,
We will constantly improve the level of technical research such as Shandong University. So far,
Vertical automatic IG production line, vertical IG sealing robot, automatic to fill gas online
Spacer bender, automatic desiccant filling machine, new fully automatic butyl extruder,
Its technology and quality have reached the highest level in China.
With the rapid development of the insulated glass industry, LIJIANG looks forward to working with you to benefit both sides.
Create a new world in collaboration with the situation.
