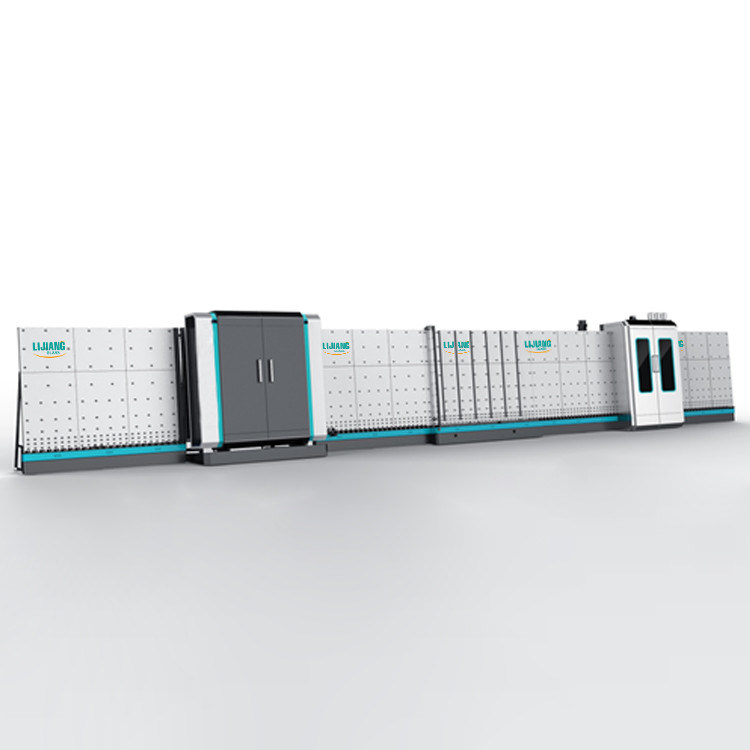

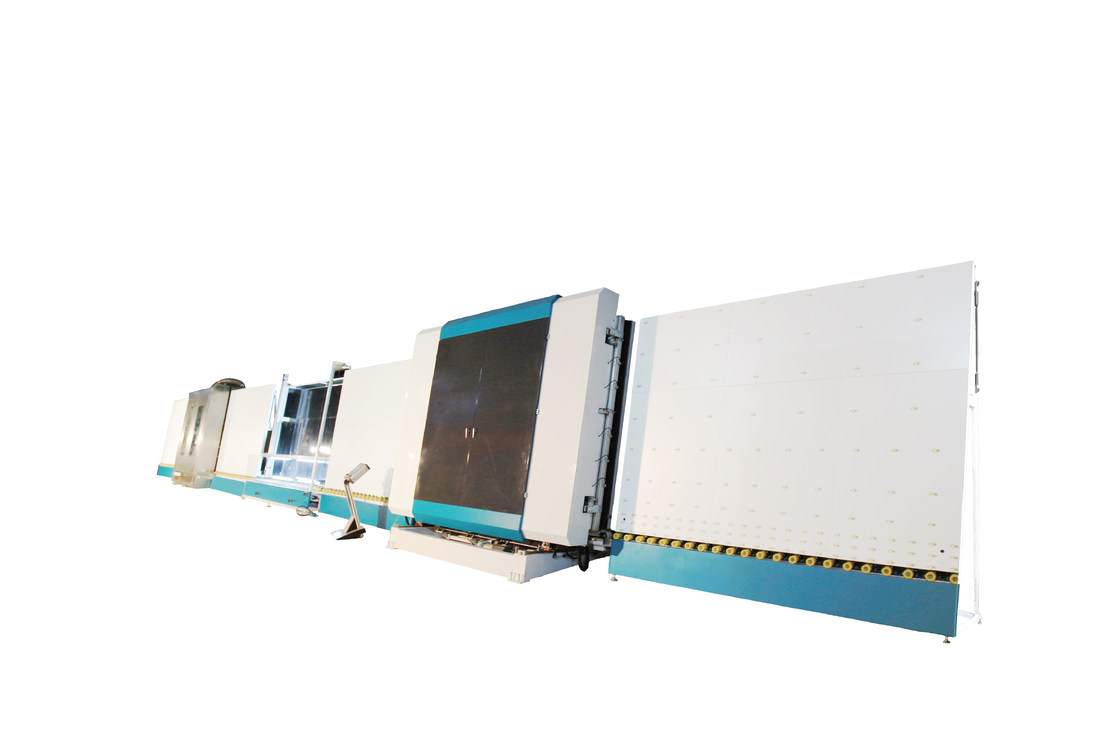

Product Details:
|
| Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm / 19mm |
| Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
| High Light: | glass processing machines,insulating glass line |
||
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |

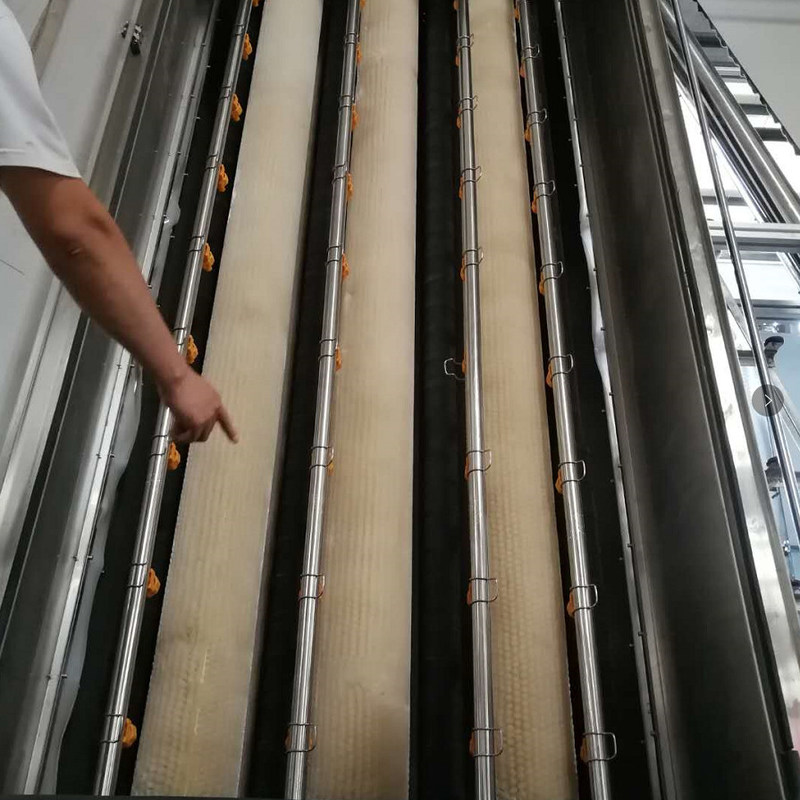

| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development,
sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very
convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from
famous experts, establishing the research and development centers, cooperating with domestic and foreign
well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other
well-known enterprises. Since the establishment of the company, our products have been exported to Europe,
America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time,
our company worked with the well-known domestic research institutes, such as the North China Industrial Group,
Shandong University and others, to constantly improve the level of technical research. So far, we have independently
produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic
spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine,
its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win
situation and jointly creating a new world.
