Product Details:
|
| Name: | Vertical Washing And Drying Machine | Material: | Stailess Stell Touching Water Part |
|---|---|---|---|
| Advantage: | Brush For Low-e | Feature: | Easy Opration |
| High Light: | glass processing machines,insulating glass line |
||

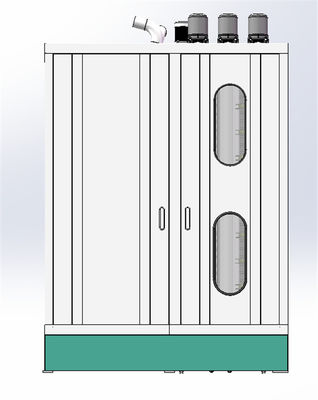

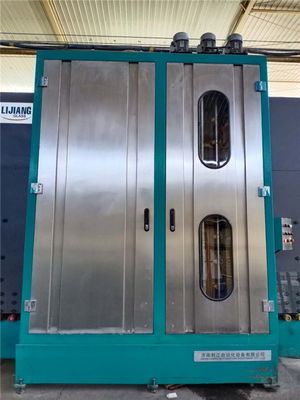

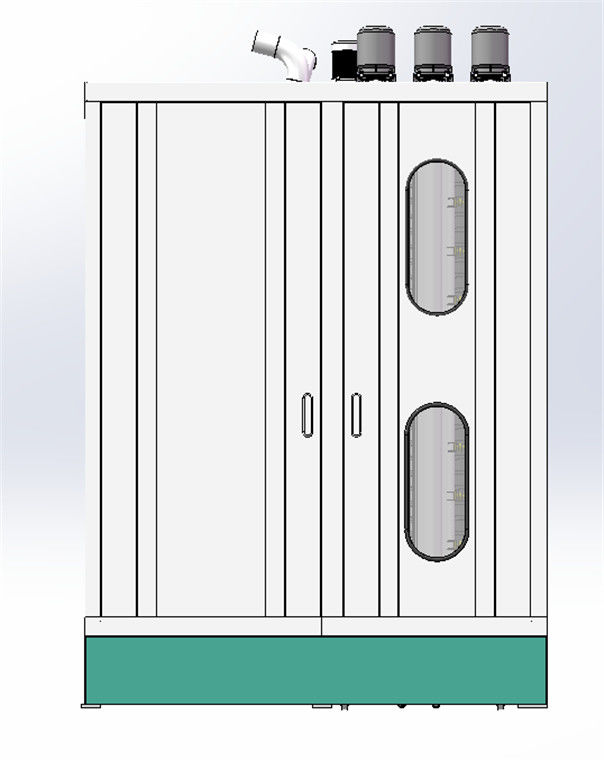

Automatic Vertical Glass washer glass processing equipment
1.Equipment introduction
2.Technical parameters
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
