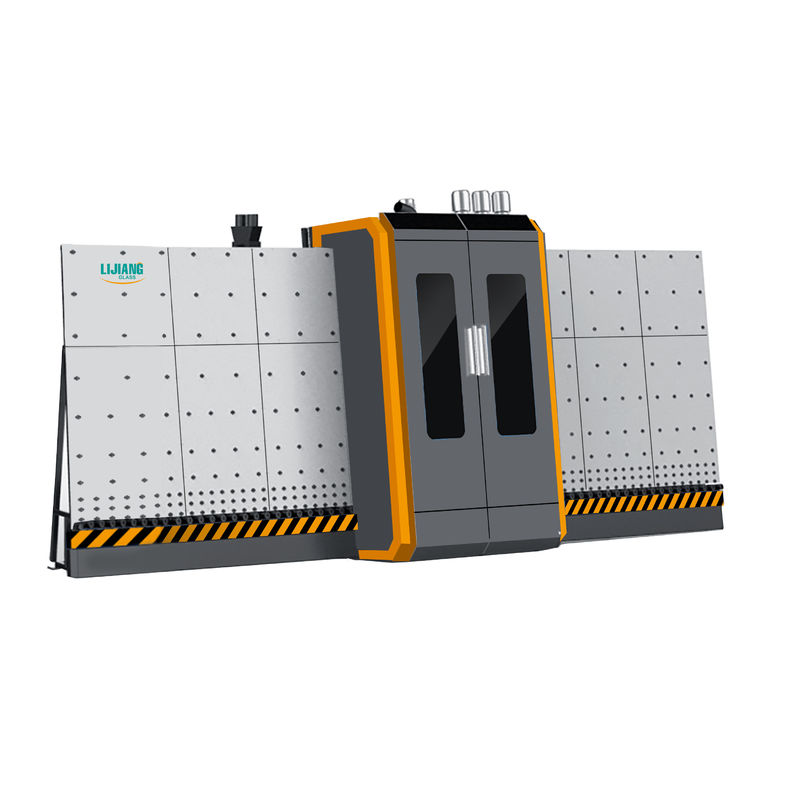

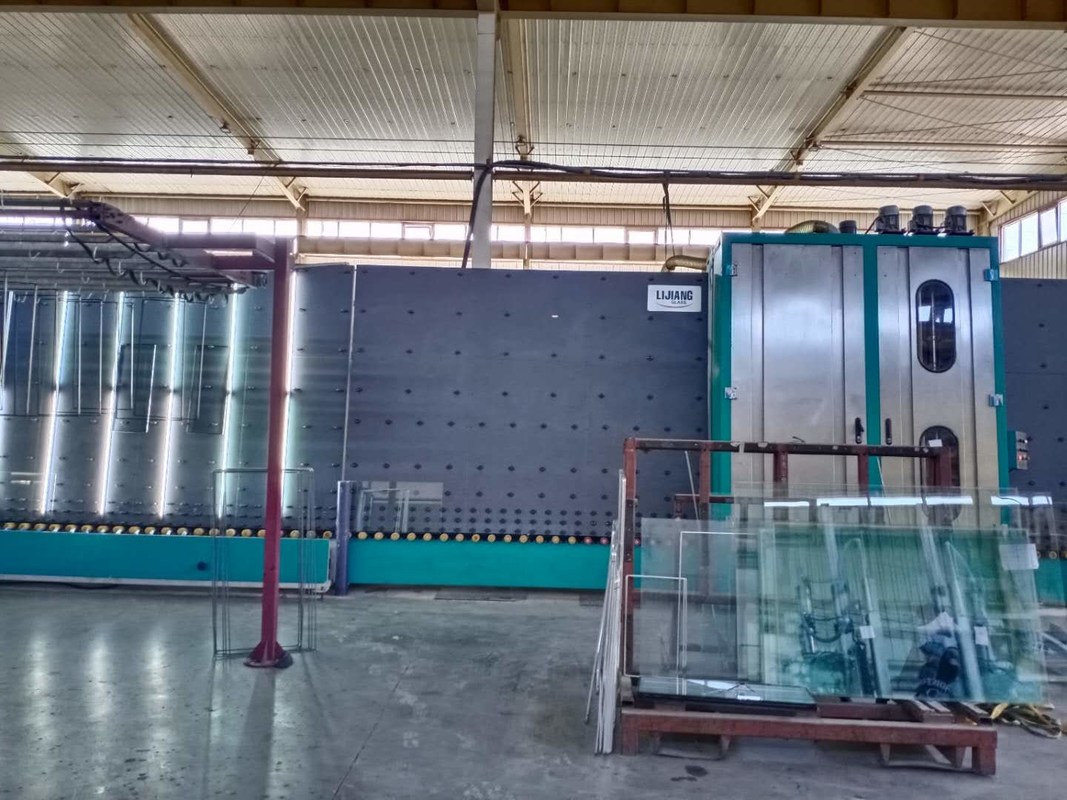

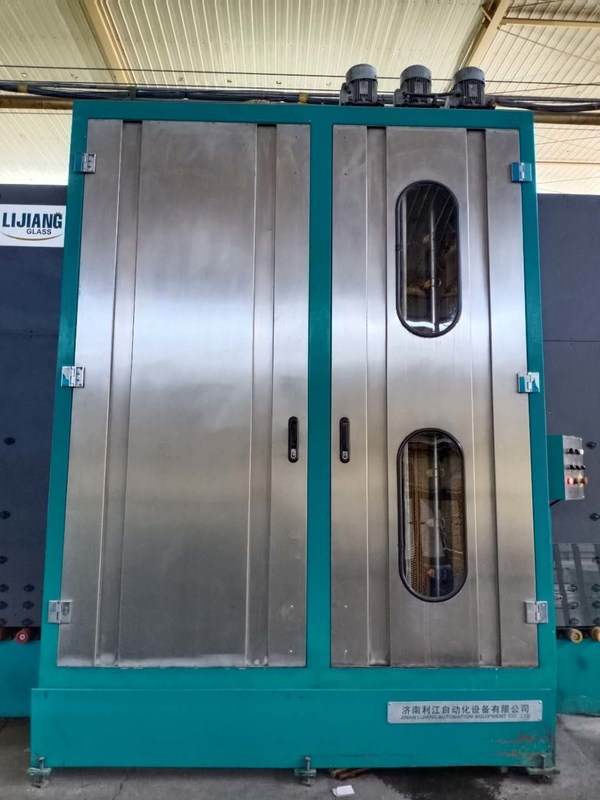

6033 Vertical Glass Washing Machine CNC Automatic Glass Cutting Table

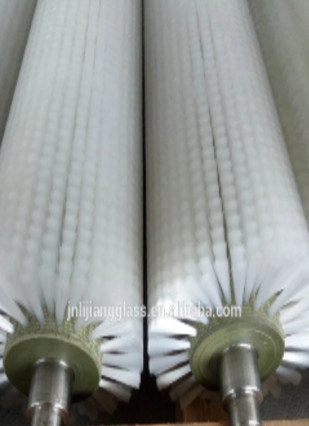

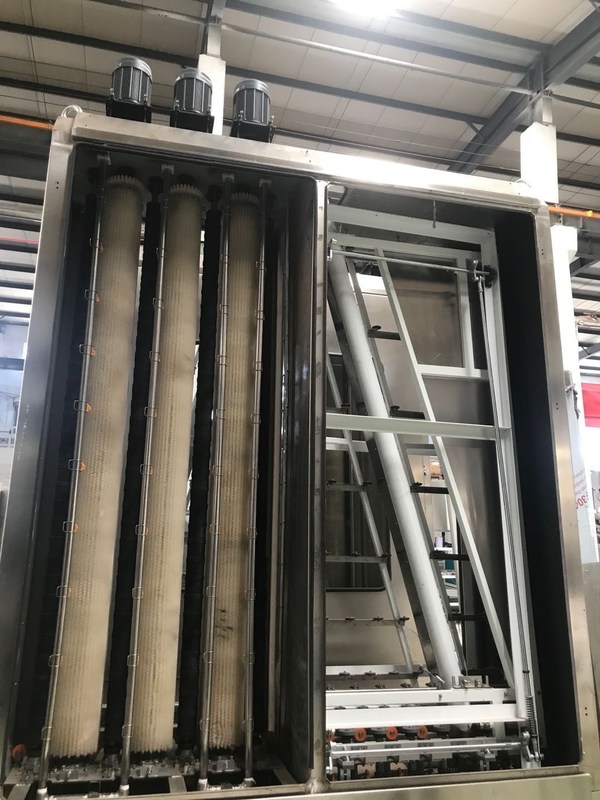

►The water tank system and water heating fuction

►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

Brief introduction of automatic glass cutting table

• Basic principles:

• Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.

• Software part:

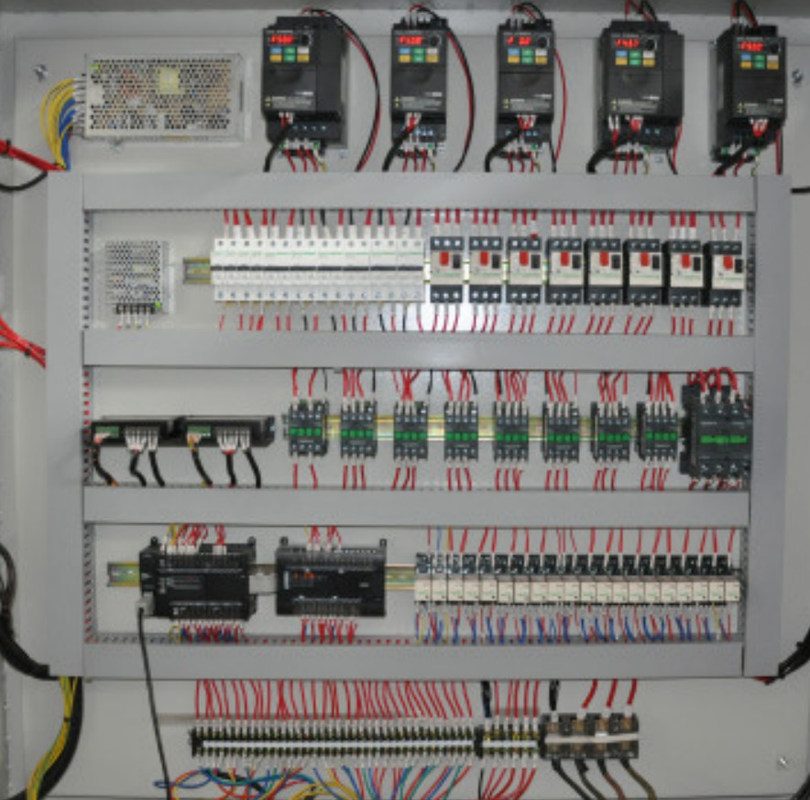

Motion Controller:

• 1) Fast running speed, smooth running, high control accuracy, modular controller structure;

• 2) The man-machine interface is simple and generous, the parameter adjustment is simple, the parameters that need to be modified by operators are less, simple and intuitive, and the requirements for operators are low.

• 3) Pipeline cutting mode, photoelectric positioning cutting mode and direct cutting mode are set freely through options. The automatic cutting mode and air operation mode can be switched at any time during the processing.

• 4) Graphic library nesting programming, select special-shaped from the library, set relevant parameters, processing quantity, automatic nesting, generating processing trajectory;

• 5) Complete storage of glass pressure stock, once the cutting pressure of each specification thickness is input and saved, it can be directly invoked;

• 6) Real-time tracking and displaying of processing path, timely recording of motion coordinates, axis state, I/0 state, automatic recording of fault diagnosis and alarm;

• 7) Receive a variety of processing documents, accept the standard G code of Optima, Super Package Software, AUTOCAD DXF file, the system has its own graphics editing software (exactly the same as Paul's editing method);

• 8) Graphic library nesting programming, selecting abnormal shape from the library, setting relevant parameters, processing quantity, automatic nesting, generating processing trajectory;

• 9) The sorting function of DXF class files, including the nearest point, entry point, or by graphics color clockwise, counterclockwise sorting and other options. Free the switch between single-phase cutting and bidirectional cutting is realized.

• 10) Photoelectric positioning function, according to the actual position and deflection angle, automatically adjust cutting;

• 11) Compensation function: tool eccentricity compensation, clearance compensation, pitch compensation;

• 12) All kinds of protection: including soft and hard limit, cutter pressure limit, external emergency stop control and so on.

Optimization software:

• Importable optimization results made in Office

•, disconnect schemes can be created and edited manually

• With copy and mobile features

• Manual editing of disconnect sequence

•, Cutting schemes can be created quickly in X, Y, Z modes.

• Simultaneous optimization of multiple original small patches

• Optimized typesetting with no size limit

• Optimized result rotation, mirror management, etc.

• Priority management for small cutting optimization

• Priority management of original glass plate optimization

• Template scanning function and scan graphic processing

• Original glass plate storage management

•, 20 efficient optimization algorithms

• Can edit cutting graphic

• Label design and label printing (Label-WAY)

• Clear printing of optimized results reports

•, Excel data file import

• Cutting control of Low-E and adhesive glass

• Graphics library with 350 parametric graphics, including all commonly used graphics types (Geo-Way)

• 2D CAD system with abnormal scan processing function (Cad-Way)

• Automatically convert digital signals from CNC systems to graphic formation points

• There are many language choices for the software operation interface, including the Chinese interface.

• Follow up on the latest international software development and deliver upgraded versions in real time to meet your latest functional requirements
