Insulating Glass Production Line for Glass Deep Processing manufacturing machinery

Description of  Automatic Vertical Insulated production line

Insulating Glass Production Line for Glass Deep Processing manufacturing machinery

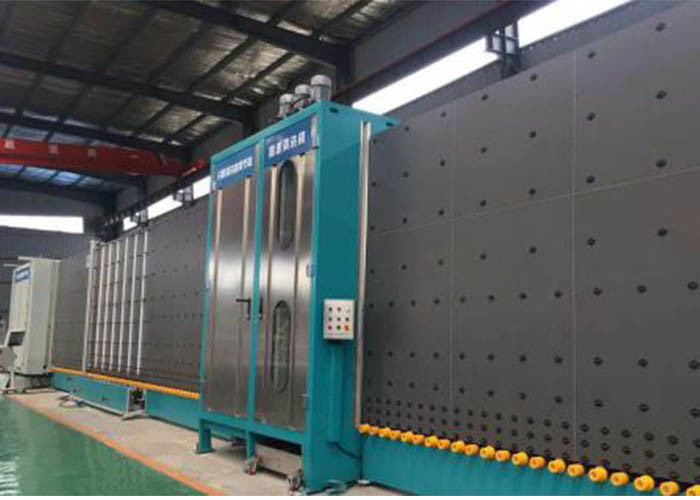

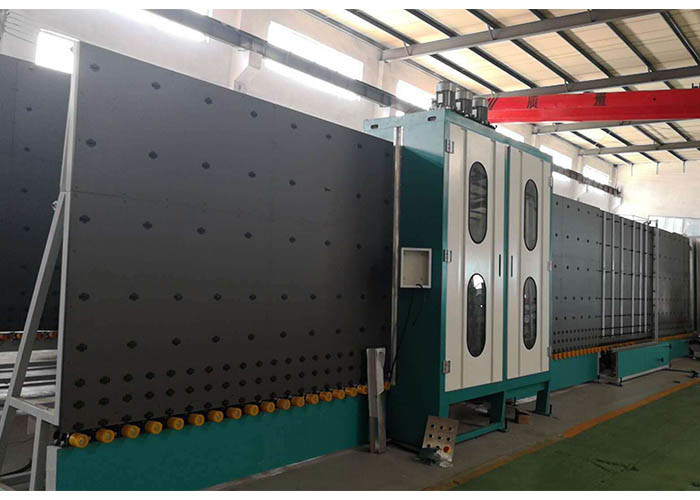

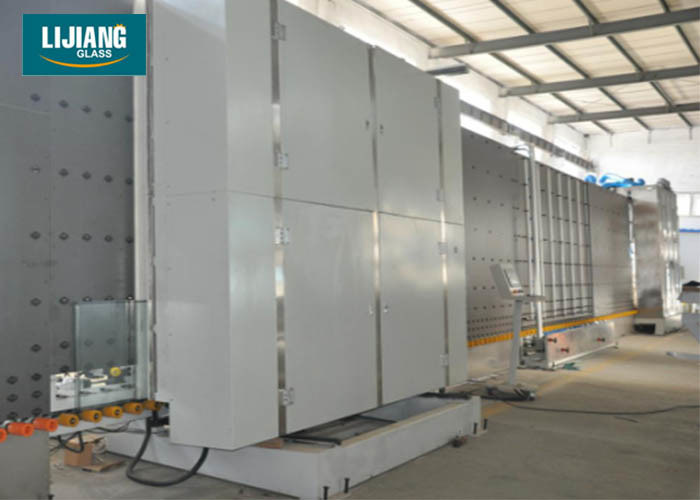

Automatic Vertical insulated glass production line mainly consists of four sections: input section, washing and drying section, inspection section and closing section. The four sections are placed vertically with the same dip angle, with compact structure, practical economy, high efficiency and convenient maintenance.Vertical insulating glass production line is mainly used for processing and making insulating glass.

Functions of Automatic insulated glass production line

1)Making double IG units

2)Making shaped IG units

3)Making low-e IG units

4)Making triple (3-layer) IG units

5)Making four-sides IG units

6)Filling argon gas automatically

Feature of IG line

1.IG line adopts Siemens control system, equipped with high resolution touch screen.

2.There is the Low-e glass sensor in the washing machine

This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.

2.The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

3.The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts.

5.Air-buffered backrest prevents glass scratches and glass wheel marks

6.Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.The special structure inside the washing machine can automatically recognize glass thickness.

7. Compared with traditional hydraulic station, servo motor can guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.

Timing belt is jagged, making the pressing more accuratly.

Servo motor can be accurately calculated the thickness of the glass and aluminum spacer.

The pressing box uses servo motor and timing belt to support pressing IG units.

8.In China, except LIJIANG, no one can guarantee that the pressing board will remain vertical and straight all the time after used 10 or 20 years. However, we solve this problem already.We adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time.

9.The IG line fills argon gas with 22s only for one piece of 1m*1m double glazing glass.Automatic inflating function inside the slab, automatically inflating according to the size of the glass, improving inflation efficiency and gas utilization rate.

Technical data of IG line

Company introduction

Jinan Lijiang Automation Equipment Co., Ltd. is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.

Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.
