Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass
Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass

Large Image :  Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJLBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 20days
Payment Terms: T/T, L/C
Supply Ability: 10set/month
Contact Now

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass

Description
Name: Vertical Washing And Drying Machine Material: Stailess Stell Touching Water Part
Advantage: Brush For Low-e Feature: Easy Opration
High Light:

glass processing machines

,

insulating glass line

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 0



      LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 1

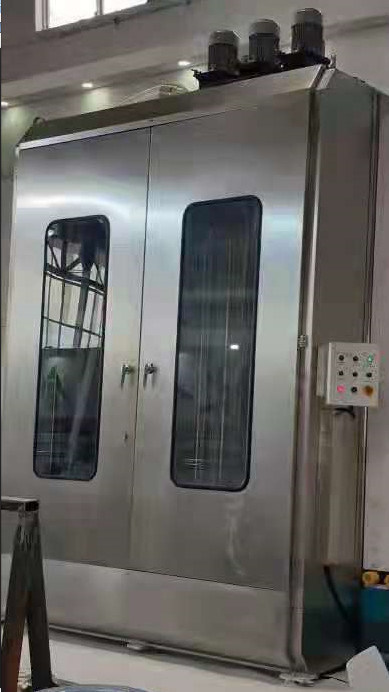

Glass Washing Machine LJLBQJ2500

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 2



Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.
Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 3Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 4

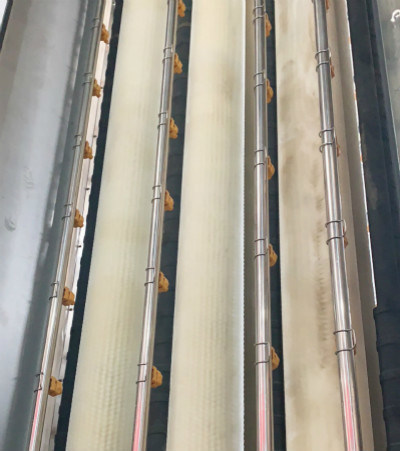

  • In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
  • The material in the washing and drying section all made by stainless steel.
  • The main power consumption is mostly appear in the washing and drying section of the IG line.
  • The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
  • The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
  • The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
  • The who drying machine use the sound insulation design.can reduce the noise.

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 5Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 6
►The drying roon system



Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 7Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 8

►The water tank system and water heating fuction

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 9Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 10

►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.



Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 1

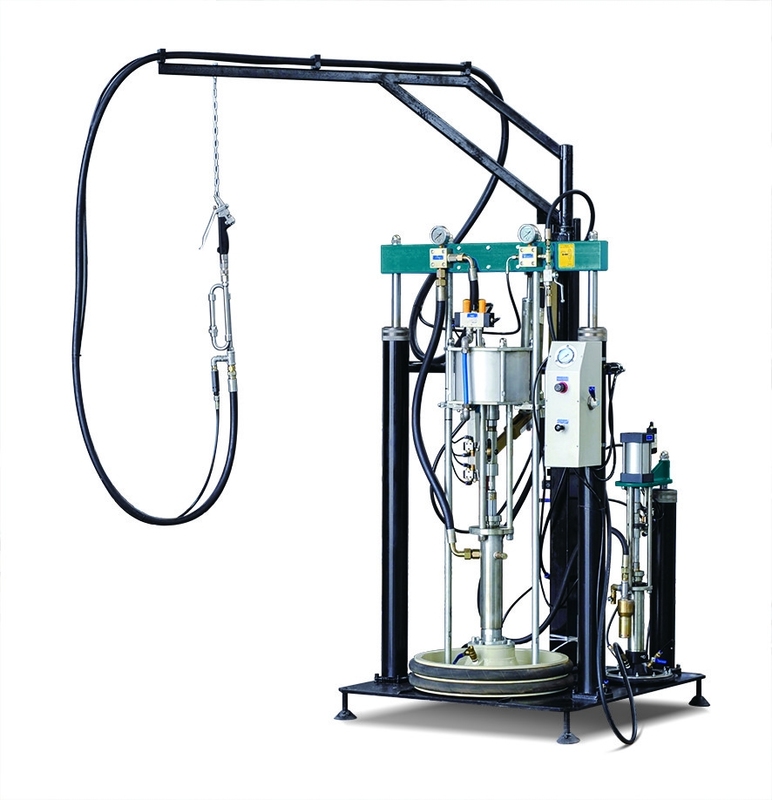

Sealant-spreading Machine LJST02A

Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 12

Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm



Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 13

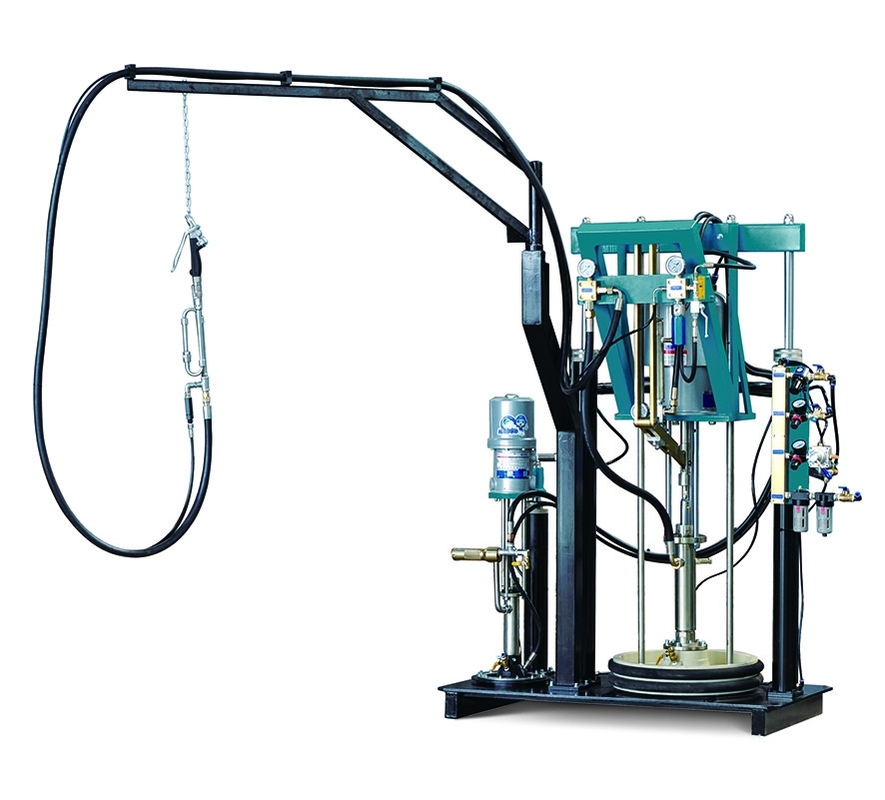

Sealant-spreading machine LJST03

This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass. Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.



Product name
Sealant-spreading machine LJST03
Working air pressure
0.3-0.6MPa
Sealant spreading pressure
15-20MPa
Sealant volume
4L/min
Diameter of A/B sealant
570mm/280mm
Sealant spreading air pressure ratio
50:1
Mixed rate
6:1-14:1
Air supply
Flow 0.8m3/min











Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 14



Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 15Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 16Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 17Automatic Vertical And Horizontal Washer and Sealant-spreading Machine for insulating Glass 18
