10m/min Insulating Glass Production Line Horizontal Washer

Large Image : 10m/min Insulating Glass Production Line Horizontal Washer

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJLBQJ2500

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	20days
Payment Terms:	T/T, L/C
Supply Ability:	10set/month

Contact Now

10m/min Insulating Glass Production Line Horizontal Washer

Description

Name:

Vertical Washing And Drying Machine

Material:

Stailess Stell Touching Water Part

Advantage:

Brush For Low-e

Feature:

Easy Opration

Highlight:

Horizontal Insulating Glass Production Line

IG Glass Horizontal Washer

Insulating Glass Horizontal Washer

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

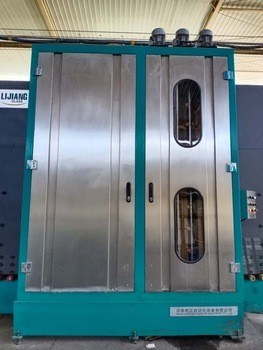

10m/min Insulating Glass Production Line Horizontal Washer 1

Glass Washing Machine LJLBQJ2500

10m/min Insulating Glass Production Line Horizontal Washer 2

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
The material in the washing and drying section all made by stainless steel.
The main power consumption is mostly appear in the washing and drying section of the IG line.
The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
The who drying machine use the sound insulation design.can reduce the noise.

►The drying roon system

►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

Vertical Insulating Glass Production Line LJBZ2535G

Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Technical data

			Max. glass size
			2500mm*3500mm

			Min. glass size
			280mm*400mm

			Glass thickness
			3-15mm / 19mm

			Insulating glass thickness
			50mm / 60mm

			Glass washing speed
			2-10m/min

			Glass conveyor speed
			45m/min

			Washing brushes
			3 pairs

			Water supply
			Water consumption:0.5t/h conductivity:40μs/cm

			Air supply
			Flow: 0.8m/min

			Air pressure
			≥0.8MPa

			Total power
			3P 380V 50HZ 40KW

			Dimension
			23500*3500*3700mm

			Weight
			6500kg

Electrical parameters

			NAME
			ORIGIN
			BRAND

			PLC
			Germany
			SIEMENS

			Low voltage electrical appliance
			Germany
			SIEMENS

			Frequency converter
			Germany
			SIEMENS

			Servo motor
			Japan
			FUJI

			Photoelectric switch
			Germany
			SICK

			Micro Switch
			Taiwan
			TEND

			Button and indicator light
			France
			SCHNEIDER

			Touch screen
			Taiwan
			WEINVIEW

			Intermediate relay
			Japan
			OMRON

			Brush motor
			China
			QINGHUA

			Water pump
			China
			LINGXIAO

			Guide
			Taiwan
			HIWIN

			Pneumatic Components
			Taiwan
			AIRTAC

			IG line without filling gas online

			NAME
			ORIGIN
			BRAND

			Servo motor
			Germany
			SIEMENS

			PLC
			Germany
			SIEMENS

			Low voltage electrical appliance
			Germany
			SIEMENS

			Frequency converter
			Germany
			SIEMENS

			Transfer motor
			Taiwan
			LINHAI

			Brush motor
			Taiwan
			LINHAI

			Water pump
			China
			LINGXIAO

			Guide
			Taiwan
			HIWIN

			Pneumatic Components
			Taiwan
			AIRTAC

			Electric gauge
			China
			MIRAN

			Photoelectric switch
			Germany
			SICK

			Micro Switch
			Taiwan
			TEND

			Button and indicator light
			France
			SCHNEIDER

			touch screen
			Taiwan
			WEINVIEW

			Intermediate relay
			Japan
			OMRON

			IG line with gas filling online
