Name: Automatic Vertical And Horizontal Washer and Desiccant Filling Machine LJGZ 2020
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJLBQJ2500
Availability: InStock

Home > Products > Insulating Glass Production Line >

Automatic Vertical And Horizontal Washer and Desiccant Filling Machine LJGZ 2020

glass processing machines

insulating glass line

Place of Origin:

China

Brand Name:

Lijiang

Certification:

Model Number:

LJLBQJ2500

Request A Quote

Automatic Vertical And Horizontal Washer and Desiccant Filling Machine LJGZ 2020

Product Details

Name:

Vertical Washing And Drying Machine

Material:

Stailess Stell Touching Water Part

Advantage:

Brush For Low-e

Feature:

Easy Opration

Highlight:

glass processing machines

insulating glass line

Payment & Shipping Terms

Minimum Order Quantity

Negotiable

Price

Negotiable,

Packaging Details

wooden case or container

Delivery Time

20days

Payment Terms

T/T, L/C

Supply Ability

10set/month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

Automatic Vertical And Horizontal Washer and Desiccant Filling Machine LJGZ 2020 1

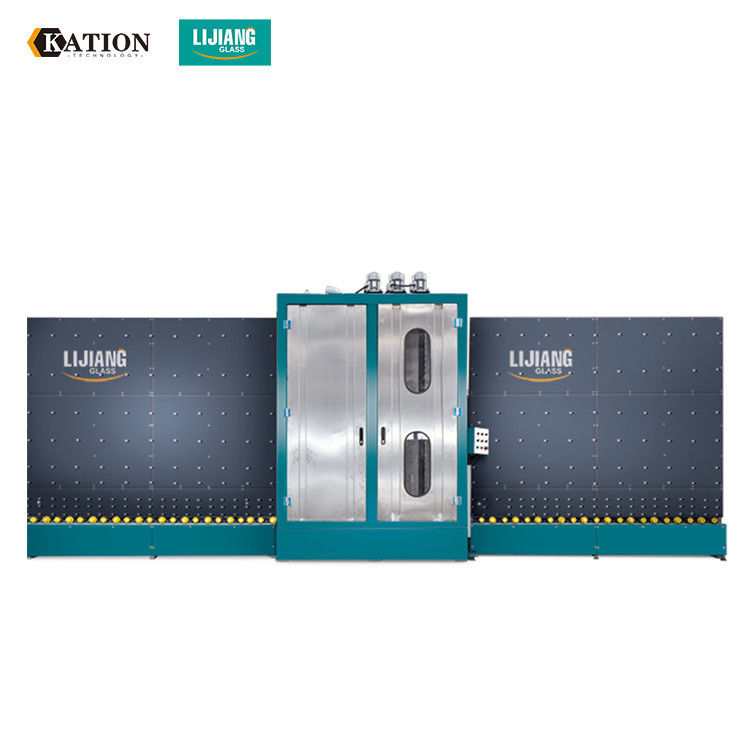

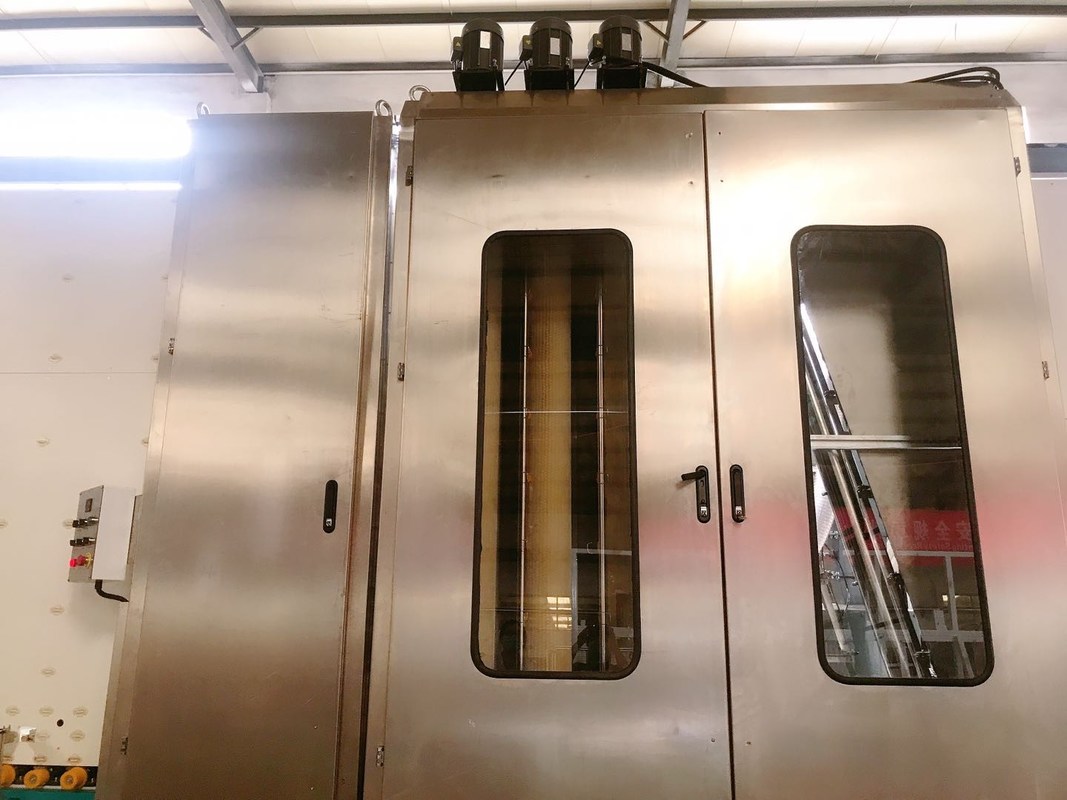

Glass Washing Machine LJLBQJ2500

Automatic Vertical And Horizontal Washer and Desiccant Filling Machine LJGZ 2020 2

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
The material in the washing and drying section all made by stainless steel.
The main power consumption is mostly appear in the washing and drying section of the IG line.
The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
The who drying machine use the sound insulation design.can reduce the noise.

►The drying roon system

►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

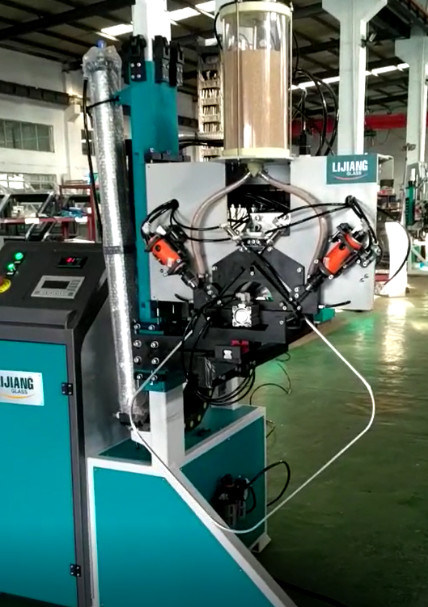

Desiccant Filling Machine LJGZ 2020 for double Glass
APPLICATION

Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)

Technical data

			Max. frame size
			2000mm*2000mm (2500mm*2500mm)

			Min. frame size
			300mm*250mm

			Aluminum specifications
			6A- 27A

			Air source
			≥0.65MPa

			Power supply and power consumption
			AC220V 50Hz 1KW

			Molecular sieve diameter needed
			0.5-0.8mm

			Dimension
			1100mm*1100mm*3600mm

Tags：

double glazing production

glass processing machines

insulating glass line

Jumbo Size Double Glazing Production Line With Sealing Robot Argon Gas Filling Online

Get Best Price

Jumbo Size Double Plate Pressing Insulating Glass Energy Saving Inflatable Sealing

Get Best Price

Video

Automatic Double Glass Insulated Glass Production Machines 3 - 15mm

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Automatic Butyl Extruder Machine For Insulating Glass Processing

Get Best Price

Send your inquiry directly to us

Max. frame size	2000mm2000mm (2500mm2500mm)
Min. frame size	300mm*250mm
Aluminum specifications	6A- 27A
Air source	≥0.65MPa
Power supply and power consumption	AC220V 50Hz 1KW
Molecular sieve diameter needed	0.5-0.8mm
Dimension	1100mm1100mm3600mm
