Automatic Vertical And Horizontal Washer and Automatic Aluminum Spacer Bending Machine LJZW2020

Large Image : Automatic Vertical And Horizontal Washer and Automatic Aluminum Spacer Bending Machine LJZW2020

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJLBQJ2500

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	20days
Payment Terms:	T/T, L/C
Supply Ability:	10set/month

Contact Now

Automatic Vertical And Horizontal Washer and Automatic Aluminum Spacer Bending Machine LJZW2020

Description

Name:

Vertical Washing And Drying Machine

Material:

Stailess Stell Touching Water Part

Advantage:

Brush For Low-e

Feature:

Easy Opration

Highlight:

glass processing machines

insulating glass line

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

Automatic Vertical And Horizontal Washer and Automatic Aluminum Spacer Bending Machine LJZW2020 1

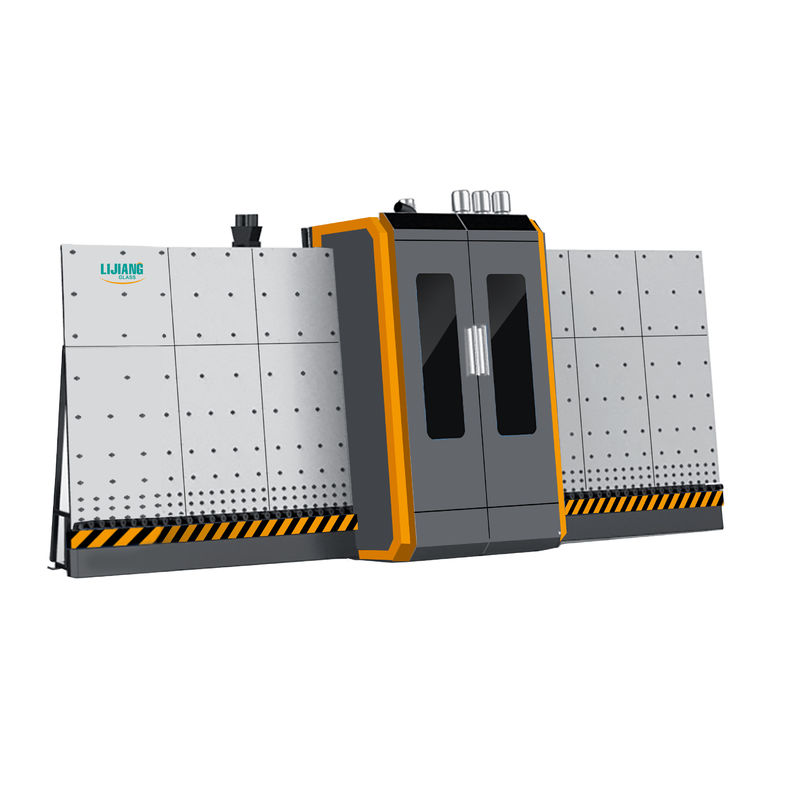

Glass Washing Machine LJLBQJ2500

Automatic Vertical And Horizontal Washer and Automatic Aluminum Spacer Bending Machine LJZW2020 2

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

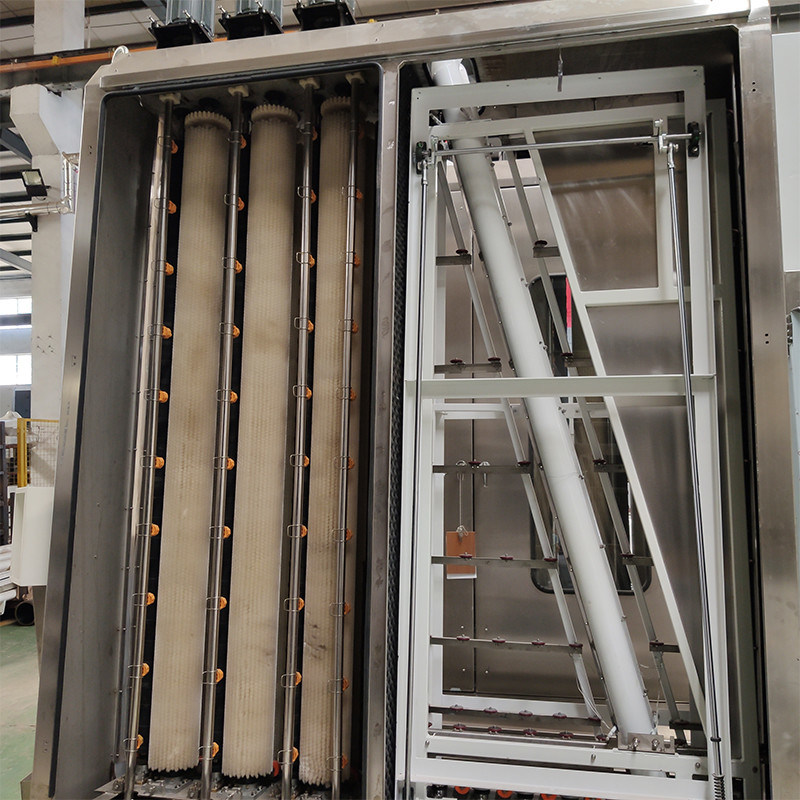

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
The material in the washing and drying section all made by stainless steel.
The main power consumption is mostly appear in the washing and drying section of the IG line.
The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
The who drying machine use the sound insulation design.can reduce the noise.

►The drying roon system

►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

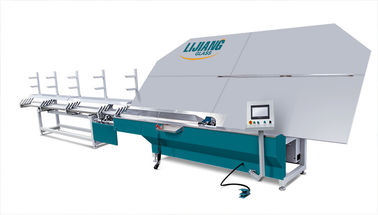

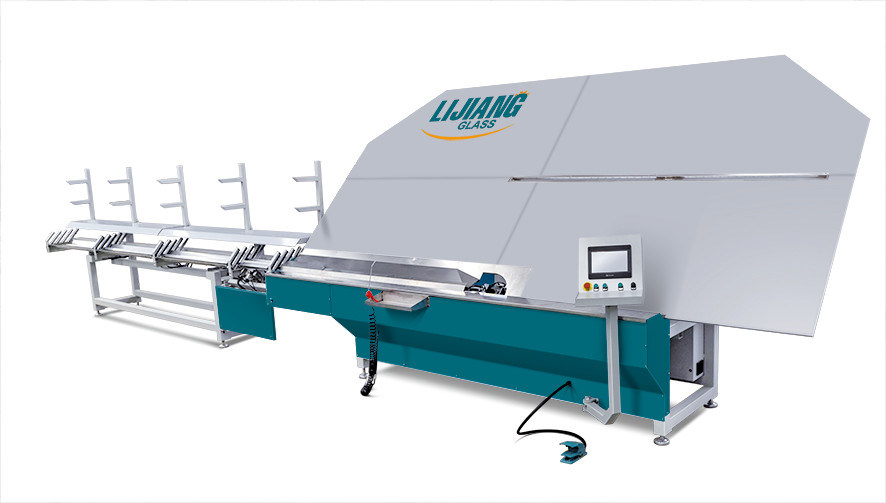

Automatic Aluminum Spacer Bending Machine  LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures

• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)

Technical data


			Max. bending size
			2000mm*2000mm (2500*2500mm)


			Min. bending size
			250mm*200mm


			Aluminum spacer width
			5.5-27mm


			Dimensional error
			±0.5mm


			Angle error
			±1º


			Processing speed
			≤26s


			Air supply
			≥0.65MPa


			Total power
			AC220/380V 50Hz 2.5KW


			Dimension
			10500mm*2200mm*2600mm



Electrical parameters


			NAME
			BRAND
			NAME
			BRAND


			PLC
			GERMAN SIEMENS
			Triplet
			Taiwan AIRTAC


			Low voltage electrical apparatus
			GERMAN SIEMENS
			Cylinder
			Taiwan AIRTAC


			Servo motor
			JAPAN FUJI
			Solenoid valve
			Taiwan AIRTAC


			Servo driver
			JAPAN FUJI
			Switch power
			Taiwan TEND


			Relay
			JAPAN OMRON
			TOUCH SCREEN
			Taiwan WEINVIEW


			Sensor
			KOREA AUTONICS
			GUIDE
			Taiwan TBI
