Product Details:
|
Name: | Vertical Washing And Drying Machine | Material: | Stailess Stell Touching Water Part |
---|---|---|---|

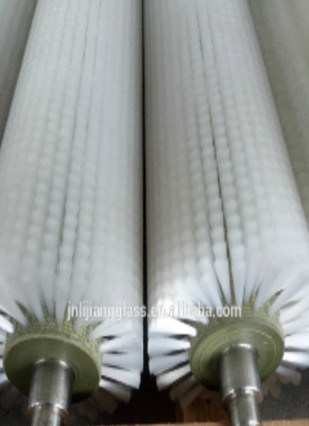

Advantage: | Brush For Low-e | Feature: | Easy Opration |
High Light: | glass processing machines,insulating glass line |
Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

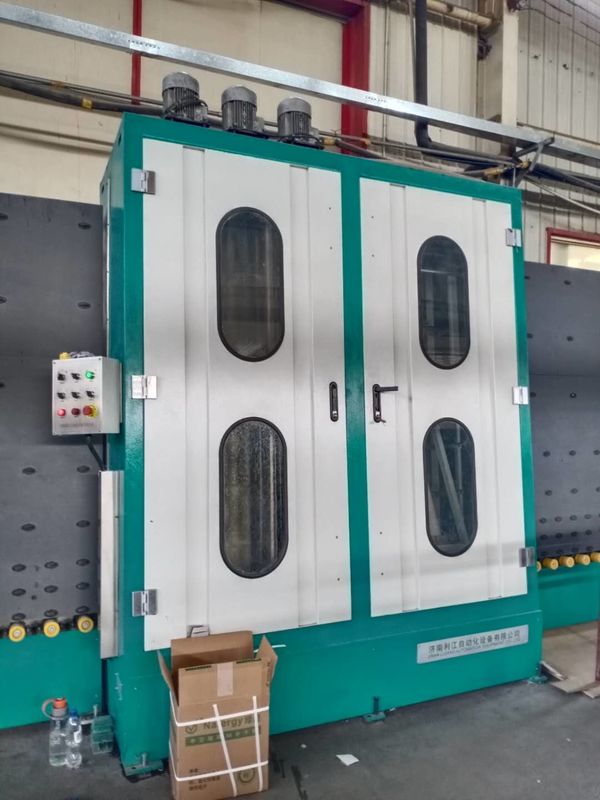

Glass Washing Machine LJLBQJ2500
►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

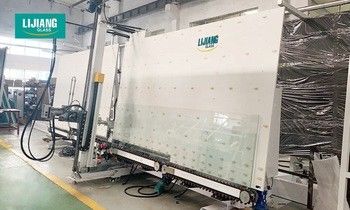

Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment

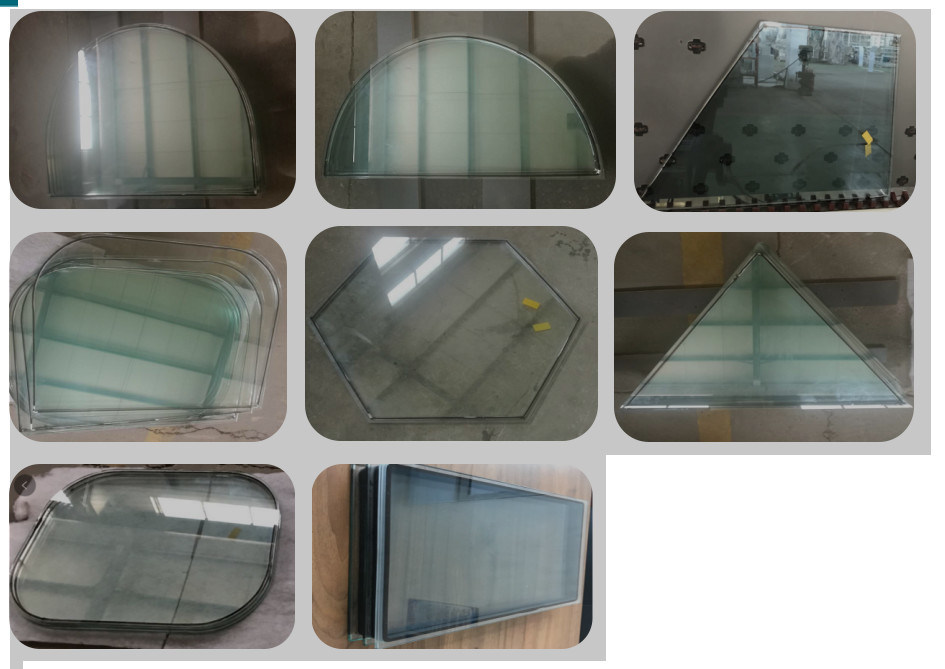

• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Technical data
Max. glass size | 2500*4000mm (Optional) |
Min. glass size | 300*300mm |
Glass thickness | 12-50mm |
Working speed | 5-40m/min |
Air pressure | ≥0.6MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 12kw |
Overall dimension | 11000*2000*3500mm |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
CPU | Japan | YASKAWA |
Low voltage component | Germany | SIEMENS |
Guideway | Taiwan | HIWIN |
Switching power supply | Taiwan | MW |
Sensor switch | Korea | AUTONICS |
Pneumatic component | Japan | SMC |
Touch screen | China | GAOSHAN |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
