Automatic Vertical And Horizontal Washer and Smart Vertical Edge Deleting Machine LJCM2545

Large Image : Automatic Vertical And Horizontal Washer and Smart Vertical Edge Deleting Machine LJCM2545

Product Details:

Place of Origin:	China
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJLBQJ2500

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable,
Packaging Details:	wooden case or container
Delivery Time:	20days
Payment Terms:	T/T, L/C
Supply Ability:	10set/month

Contact Now

Automatic Vertical And Horizontal Washer and Smart Vertical Edge Deleting Machine LJCM2545

Description

Name:

Vertical Washing And Drying Machine

Material:

Stailess Stell Touching Water Part

Advantage:

Brush For Low-e

Feature:

Easy Opration

Highlight:

glass processing machines

insulating glass line

Automatic Vertical And Horizontal Washing And Drying Machine Easy Opration Glass Cleaning

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

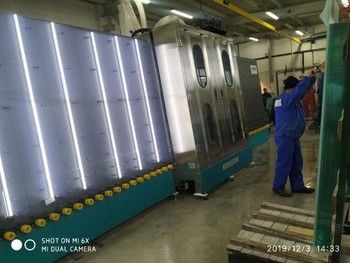

Automatic Vertical And Horizontal Washer and Smart Vertical Edge Deleting Machine LJCM2545 1

Glass Washing Machine LJLBQJ2500

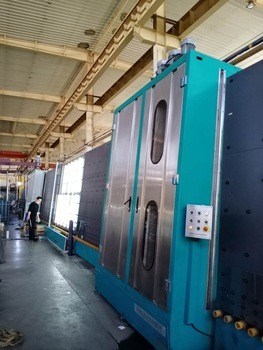

Automatic Vertical And Horizontal Washer and Smart Vertical Edge Deleting Machine LJCM2545 2

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.

In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray.
The material in the washing and drying section all made by stainless steel.
The main power consumption is mostly appear in the washing and drying section of the IG line.
The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and design section
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transfered. No mater the glass size is big or small , it all guarantee the glass pass through smoothly
The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.
The who drying machine use the sound insulation design.can reduce the noise.

►The drying roon system

►The water tank system and water heating fuction
►Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.

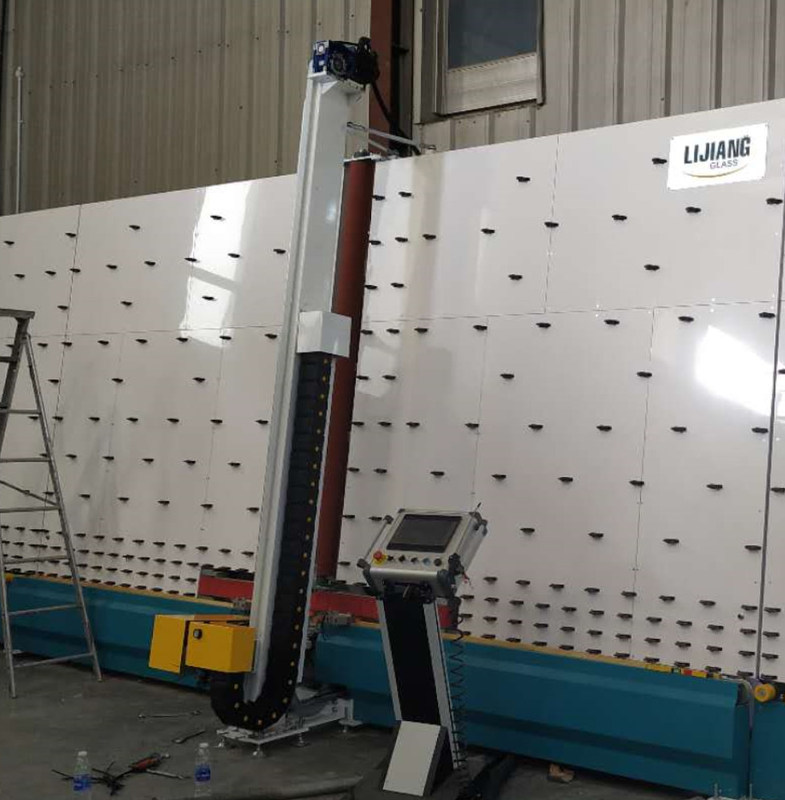

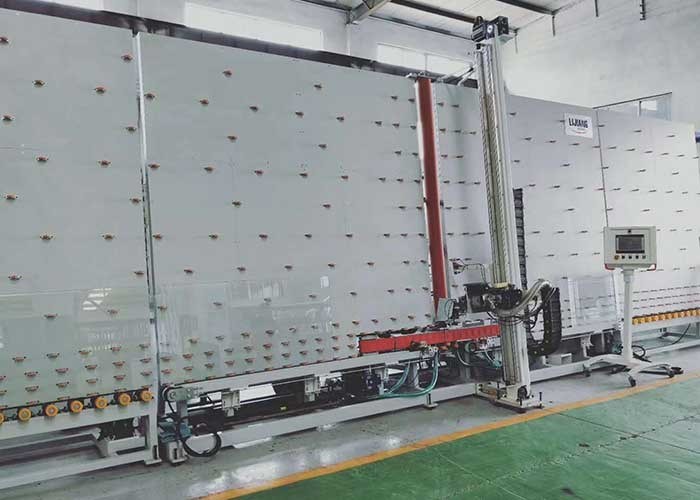

Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing

Technical data

			Max. glass processing size
			2500*4500mm

			Min. glass processing size
			400*280mm

			Glass thickness
			3-15mm

			Diameter of grinding wheel
			200mm

			Conveyor height
			500mm

			Edge deleting width
			10-50mm

			Transmission speed
			1. 29m/min

			Edge deleting speed
			2-29m/min

			Abrasive wheel width
			10/12/15mm

			Glass thickness
			3 - 15mm

			Grinding wheel speed
			0~3000r/min

			Total air consumption
			100L/ min

			Air pressure
			≥0.8MPa

			Total power
			3P 380V 50Hz 3.35KW

			Dimension
			Dimensions :9700*2500*3400mm

			Total weight
			3700KG

Electrical parameters

			NAME
			ORIGIN
			BRAND

			Servo motor
			Taiwan
			TAIDA

			PLC
			Taiwan
			TAIDA

			Pneumatic component
			Taiwan
			AAIRTAC

			Low pressure electricity
			Germany
			SIEMENS

			Circuit breaker
			Germany
			SIEMENS

			Sensor switch
			Korea
			AUTONICS

			Approach switch
			Korea
			AUTONICS

			Limit switch
			Taiwan
			TEND

			Connector
			Germany
			SIEMENS

			Frequency converter
			France
			SCHNEIDER

			Main Button
			France
			SCHNEIDER

			Intermediate relay
			Japan
			OMRON
