Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 1000KG | ||
| Highlight: | 4 Suckers Insulating Glass Production Line,Four Suckers Insulating Glass Production Line,1000KG Insulating Glass Production Line |
||
Customization Glass Cantilever Crane with four lifting suckers 1000KG LJXJ1000
Main Features
It can select DC chaging vacuum pump,equipped with battery device.
-Maximum bearing capacity is 1000kgs (10 vacuum cups), Max. Glass size can reach to 8m (The lifter with post can reach 3.9 meter)
-suitable for high-temperature glass

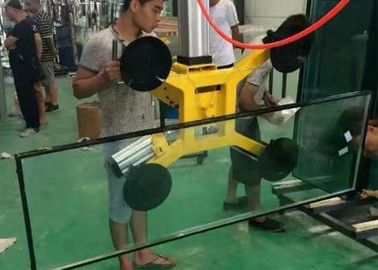

Glass Cantilever Crane with lifting sucker
1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 1000kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameters:
| Max Glass weight | 800KG | |
| Rotation angle |
Rotate 180 |
Left and Right Up and Down |
| Suction cups | 4 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Vertical Insulating Glass Sealing Robot LJTJ2025
Main feature
• Whole machine adopt man-machine interface, the operation is more convenient and intuition with the simplified thinking design interface.
• The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.
• High automation, high efficiency, suitable for glass deep processing enterprise to use.
• Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.(optional)
• The third section can pre-store glass to improve the efficiency effectively
• Servo control system adopts world famous brand(Japan Anchuan), the performance is stable
• Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
• The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.
• Support three layer glass sealant
Technical data
| Max. glass size | 2000*2500mm |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8000*1500*2700mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
