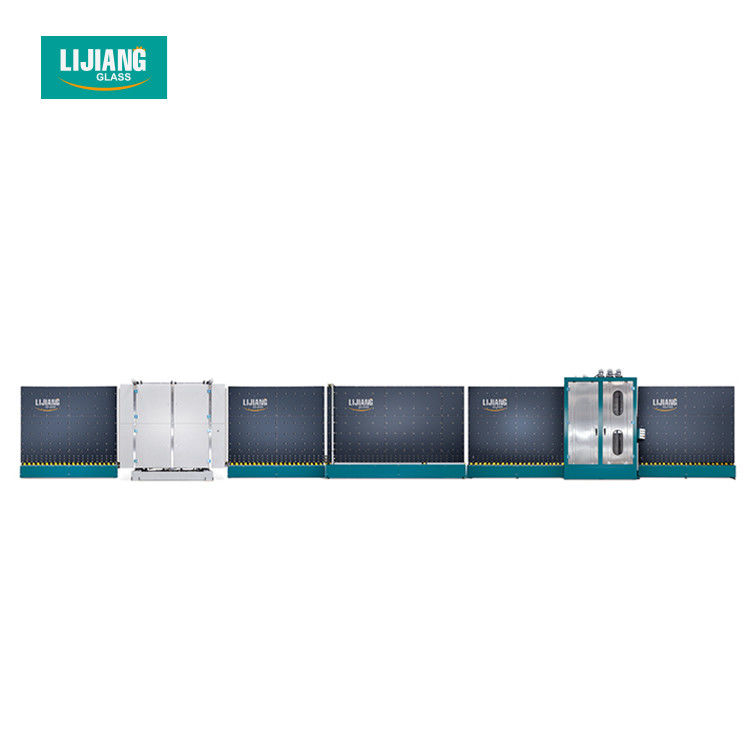

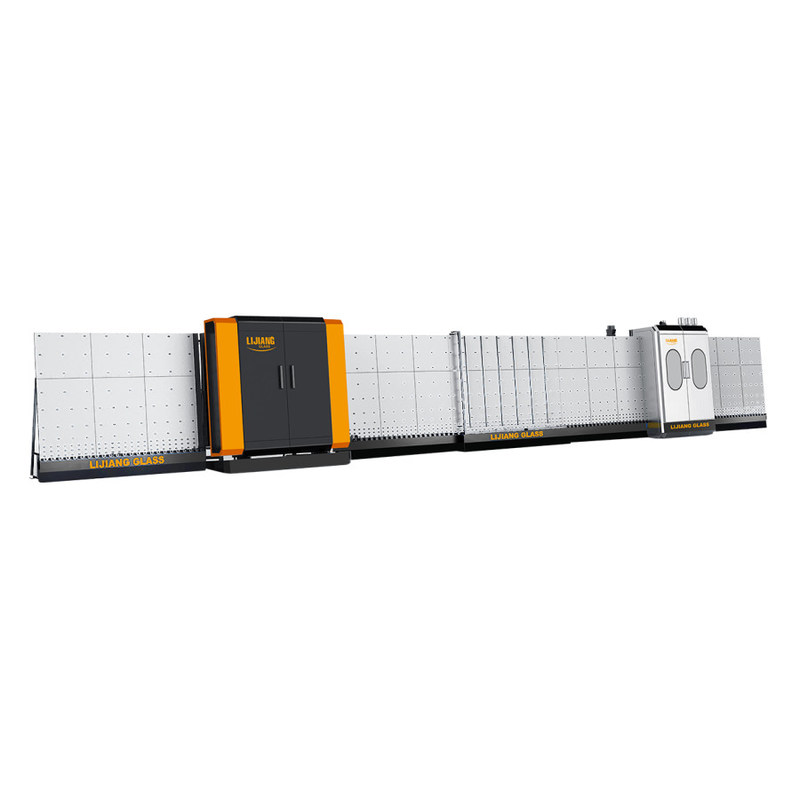

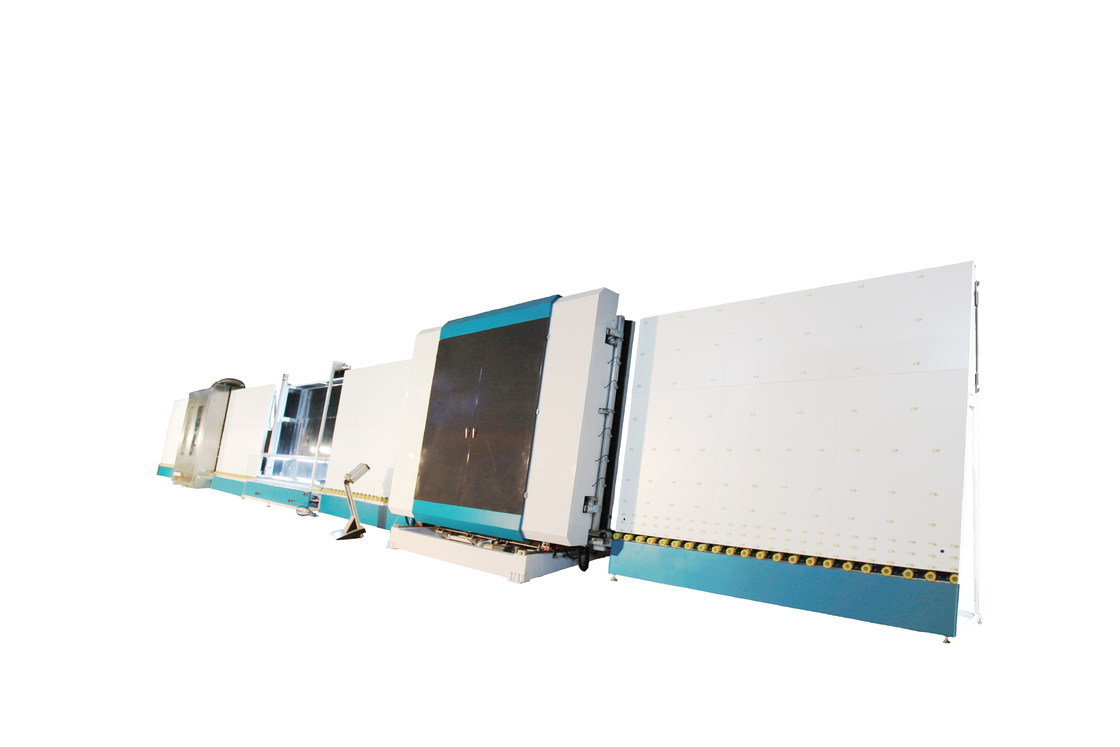

GLASS PRODUCTION LINE VERTICAL GLASS WASHING MACHINE INSULATING GLASS LINE

About the IG line only need focus on the two part -WASHING DRYING PART AND PRESSING PART .All other part just conveyors and assembly, no much technology, so please focus on that two .]

A, washing and drying part

• three pairs soft brushes can wash low-e glass, the diameter is less than 0.1mm.
• Materials are ss 304.
• Air knife is float design , it always keep the right and suitable distance 3mm between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)

     4, The front and back squeeze wheel are all actively moved and conveyor. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.(Same like LISEC)

B, Pressing part

1, There have stress after welding in the Pressing frame ,

so the out-of -shape problems is inescapable after using some time

(machine can not press DGU properly evenly and tightly )

that is not good for IGU quality, any glass project can not accept these products

For this uneven inescapable issue, here are our solution :

• we all do the aging treatment , it’s the stress-remove by vibration failure device.

The important is We design the 74 points on the backbord, if there have any out-of shape problems we can adjust easily at any time. ( same like Bystronic structure )

C, Gas filling

1, Input the argon gas concentration into touch screen according to customer required

2, Display Function : touch screen will display whole argon gas filling processing , you will know very clear how much already argon gas filed inside

We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When it reach the data customer set ,It will alarm and stop automatically

3, GAS filling from bottom and it was designed separately for saving gas .

A: The pressing part was devided into 4 part , (per 800mm), when the small size glass(less than 800mm) pass through the pressing and gas filling section, ,only one part work.if more than 800mm but less than 1600mm,it will two parts work, no need the whole press and gas filling section work. it can save the argon gas.

B: On the vertical side of the side-baffle there sensors can recognize how much the percentage there.When the argon gas the percentage is reach the value that we set in . the gas filling resource will stop. So it can save a lot of argon gas. When argon gas fill every piece of double glass there will have three sides close,(the bottom ,two side,only the top open,and on the vertical side there have sensor, when the argon gas reach the somewhere and sensor recognize it reached the value that we set up ,it will stop automatically),it is a very good design.

5, Sparklike detection device, a professional and Authoritative device

6, 2 piece IGU Automatic argon gas filled in one time , high filling speed , it improved 50% working efficiency, Saving argon gas. (standard size no more than 1.5m)

7, normal gas filling line 27s/m2 34s/m2
