Insulating Glass 2500mm * 3500mm Inert Gas Filling Machine

Manual Argon Gas Filling Machine For Insulating Glass Production Line

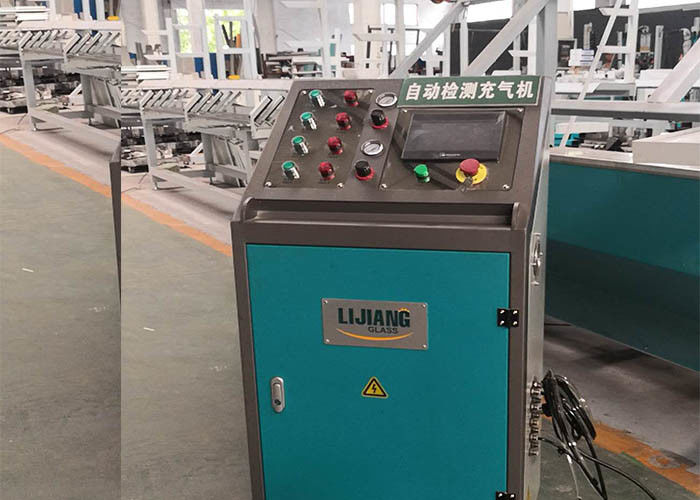

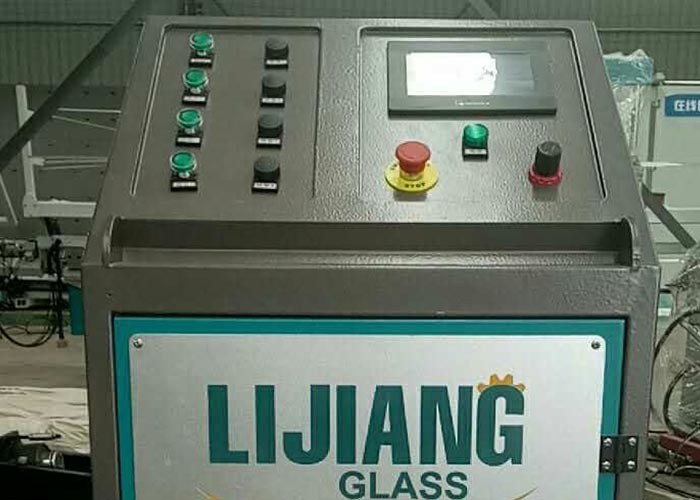

Manual Gas Filling Machine LJCJ02N

Main feature

• It is used for filling Argon into insulating glass

• High effectively, allowed for four pieces of IGU

• When the gas is full, it will alarm and stop automatically

• Can set and display the data of gas value

Main feature:

• Extra long (2500mm * 3500mm) insulating glass can be compressed twice

• Adopt a conveyor belt to transfer the glass and use servo motor to push the glass

• Presser plate can be opened for easy maintenance

• Adjustable structure press machine to guarantee long lasting service life

• High sealing effect and automatic filling of argon gas with high argon content

• Zones are set up to fill different sizes of glass with follow-up sealing methods to reduce argon loss

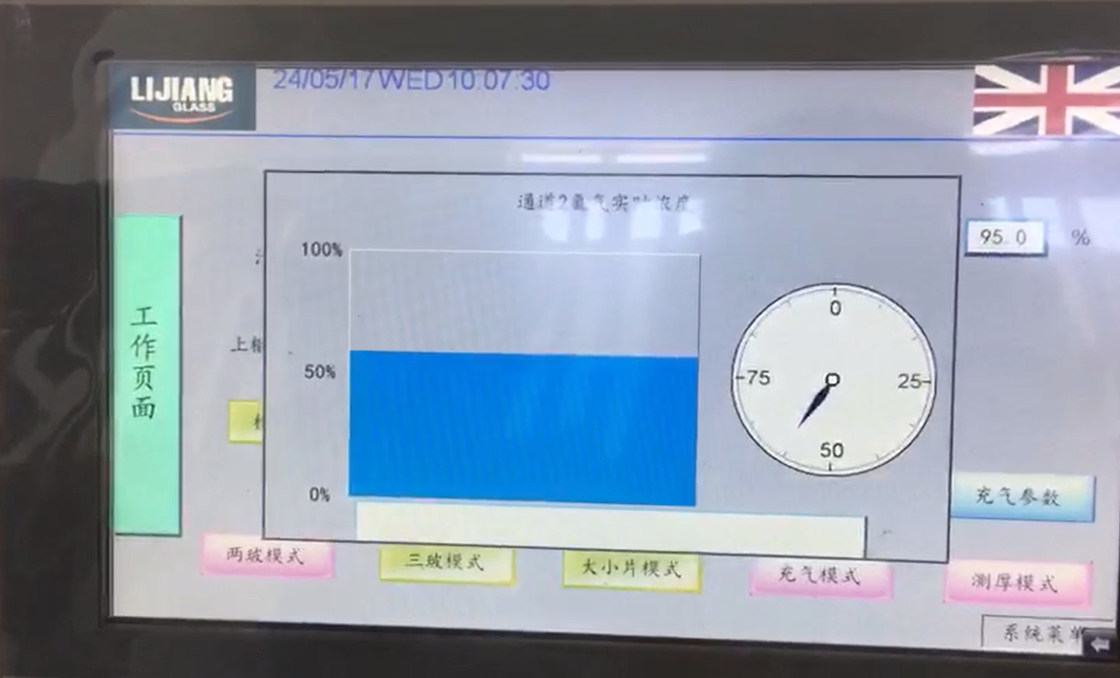

• Can set the value of gas and show the process of filling gas on the touch screen

• Fast reaction sensor for permanent control of the gas filling process

• Gas concentration can reach 90% or more

• No need to drill holes in the spacer frame

• Argon is the standard gas

• 07 discharge section

• Storage glass

• Can be connected to sealing machine

Technical data

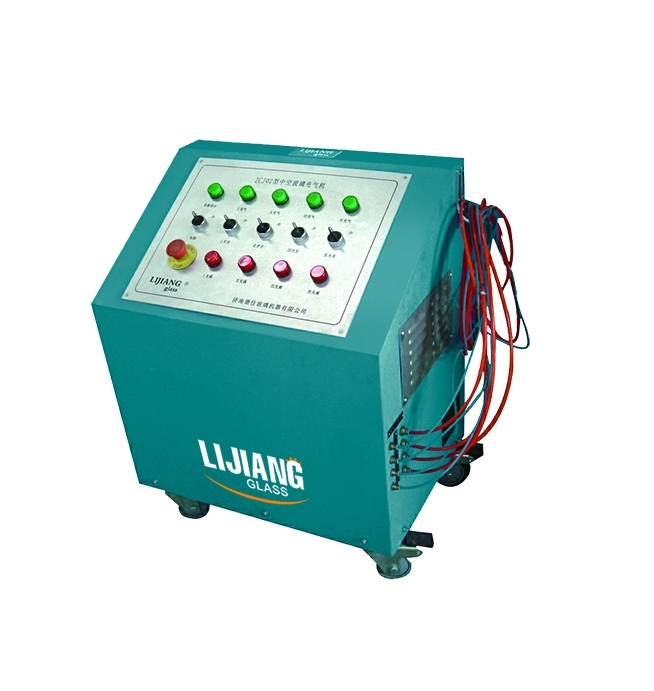

Manual Gas filling machine LJCJ02

Main feature

• It is used for filling Argon into insulating glass

• High effectively, allowed for four pieces of IGU

• When the gas is full, it will alarm and stop automatically

Technical data

Freezer LJSGF01

Main feature

• A manual glue gun is used to store the gun when it stops working during the process of gluing insulating glass

• Store at low temperature to prevent sealant from hardening

• Applicable to polysulfide and silicone

• Effectively reduce waste when cleaning glue

Technical data

Edge finish machine LJKBM95

Main feature

• It is used for polishing single glass, to prevent to hurt workman from sharp glass edge
• It adopts type of ‘x’ to polish the up and down edge at the same time
• Easy operating, simple and flexible

Technical data

Main feature

• Adopts Siemens PLC control system

• Molecular sieve can be 0.5-0.9mm or 1.0-1.5mm size

• Simple and visible touch screen interface

• The height of the machine can be adjusted according to the size of the spacer frame.

• Automatic loading and replenishment of molecular sieves

• Double tube for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drill, fill and seal

• Core parts are imported brands

• Use a large plastic barrel to save feeding time and improve efficiency (optional)

• Head protection device (optional)

• Filled arc frame (optional)

• Fill large particle molecular sieve

Technical data
