Place of Origin:
China
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJZK 2535

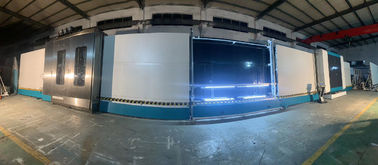

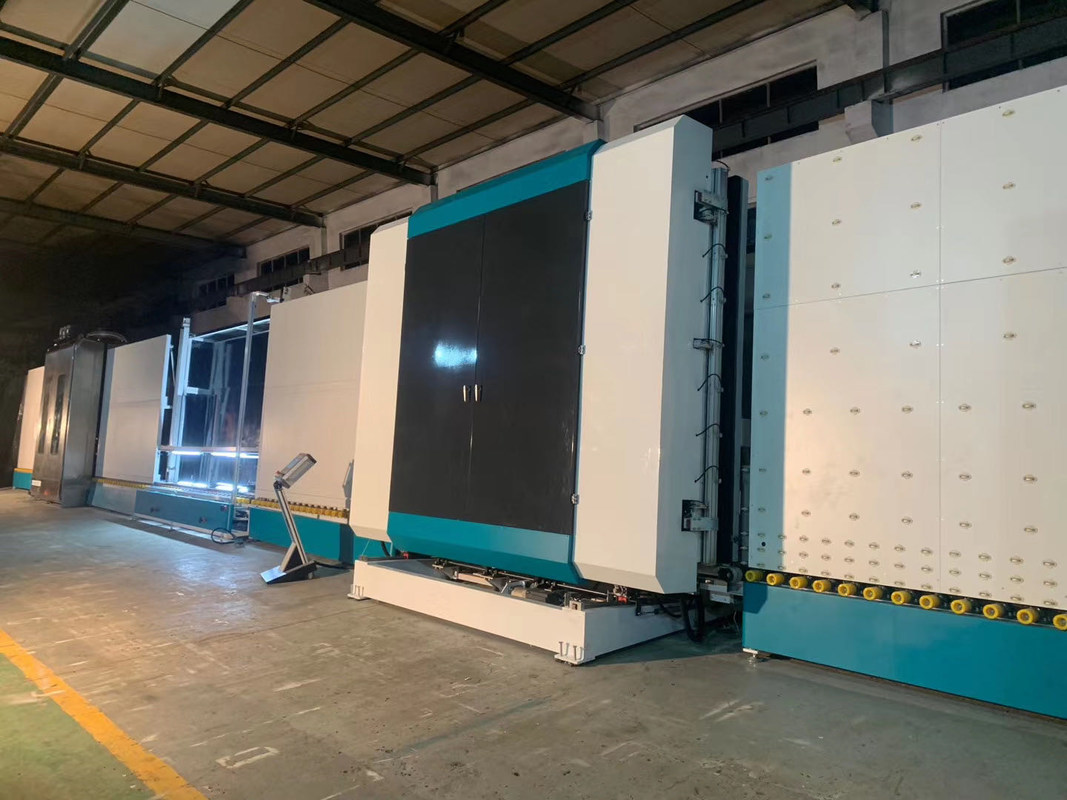

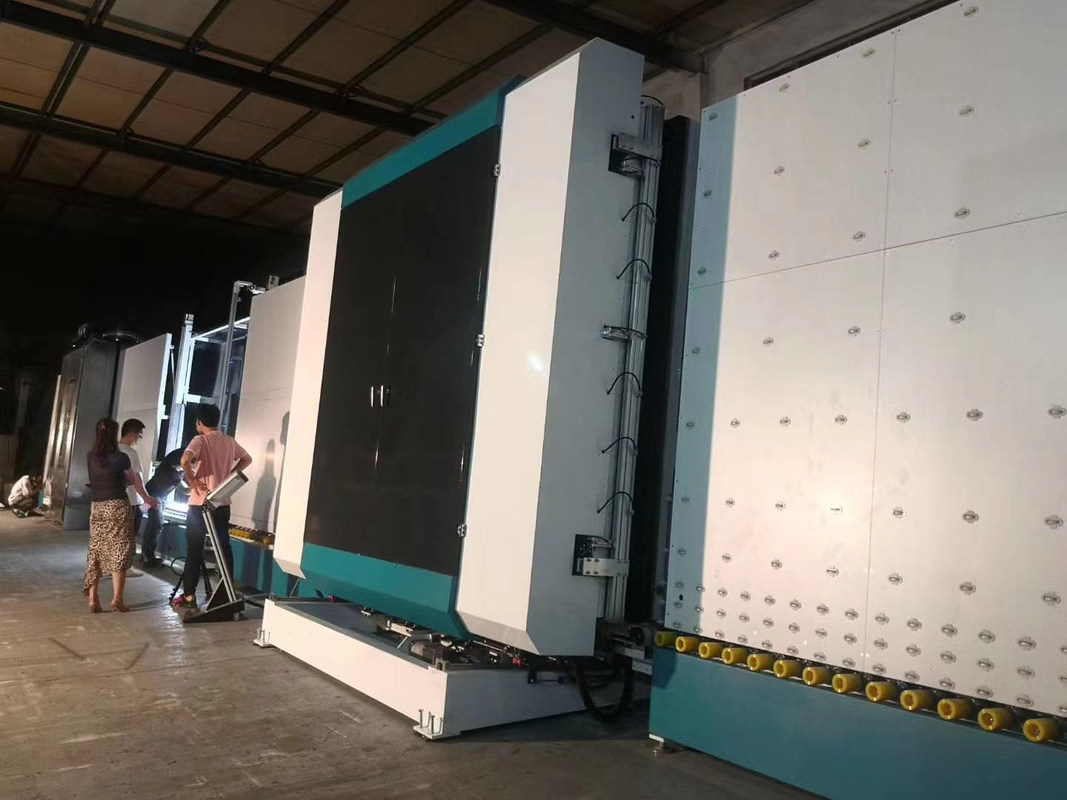

Vertical Low E Insulating Double Pane Tempered Glass Making Machine
Insulatiing glassware can complete the following surfaces: glass cleaning, aluminum laying, double glazing, triple glazing, glazing and double glazing.
Insulatiing glassware is a special material in the production of aluminum foil, which has the advantages of small footprint, high efficiency, reliable frosting and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, easy and intelligent operation;
2, the world famous brands of key components, ensure stable performance and long service life;
3, Designed for high-quality glass processing, such as reflective glass, low-e glass, tempered glass and laminated glass;
4, large scale of glass processing, various models and customizations available;
5, high output capacity, 1000 pieces in one business day;
6, workable for double layer, triple layer, stepped sheet and non-standard shape insulating glass;
7, Automatic argon gas filling during the glazing assembly process;
8, PLC control system, screen touching;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
