Cantilever Lifting Device 400KG Insulating Glass Production Line

Customization Glass Cantilever Crane with four lifting suckers 400KG LJXJ400 and CNC Glass cutting Table

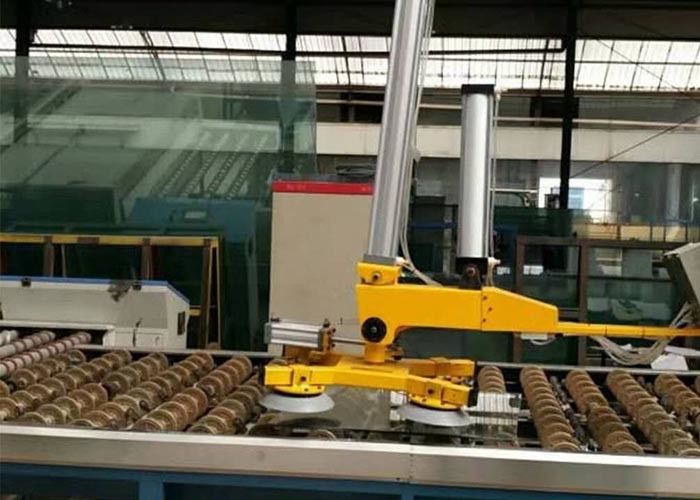

Glass Cantilever Crane with lifting sucker

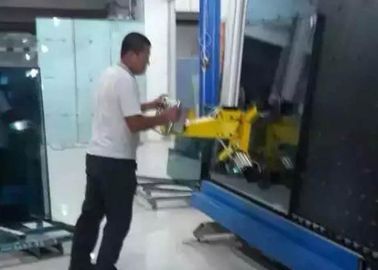

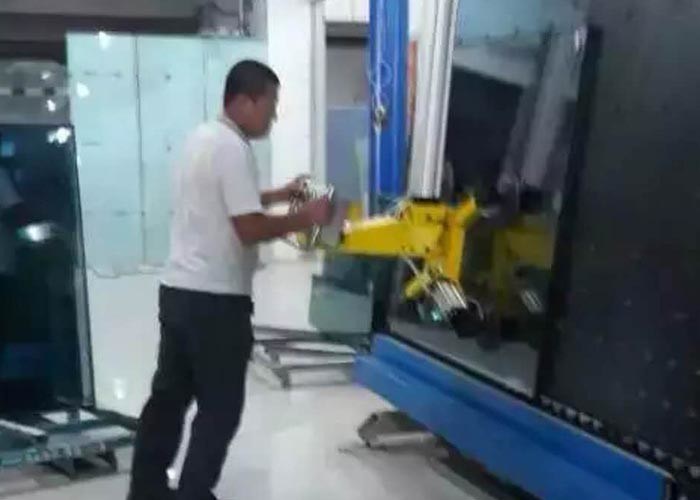

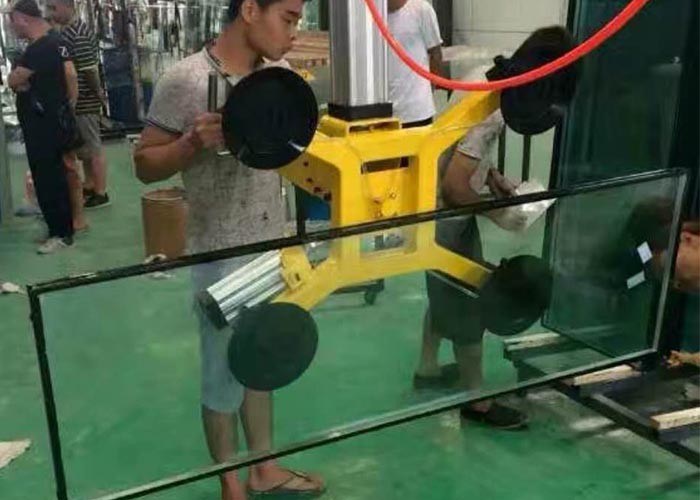

1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.

Parameters:

Useing For

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

 Air-floated breaking table

• Equipment Composition:

It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system.

• Electrical part:

• ,Contactors: Renmin/Zhengtai
• ,Circuit Breaker: Renmin/Zhengtai
• ,Button: Renmin/Zhengtai
• ,Main solenoid valve: Airtac
• ,Other Pneumatic Components: Deke/Shengguan
• ,Fan:Liyuan

• Mechanical part；

• ,Working table: Waterproof High Density Plate
• ,Table: Imported industrial felt (black)
• ,Breaking bar: solid wood (natural color)

Note: Depending on the delivery date and technical improvement, the production company reserves the right to replace the purchased parts of the same brand.

• technical parameter；

• ,Breaking bar: 3+1 type
• ,Table Size: 6300×3500mm
• ,Glass thickness:3-19mm
• ,Power: 8kw
• ,Table height: 900 + 20mm
• ,The line realizes the functions of full-automatic loading,conveying, automatic cutting machine and air-floated breaking.
• ,Operator: Upload: 0 people (full-automatic stage without personnel operation);

• Cutting: 1 person (knows basic computer operation, has glass cutting experience);

  Fragmentation: 2 persons (with glass braking experience)

•
• ,Feature:

• A. No special requirements for operators, simple operation and easy management;

  B. Safe, efficient and fully automatic mounting table effectively ensures the safety of operation and prevents glass from breaking. The fully automatic conveying device reduces the workload of operators.

  C. High cutting accuracy, good stability, can meet all kinds of production needs, effectively guarantee the processing quality of the later process and reduce the processing difficulty;

  D. High IQ cutting machine optimization software can greatly improve glass utilization rate and reduce production costs. Powerful gallery can ensure that equipment can cut various shapes of glass to meet the cutting requirements of various orders.

  E. The automatic oil injection and pressure adjustment function of the cutting machine can effectively ensure the stability and cutting effect of the cutting machine glass.
