Product Details:
|
| Name: | Cantilever Lifting Equipment | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 500KG | ||
| High Light: | 500KG Cantilever Jib Crane,Vacuum Cantilever Jib Crane,500KG cantilever lifting equipment |
||

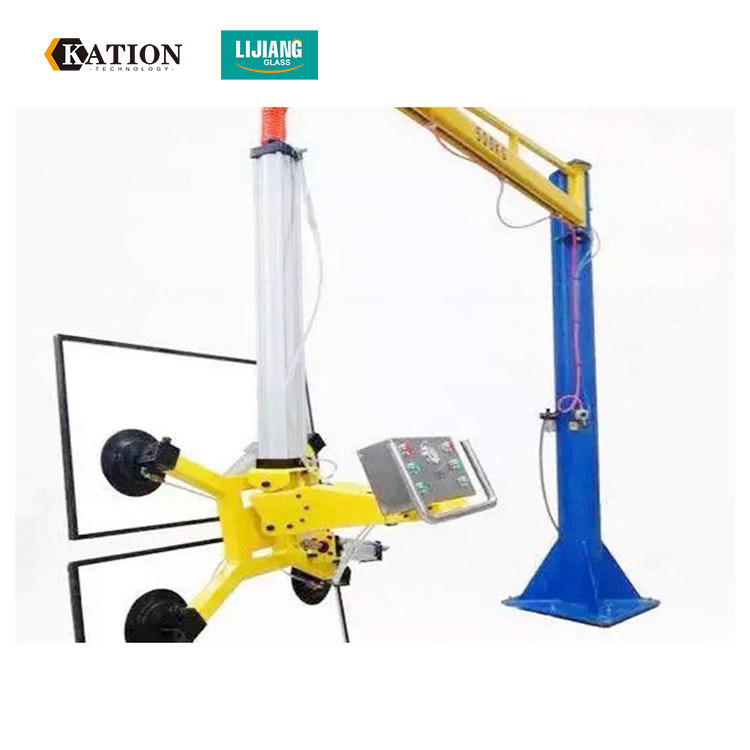

Customization Glass Cantilever Crane with four lifting suckers 500KG LJXJ500

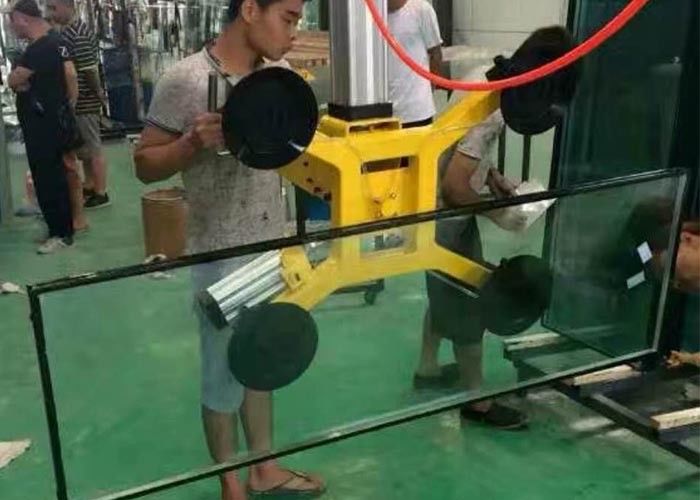

Glass Cantilever Crane with lifting sucker
1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
Parameters:
| Max Glass weight5 | 00KG | |
| Rotation angle |
Rotate 180 |
Left and Right Up and Down |
| Suction cups | 4 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,

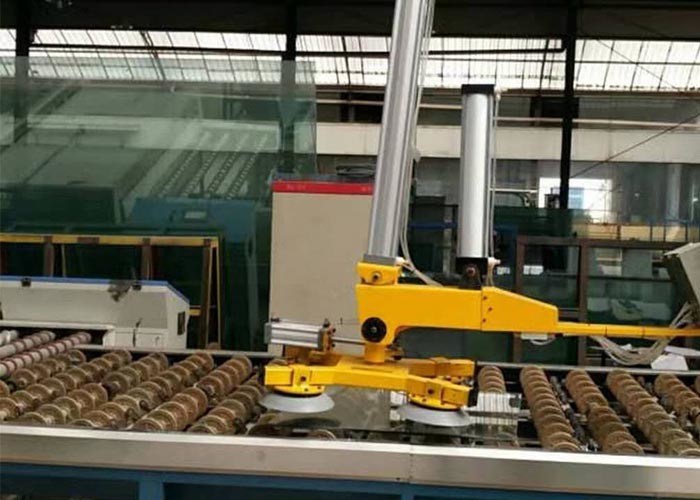

- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1100mm*1100mm*3600mm |
Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
