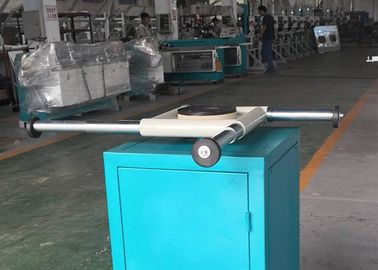

1000Mm Glass Turning Table For Rotating Glass When Coating Silicone Sealants
Rotating Table Machine
Main feature:
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
- Working environment Parameter Unit Remarks
- Working environment temperature 15-40℃
- Carry/deposit temperature -20-55℃
- Carry/deposit humidity 30-90%
- Basic characteristic
- Input voltage AC400V±10%,60HZ
- Input power 120 W
- Rotated speed 6.5 r/min
- Air consumption 0.5-0.8 Mpa
- Max glass size 2000*1500 mm
- Min glass size 200*200 mm
- Dimensions 600*450*950 mm
| Power supply |
380V 50Hz |
| Total power |
0.37kw |
| Operating dimension |
1500*1500mm / |
| Dimension |
600*550*985mm
|
Attention :
1. When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.
2. Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.
Maintenance :
1. New machine through revolving of a period of time after, should open the plank, check whether each tight firmware loosen or not moves, laying equal stress on the new tight.
2. Make to complete each time, want to clean dust and gum clearances of the machine, combine to cover the turn over dish, keep dust from falling into sucker.
3. Prop up set and prop up the pole should periodically draw the lubrication grease, resisting rust.
4. The periodical check electricity connects whether line loose or not moves, and connect the dependable of the ground.
More introduce:
1,Usage
The Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.
2,Main technical parameters
3,Main construction
This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.
3.1 Revolve prop up the device
Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.
3.2 Spread to move the device
This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.
3.3 Spirit carries control system
This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.
