Place of Origin:
CHINA
Brand Name:
LIJIANG
Certification:
CE
Model Number:
LJST02A
Video

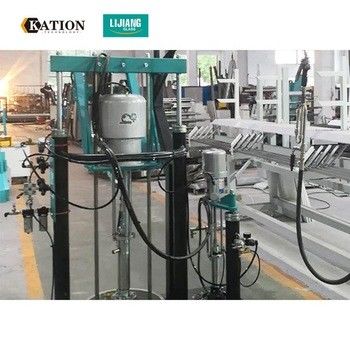

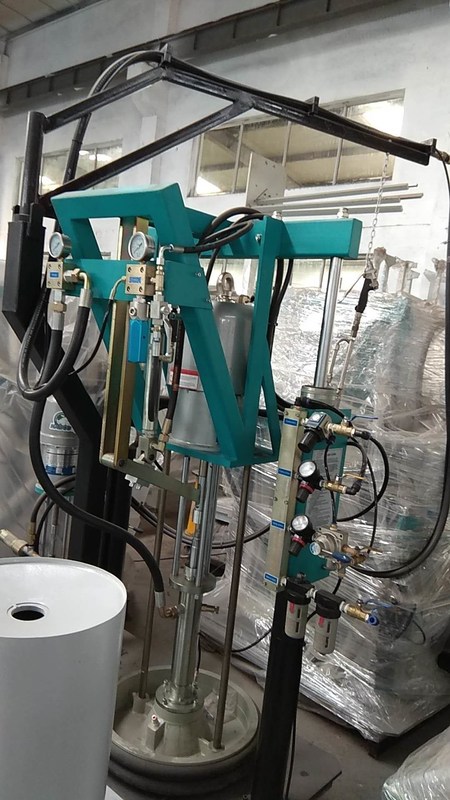

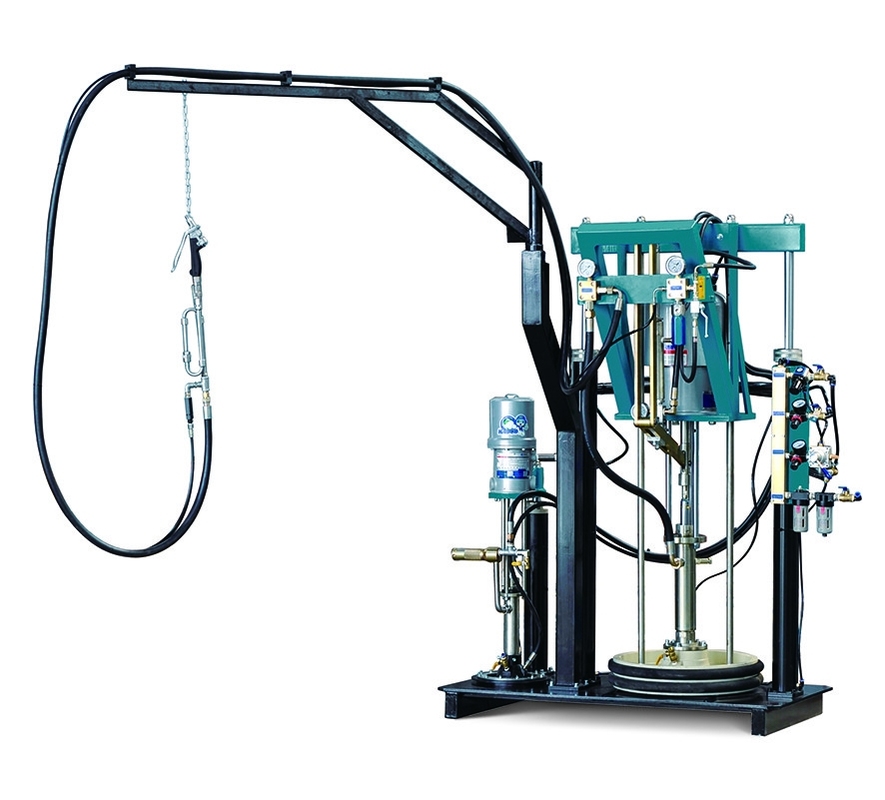

Description of Manual Sealant-spreading Machine
A two-component gluing machine is used to apply the second layer of sealant to the insulating glass.
This is special equipment used to spread two-component polysulfide glue and / or two-component silicone structure glue for aluminum type insulating glass or curtain wall glass.
The putty spreading machine is characterized by uniform mixing and continuous stability of the extruded glue, good spreading effect and high production efficiency.
A special and convenient mixed device can ensure the high-quality mixing of two-component polysulfide glue and / or two-component silicone structure glue.
Advantage of sealant spreading machine
• Imported motor system to improve equipment efficiency
• Imported sealant gun, stainless steel mixer
• High pressure protection device
• Anti-reverse control structure
• The mixed rate detector can control the rate of two types of glue
Main technical parameter of Silicone sealant spreading Equipment
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
The feature of sealant spreading machine
1.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
2.Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds of sealant ,avoid incomplete mixing .
3.Sealant extruder machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
4.The rotating arm is equipped with a universal device, flexible and portable .
5.Pneumatic control ,split type structure ,easy to operate
Related products
Sealant-spreading machine LJST03
Main feature
• Use cylinder to provide power
• China sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Rotated Sealant Spreading Table LJSK02
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
