Product Details:
|
| Production Name: | Rotaing Table | Using: | For Manual Sealants Spreading Machine |
|---|---|---|---|
| Max Glass Size: | 1500mm*1500mm | Optional Size: | 2000mm*2000mm |
| Application: | Using For Coating Hollow Glass | Warranty: | 1 Year |
| High Light: | 280mm Coating Rotating Table,0.6MPa Coating Rotating Table,280mm small extruder machine |
||

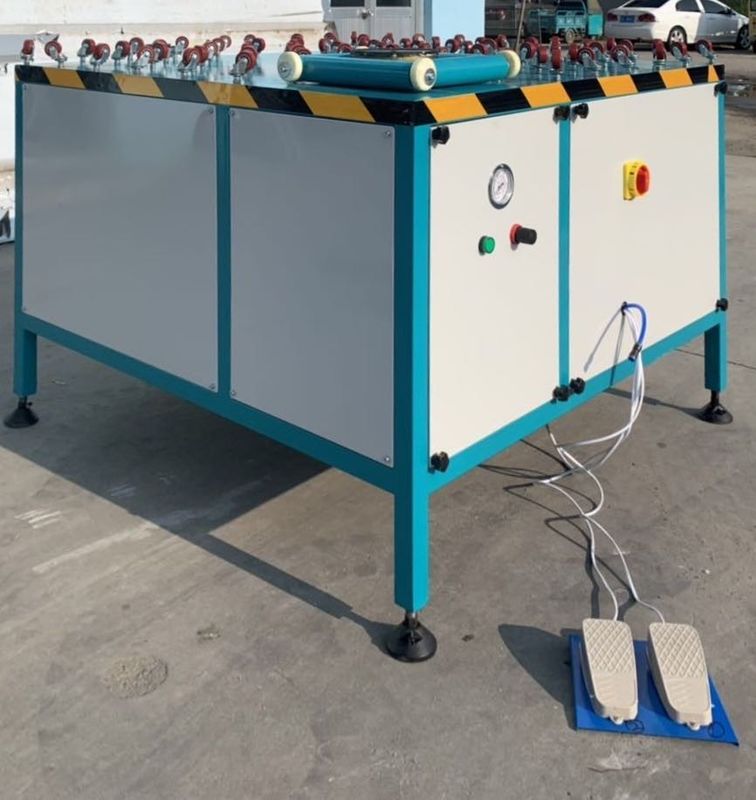

1000Mm*1000Mm Rotating Table For Manual Silicone Sealants Spreading Machine

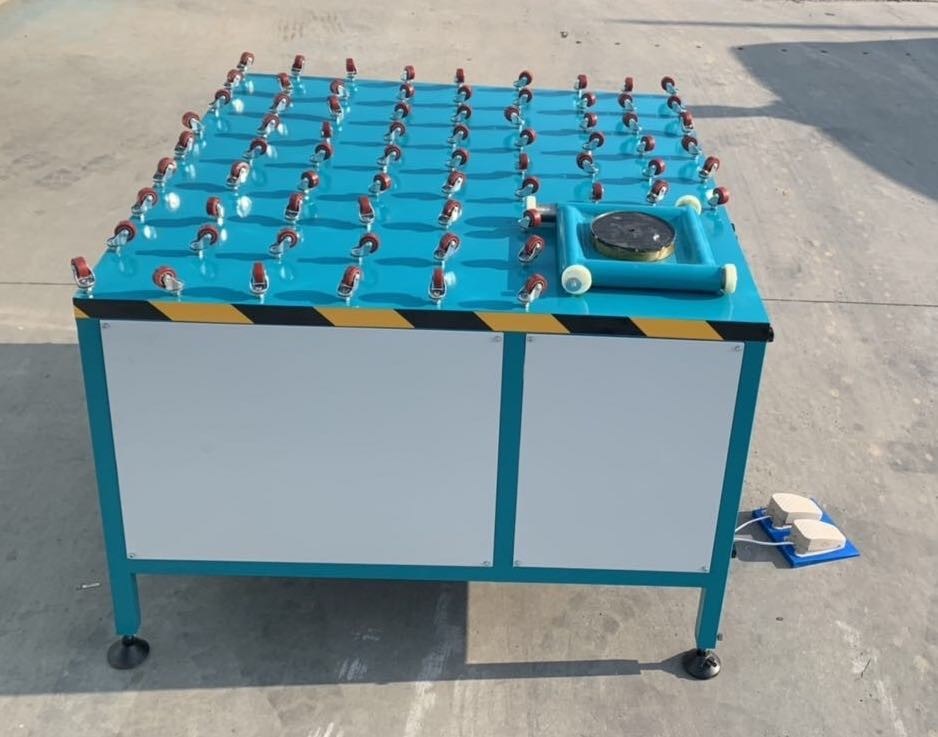

This rotating table is used for making double glazing glass units with manual silicone sealants spreading machine by sealing gun.The base rotating table does not has rollers. Other sizes of the rotating table have rollers for supporting and rotating big size. The rotating table has different size. The base rotating table is suit for about 1000mm*1000mm, 1500mm*1500mm, 2000mm*2000mm and 2500mm*2500mm.
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Rotating Table Machine
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
1,Usage
LJZT03 Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.
2,Main technical parameters
Working environment Parameter Unit Remarks
Working environment temperature 15-40℃
Carry/deposit temperature -20-55℃
Carry/deposit humidity 30-90%
Basic characteristic
Input voltage AC400V±10%,60HZ
Input power 120 W
Rotated speed 6.5 r/min
Air consumption 0.5-0.8 Mpa
Max glass size 2000*1500 mm
Min glass size 200*200 mm
Dimensions 600*450*950 mm
3,Main construction
This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.
3.1 Revolve prop up the device
Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.
3.2 Spread to move the device
This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.
3.3 Spirit carries control system
This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.
3.4 Electric appliances control system
This system consisted the spread to feel machine, after the electric appliances, electric appliances a piece that break the machine and can operate constitutes,working dependable, operation is simple, automation the degree is high.
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Edge finish machine LJKBM95
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 3kw |
| Dimension | 2000*1200*820mm |
