Product Details:
|
| Production Name: | Rotaing Table | Using: | For Manual Sealants Spreading Machine |
|---|---|---|---|
| Max Glass Size: | 1500mm*1500mm | Optional Size: | 2000mm*2000mm |
| Application: | Using For Coating Hollow Glass | Warranty: | 1 Year |
| High Light: | 1000mm*1000mm Sealants Spreading Machine,Rotating Sealants Spreading Machine,1000mm*1000mm glass Rotating Table |
||

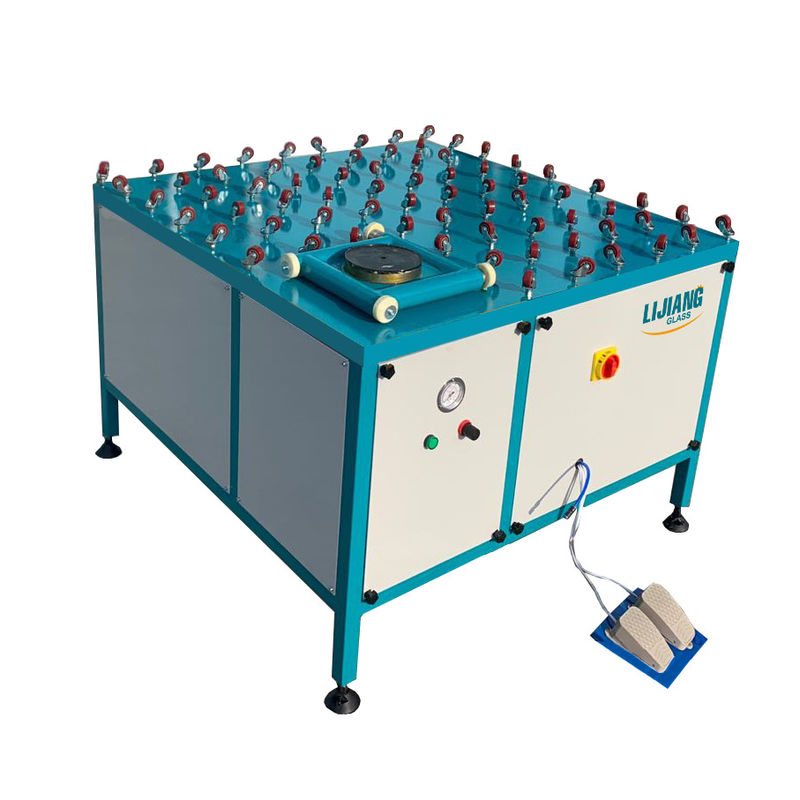

1000Mm*1000Mm Rotating Table For Manual Silicone Sealants Spreading Machine

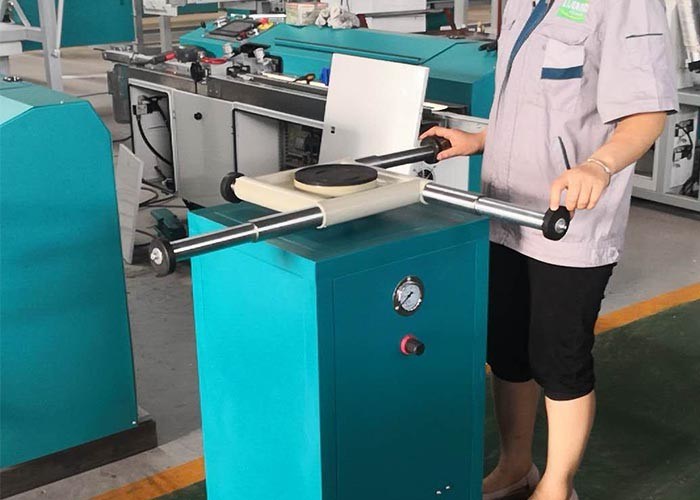

This rotating table is used for making double glazing glass units with manual silicone sealants spreading machine by sealing gun. The rotating table has different size. The base rotating table is suit for about 1000mm*1000mm, 1500mm*1500mm, 2000mm*2000mm and 2500mm*2500mm. The base rotating table does not has rollers. Other sizes of the rotating table have rollers for supporting and rotating big size.
Main feature
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Sealant-spreading machine LJST03
Main feature
• Use cylinder to provide power
• China sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
