Product Details:
|
| Certification: | CE, CE& SGS | Name: | Low-e Insulating Glass Production Line Auto Washing Drying Pressing Assembling Line |
|---|---|---|---|
| Total Power: | 40 KW | Washing Speed: | 2-10m/min |
| High Light: | 50mm Insulating Glass Line,Washing Insulating Glass Line,50mm glass making machine |
||

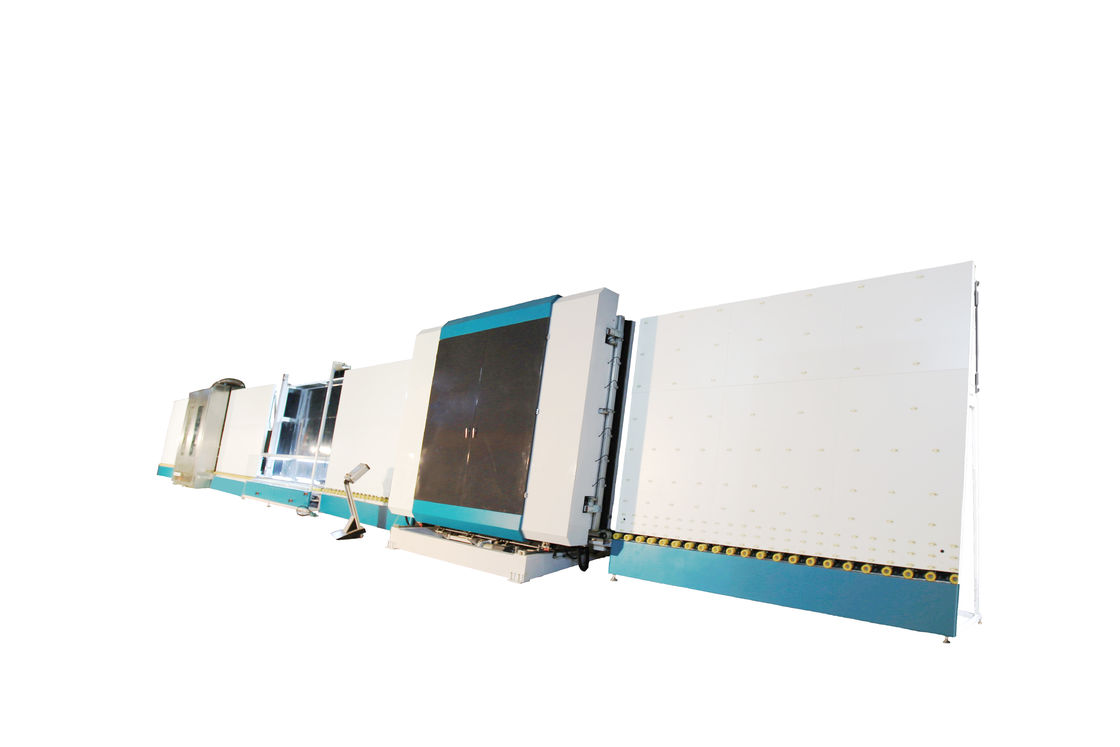

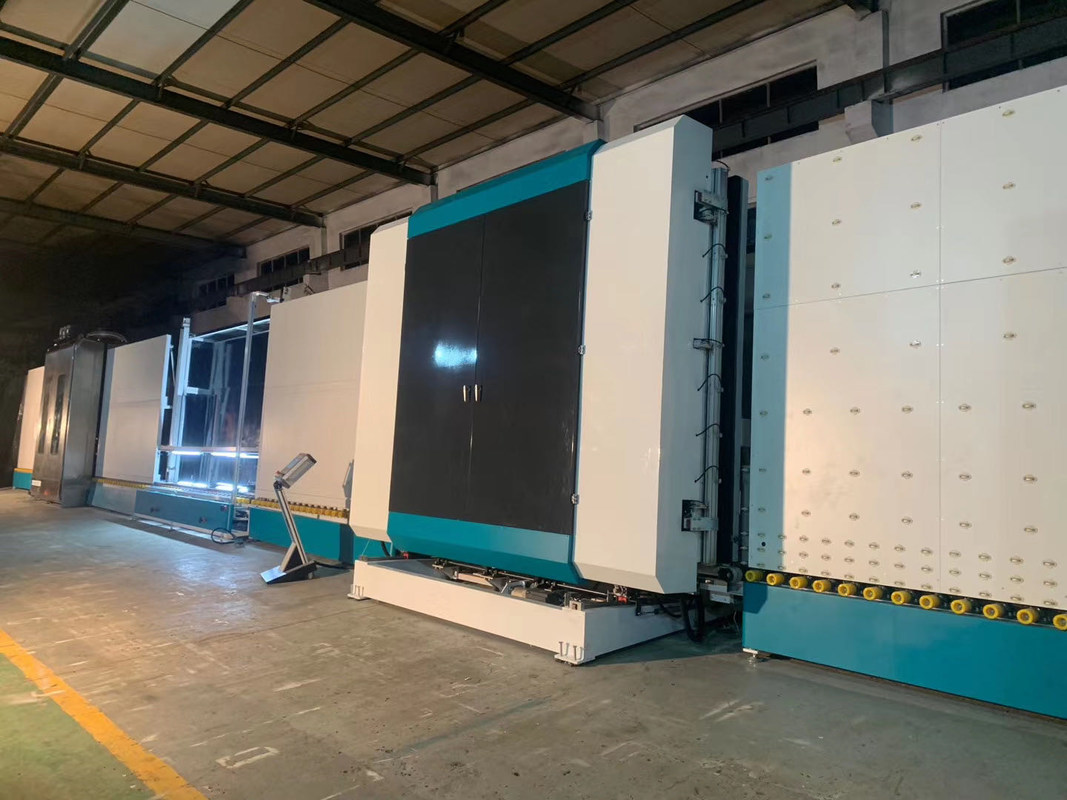

Low-e Insulating Glass Production Line Auto Washing Drying Pressing Assembling Line
The insulating glass machine can perform the following functions: glass cleaning, aluminum frame installation, ordinary double glazing, ordinary triple glazing, profiled glass and second pressing double glazing.
Insulatiing glass machine is a dedicated aluminum strip insulating glass machine, which has small size, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart operation;
2, famous brand of key components, ensure stable operation and long service life;
3, Designed for high-quality glass processing, such as tempered glass, low-E glass, tempered glass and laminated glass;
4, Large glass processing glass, various models and customization available;
5, Large output capacity, 1,000pcs output per working day;
6, Can be used for double layer, triple layer, stepping sheet and abnormal shaped insulating glass;
7, Automatic filling of argon air gas during the sheet glass assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
