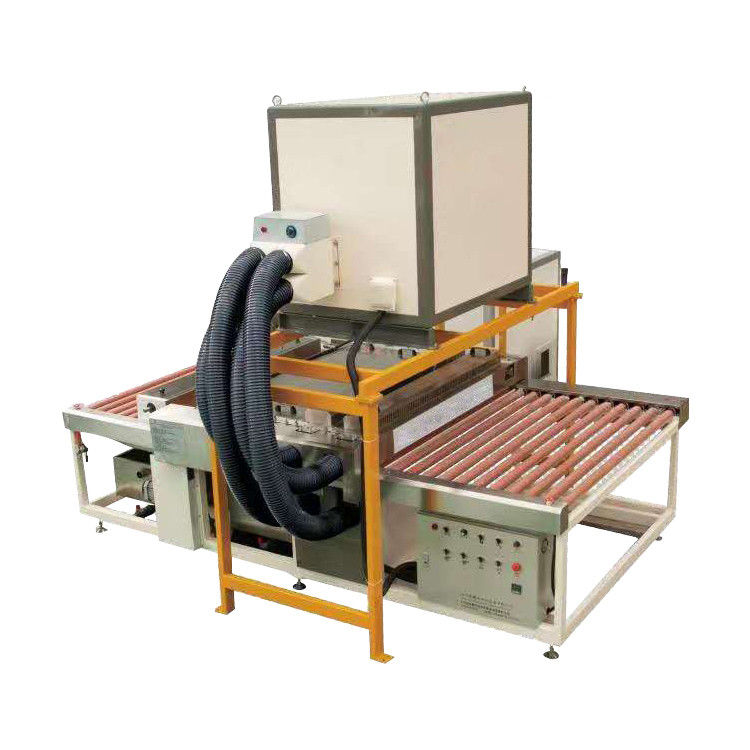

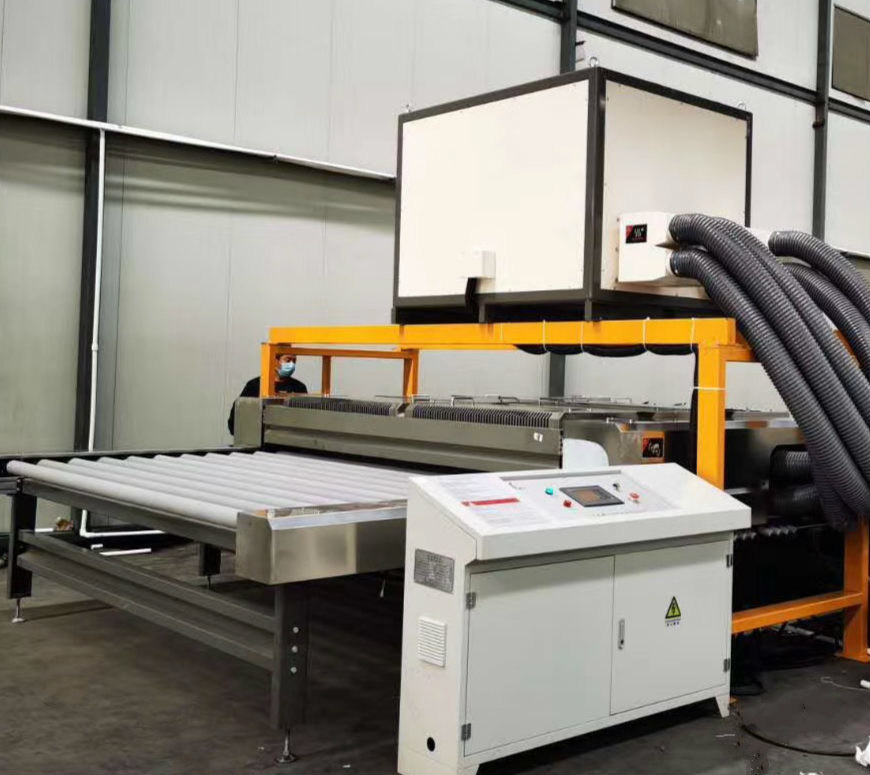

CP-2500A Glass Washing Machine CP-2500A is used to clean and dry the upper and lower surfaces of ordinary flat glass and high-quality low-e glass. It consists of a feed section, a cleaning and air drying section and a discharge section.

2.Main feature of glass washer

• High efficiency, energy saving 70%;
•  Aluminum alloy assembly structure, no waste concept, permanent use,
•  The rubber roller is made of vulcanized rubber with a stainless steel shaft;
•  The washing part in contact with water is made of stainless steel;
•  The remaining sheet metal parts are sprayed with advanced mechanical paint or powder;
•  Three pairs of brushes (Ø150mm), stainless steel shaft structure (low-e glass, ordinary coated glass and daylight coated glass can be cleaned without damaging the coated surface);
•  Two pairs of special stainless steel and aluminum alloy air knives are configured, with high wind power and good air drying effect, with heating system (with temperature control device, optional opening and closing);
•  The fan is equipped with an air filter in the air inlet room, which has a large air volume and a good air drying effect. The entire fan box is installed in the upper part of the workshop, and an air filter is installed on the side for easy inspection and cleaning.
•  In the cleaning department, the overall lift of the air duct personnel, the maximum lift: 350mm, easy to clean and maintain;
•  Mechanical button control, digital display of the washing machine, simple operation, easy operation and easy maintenance;
•  Outside the water tank of the washing machine, it is convenient to clean, change and inspect the water tank, so that the washing effect of the washing machine is cleaner.
•  Gear drive, frequency conversion speed regulation, digital display main drive, the rotation of the washing section brush roller is driven by the independent belts of the upper and lower motors respectively, the frequency conversion speed regulation is stable, the service life is long, and the cleaning of special glass with high requirements is realized;
•  Optional PLC control, touch screen display. It is convenient for workers to operate and maintain, and can be connected to all edging machine manufacturers without gaps. (Purchase separately if necessary)

3.Origin of motor and main accessories:

4. Technical parameters:
