Glass Cantilever Crane 500kg Insulating Glass Production Line

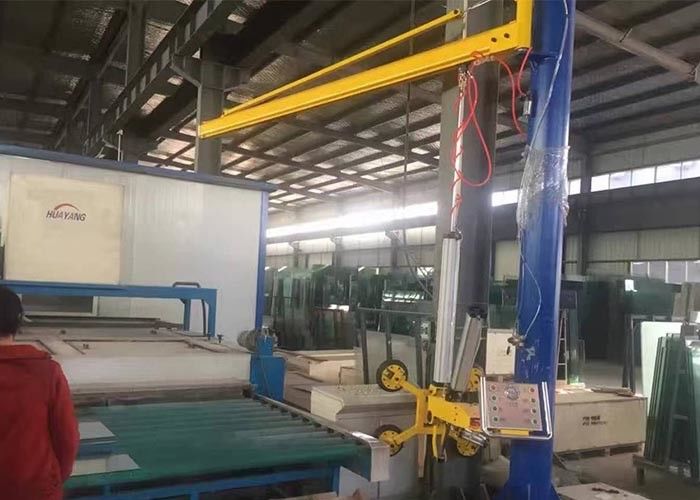

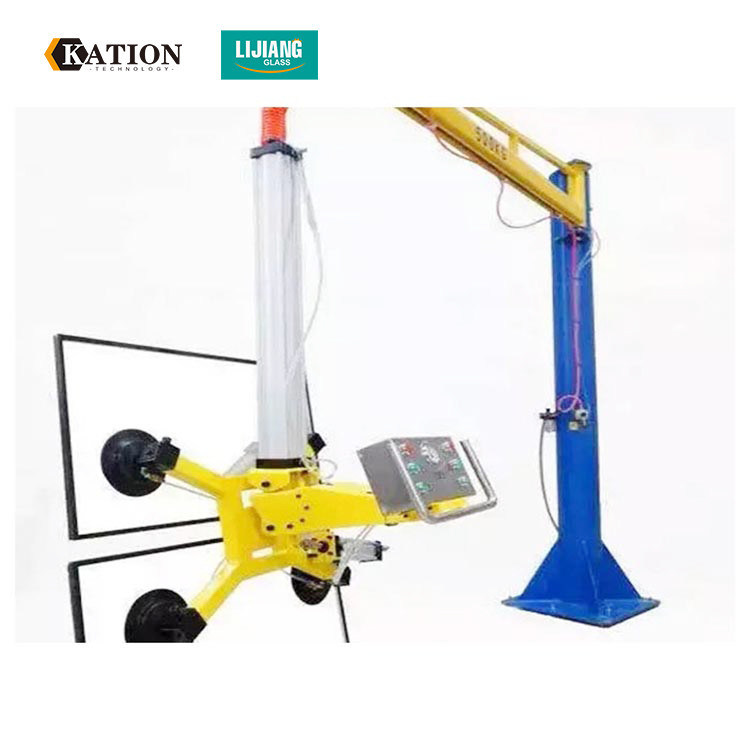

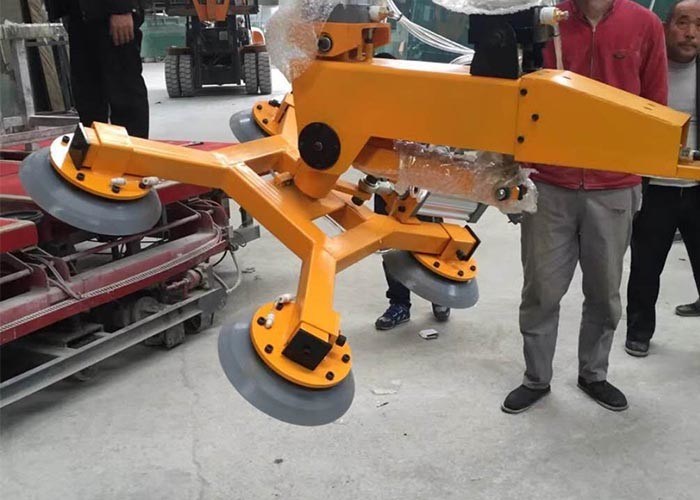

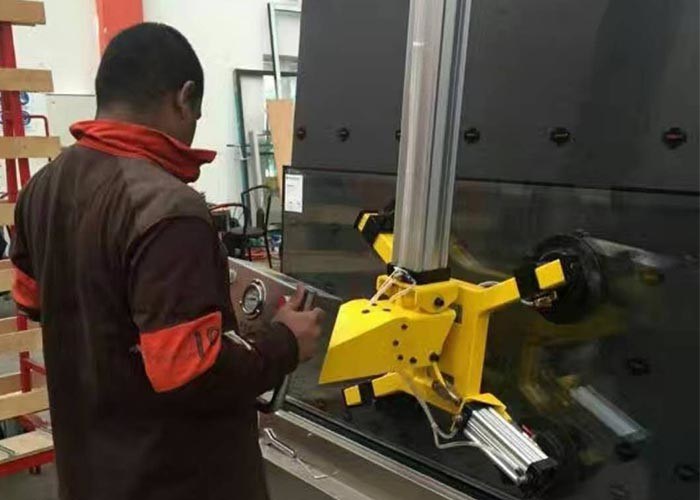

Glass Cantilever Crane with lifting sucker

Parameters:

Parameters:

Parameters:

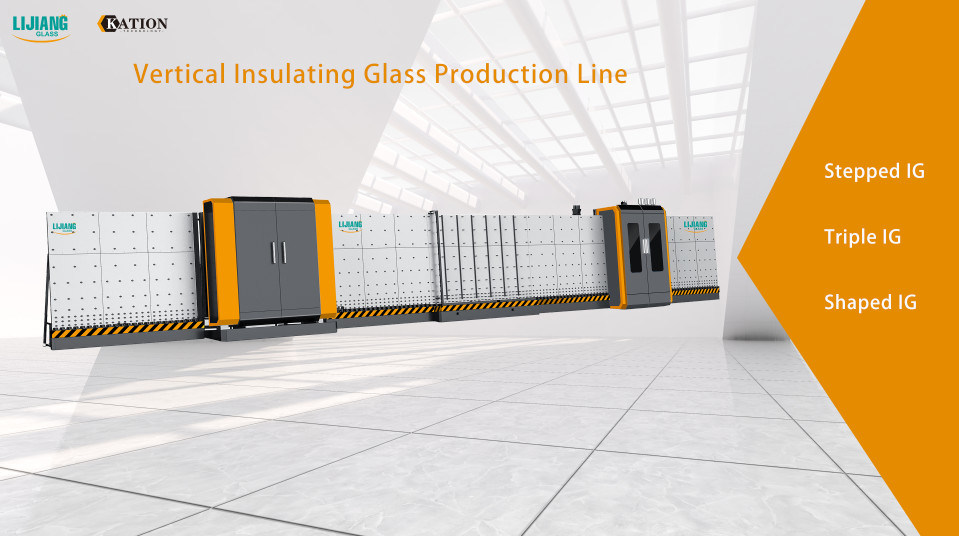

LJBZ2025 Vertical Automatic Insulating glass production line

APPLICATION

As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

1. Low-e glass sensor

This sensor is installed before washing machine.It can automatically recognize Low-e glass,preventing the glass from dropping Low-e surface.

2. Conveyor roller

The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.

3. Washing&Drying machine

The whole washing &drying machine adopts stainless steel,including the plate and interior spare parts.And some slider block are copper.

3.1 Washing part

It has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .

Noise reduction device

The noise can be controlled below 90 decibels by using nylon gear and sponges.

4.1 Pressing way

It presses IGUs by hydraulic station with pressure, it guarantees the precise pressure.

4.2 Energy saving of pressing function

It adopts 3 micro switches,which divide the pressing part into 4 sections.

Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.

The work area can be divided in this way.

4.4 Stepped glass(Optional)

It also can make stepped glass with a servo motor.

5, touchscreen and electric box.

Main Parameters:

Main components:
