Product Details:
|
| Name: | Glazed Glass Sealant Sealing Line | Max Size: | 2500*4000mm |
|---|---|---|---|
| Working Speed: | 5-40m/min | Glass Thickness: | 12-50mm |
| Advantage: | Shape Glass And Stepp Glass | ||
| Highlight: | 40m/min small extruder machine,glass sealant dispensing equipment |
||

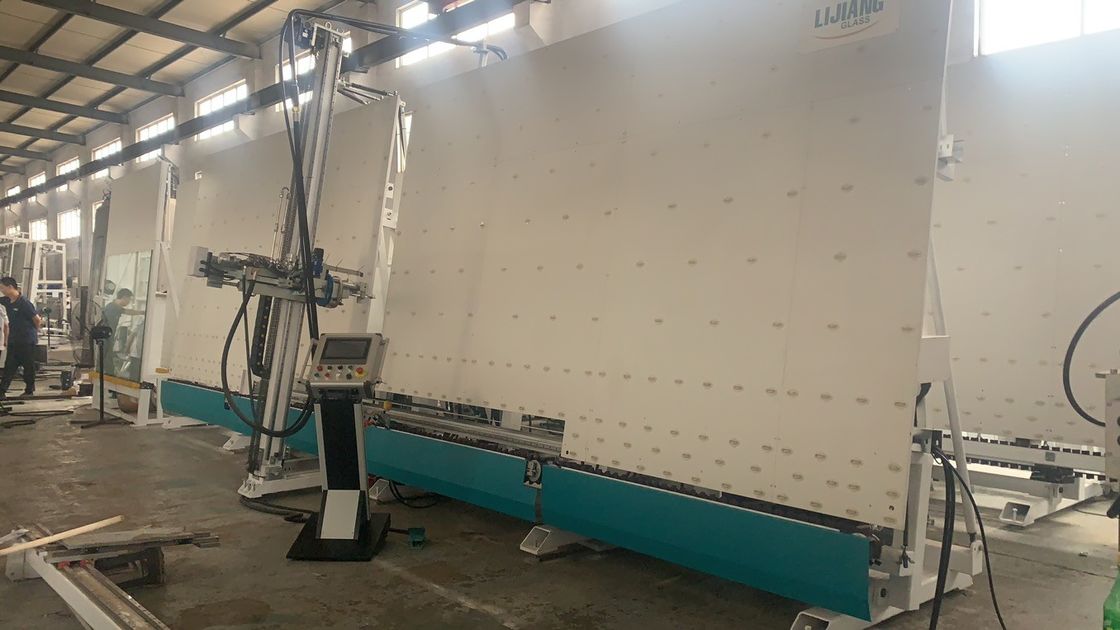

►Description of Glazed Glass Sealant Sealing Line

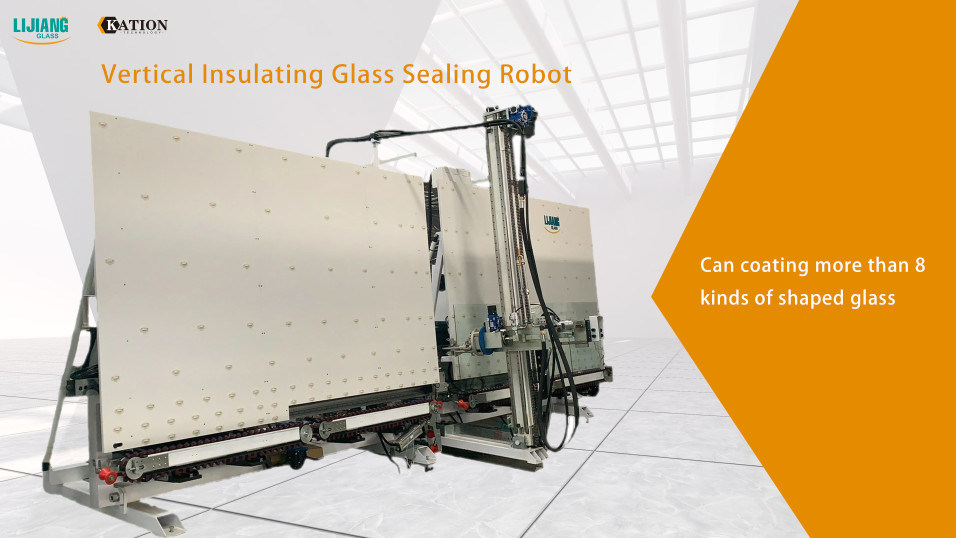

This type of machine is a full automatic and high-efficiency sealing robot for insulating glass making. Automatically measure glue depth,glass size and glue speed with linear adjustment.Sealing line Can coating more than 8 kinds of shaped glass,include Trapezoidal.Semicircle. Parallelogram. Circular. Polygon, etc.Single-function parts are equipped with manual functions, easy adjustment.
► Detail of insulating glass sealant robot
►►►Tow pump syetem( optional )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
►►►Electrical parts Showing
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
►►►Sealing head showing
► Feature of insulating glass sealing machine
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Adopt Japan ANCHUAN servo control system with stable performance
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment
l Stepped IG units with four sides (Optional)
l Shaped IG units (Optional)
l Double and Triple IG units
►Main technical parameter
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
Related product
Butyl Extruder Machine LJTB 01
Main feature
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
