Product Details:
|

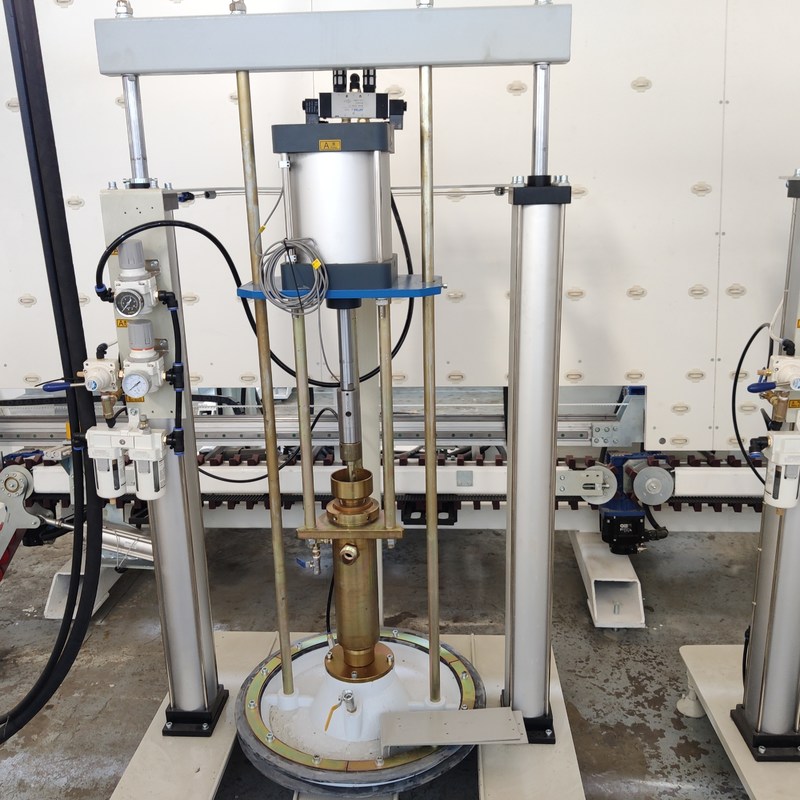

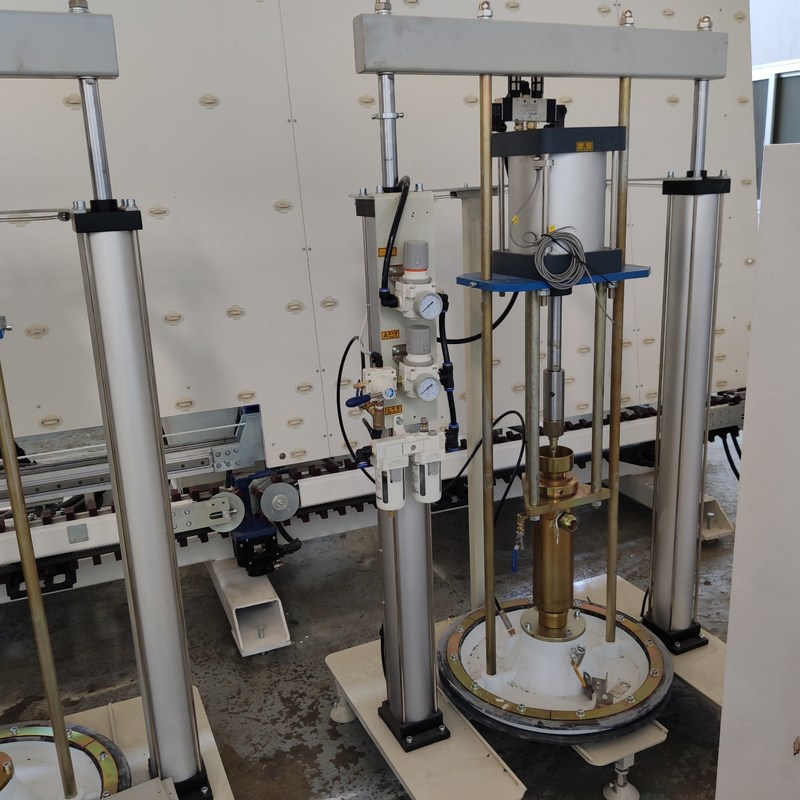

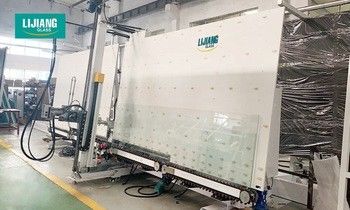

Name: | Vertical Insulating Glass Sealing Robot | Overall Dimension: | 8700mm*2000mm*3500mm |
---|---|---|---|
Type: | Horizontal | Model: | LJTJ2540 |
Color: | Customers' Request | Min Glass Size: | 170mm*400mm (2000mm Machine) |
Max Glass Size: | 2500mm*3500mm | Control System: | SIMENS |
Brand: | LiJiang | Voltage Power: | 3P 380V 50HZ |
Plane Angle: | 6°- 9° | ||
High Light: | 9° glass sealing machine,Sealer insulating glass machine |
Insulating glass wire automatic sealer, color can be customized, additional functions
Application
Set up the machine
Find two 1.5-by-1.5-meter aluminum strips of 9A insulating glass
With the production line as the benchmark, two glasses are roughly aligned with the feeding section and the production line position
Put the suction cup into the feeding section and place the position of the discharging section and the horizontal spacing of the feeding section is 245-255
Install the machine head vertical beam

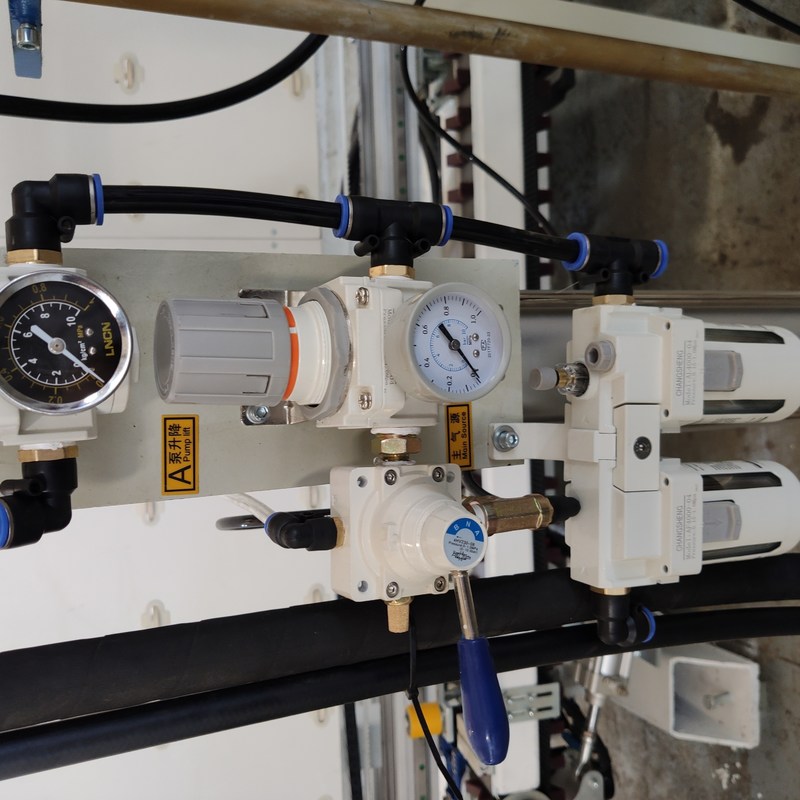

Connect electricity and gas installation accessories
Turn on the glass feed to adjust the v-belt so that the glass and back wheel close together to correct the v-belt
Leveling the feed and production line
Leveling the feeding and discharging sections

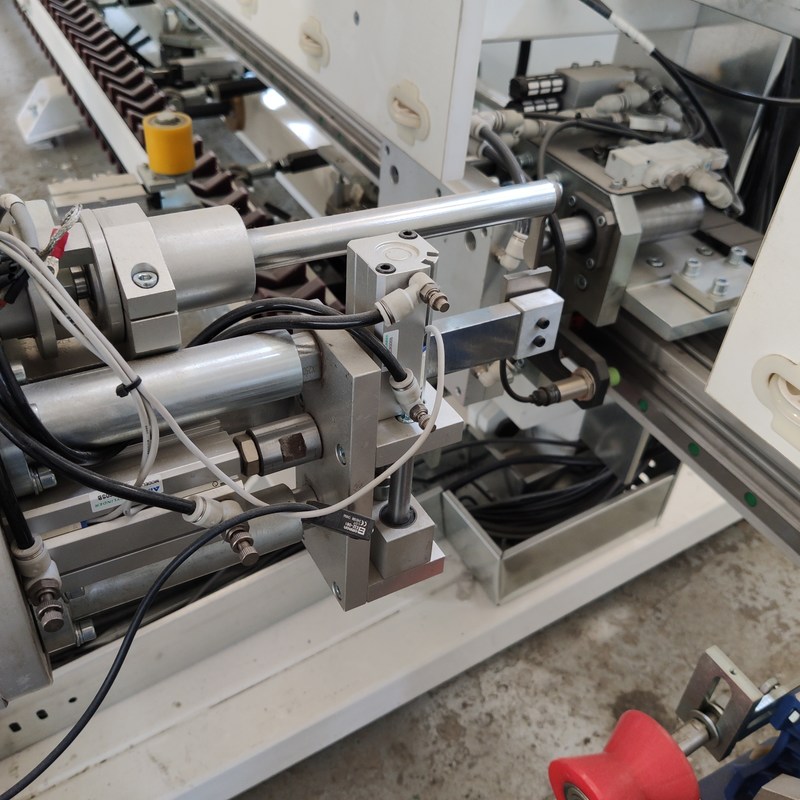

Adjust the expansion of the machine head so that the detector adjusts the distance between the head and the discharge section at the edge of the glass
Adjust the position of the suction cup
The empty trial to test the position of the four sides of the nozzle
With glue of commissioning

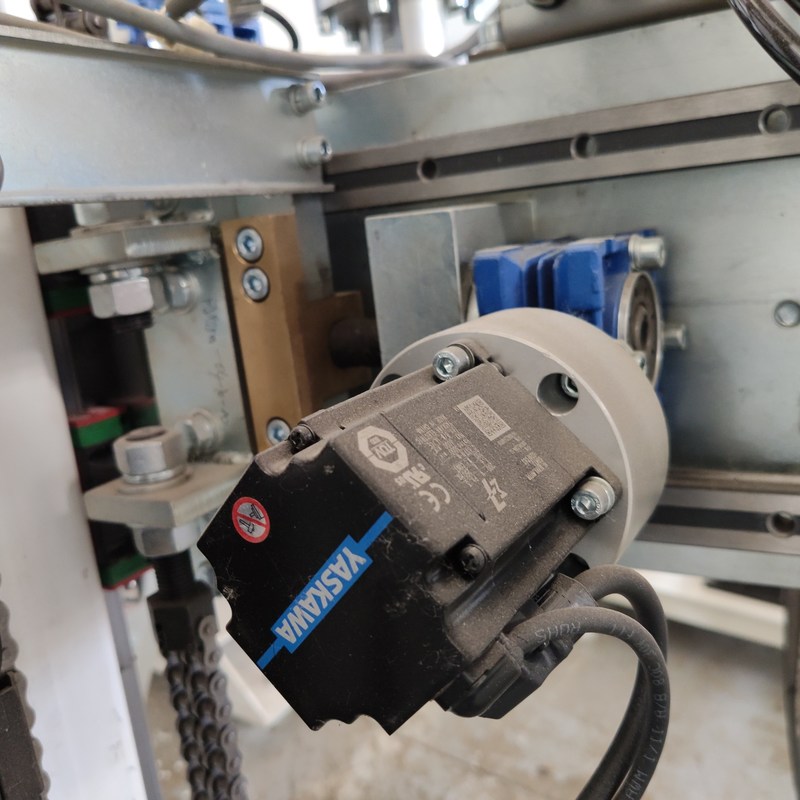

Debug the mechanical position of v-belt positive limit negative limit and fix the limit switch;
Drive backward to the mechanical position close to the negative limit of the v-belt. Then fix the v-belt zero detection switch at this position and stop immediately after touching it.
Drive forward to the mechanical position approaching the positive limit of the v-belt. Then fix the v-belt positive limit detection switch in this position and stop immediately after touching it.hen set the pressure on one side, two sides, three sides and four sides, rotate the glue head to 0 degrees, 90 degrees, 180 degrees and 270 degrees respectively. Input the corresponding percentage in the interface of forced sticking. Push the glue nozzle by hand, which feels like a spring, and the reference value is 35%, 15%, 35% and 90%.Maintenance state, in the manual state, the moving plate is in the working open position. Select maintenance open, keep pressing until the board is fully open. Do effective support between the press plate, or have a man on duty station, people can enter between the two boards.
The second positioning distance of the first side of the three-layer glass, the larger the parameter, the less the glue nozzle sticks to the glass.If the location of the second cavity is not correct, the three-layer glass will be used for compensation.This parameter needs to be modified in case of error in line length measurement.After the first edge is applied, the nozzle is rotated 90 degrees. After scraping, the glass will go some distance in the direction of the input section.After applying the second edge, the nozzle will rotate 180 degrees. After scraping, it will drop down a bit.After applying the third edge, rotate the nozzle 270 degrees. After scraping, the glass will go some distance in the direction of the output section.
Max.glass size | 2500mm |
Min.glass size | 170mm*400mm (2000mm machine) |
Glass thickness | 12-56mm |
Working speed | 5-40m/min |
Air pressure | 0.6-0.8MPa |
Squeeze pressure | <350kg/m³ |
Plane angle | 6°- 9° |
Max glass weight | 400kg |
Voltage power | 380V 12kw |
Overall dimension | 8700mm*2000mm*3500mm |
