Product Details:
|
Name: | Insulating Glass Line | Max Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min Glass Size: | 450mm*280mm | Glass Thickness: | 3-15mm |
Ig Thickness: | 50mm | Washing Speed: | 2-10m/min |
Washing Brushes: | 6pairs | Dimension: | 23500mm*3500mm*3700mm |
Total Power: | 380v 40kw | Weight: | 6500kg |
Tech: | Air Floating | ||
High Light: | Inflatable double glass machine,50mm insulating glass line,Inflatable Hollow Glass Line |

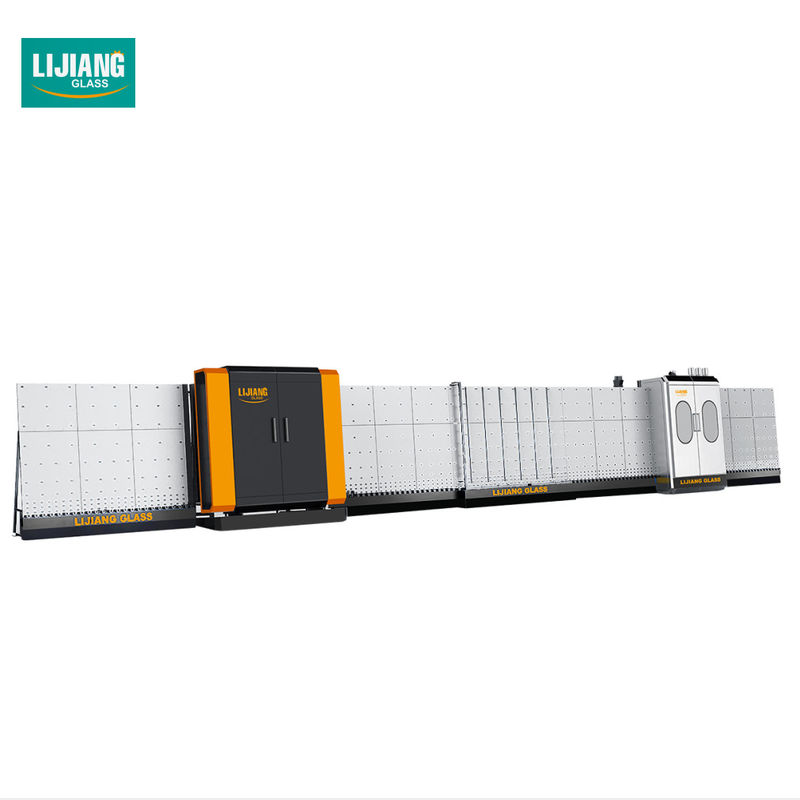

Hollow glass double inflatable line, two layers of inflation, more power
Hollow glass placed correctly or not will affect the final quality of hollow glass, whether in production or in the transport or store on site first stacking frame design requirements take into account the characteristics of the hollow glass heap fuck syndrome to a certain Angle, but at the bottom of the plane and side should always be 90 degrees, so as to ensure the two pieces of glass of empty glass in the bottom can vertically placed in the stacking shelves, also note that at the bottom of the glass should not touch oily be soiled, lime and other agent, because they are the first of insulating glass sealant will produce different degrees of erosion, With the continuous popularization and application of insulating glass, people have higher and higher requirements on insulating glass. We should constantly improve the processing technology of insulating glass, strive to improve the technical level and product quality, and promote the development of insulating glass to a higher, newer and stronger direction.

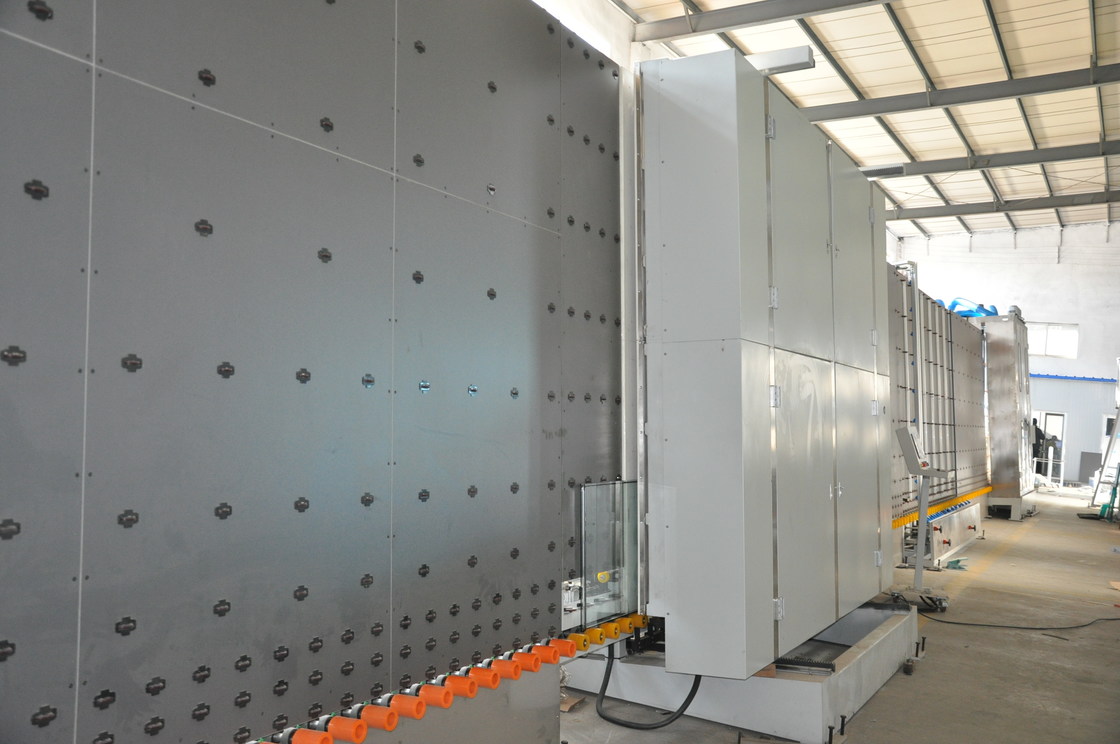

The cleaning of glass must be done by machine, because manual cleaning cannot guarantee the cleaning quality. To ensure the bonding between sealant and broken glass, it is better to use deionized water. In addition, to ensure water circulation and save water resources, the water can be filtered to ensure long-term use. After cleaning the glass to pass the light inspection, check the surface of the glass whether there is water, water stains and other stains, if there is water and other drift with machine speed such as hot product degree. The air lamp, the brush, in addition to the adjustment until the effect is good enough to wash after printing glass should be assembled into hollow glass within 1 hour, in addition to ensure that the glass and glass do not scratch between the best semi-finished glass storage car, the glass separated
Insulating glass is mostly used in door and window industry, because everybody needs to take care of the reasonable structure of door and window, design the insulating glass according to the standard, can give play to its effect of heat insulation, sound insulation, theft prevention and fire prevention. The use of hollow double - layer toughened glass can reach the laboratory standard! On the market still add force inert gas and the hollow glass of color colour makings gas, as well as add beautiful scenery strip to wait to have reinforcement and adornment effect. Radiative transfer Radiative transfer is the transfer of energy in the form of radiation by rays, including visible, infrared, and ultraviolet radiation, as in the case of the sun. Rational allocation of insulating glass and reasonable thickness of insulating glass interval can minimize the transfer of energy through radiation, thus reducing the loss of energy. Convection is caused by the temperature difference on both sides of the glass, which causes air to drop on the cold side and open on the hot side, resulting in air convection and energy loss. There are several reasons for avoiding this phenomenon: first, the sealing of the glass and the surrounding frame system is not good, which causes the gas inside and outside the window frame to exchange directly and generate convection, resulting in the loss of energy; Second, the hollow glass of interior space design unreasonable, resulting in the effect of temperature difference of the inside of the hollow glass gas to produce convection, exchanged with quantity, so as to generate energy loss = the window of the whole system are all composed of internal and external temperature difference is big, the temperature difference inside and outside insulating glass is using LengShe and thermal conductivity of convection in both sides of the hollow glass first, and then through the KongZheng delivered a whole amount of loss. Reasonable insulating glass is provided with low energy flow loss.
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
