Product Details:
|
Product Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*450mm | Glass Thickness: | 3-15mm |
Insulating Glass Thickness: | 60mm | Glass Washing Speed: | 2-10m/min |
High Light: | 10m/min double glass machine,Glazing insulated glass equipment |

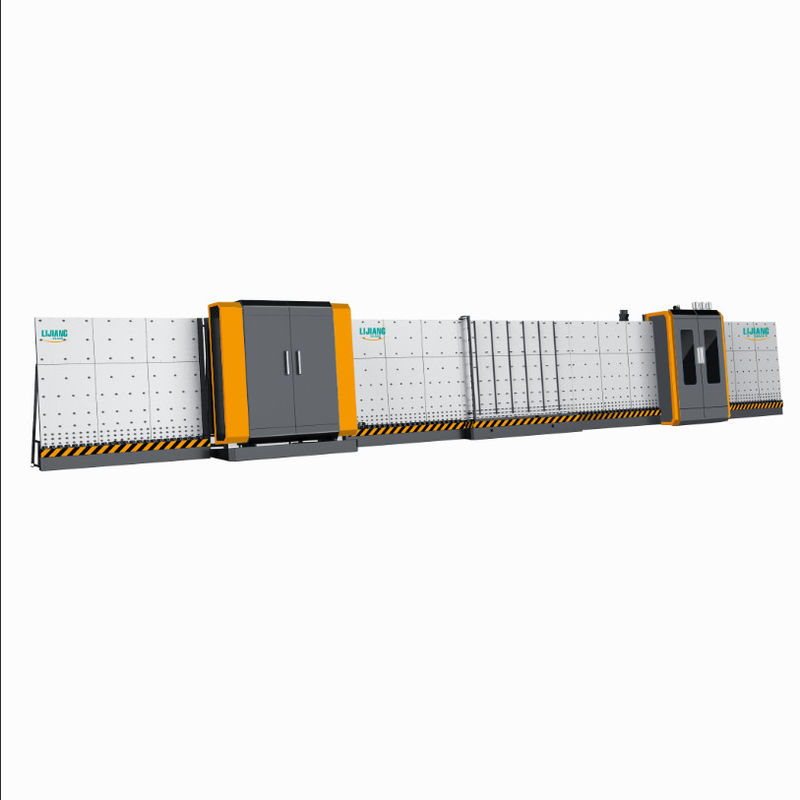

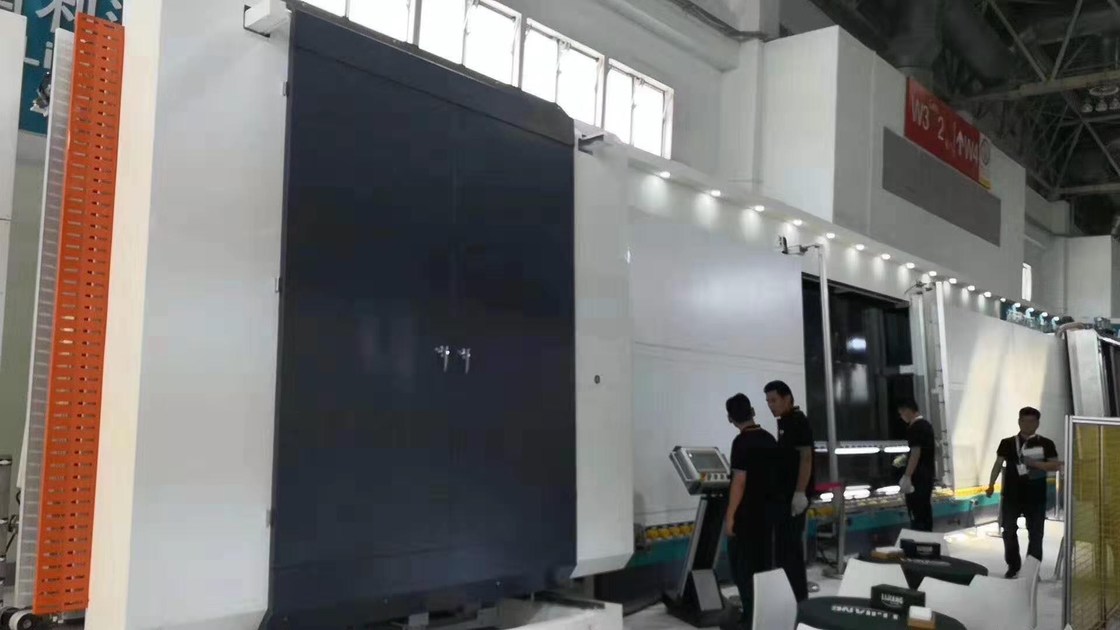

Automatic Double Glazing Hollow Glass Processing Machine LJBZ2535/ Insulated Glass Processing Line
LIJIANG production line adopts the latest technology, its main purpose is to create high-end
quality, to provide customers with the latest production technology, improve production efficiency,
save production costs and produce maximum benefits.
Now LIJIANG mainly has two kinds of IG line with different two different technologies. One uses
transfer wheels to transport glass, and the other is a new technology that uses air-floating
technology to transport glass. This new technology is to prevent the glass from being contaminated
by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
The LJBZ2535glass pressing section is used for the pressing and flat of insulating glass and the flat
pressure.Both of two actions are completed in this part, which greatly reduces the structure length
of the whole insulating glass production line.
The glass is supported and transmitted by the polyurethane roller. The transmission roller is driven
by the motor through the frequency conversion speed, which is driven by the chain wheel. The fixed
rear pressure plate is equipped with air cushion device to assist the glass conveying. The air cushion
gas source is filtered by high precision filter. The wind control system is adjusted according to the
working condition of the glass. The movable front presser is equipped with a suction device that can
hold the glass firmly. Glass slice and flat pressure by the hydraulic pressure drive control activities
before the synchronous transmission shaft of the compressor, ensure that two pieces of glass can
safely and balanced portfolio and according to set the time and pressure roller, hydraulic system
can automatically according to the size of the glass to provide four kind of pressure, different
specifications of the hollow glass can according to the required pressure roller, conform to the
requirements of insulating glass.
Both of the parameters of left and right orientation of the glass side and glass positioning up and
down direction are set according to the user's requirements. The servo system can accurately
perform the setting parameters.
It is the first one in China to use adjustable points to ensure that the platen will never deform.
We adopt CNC technology into the pressing board. We designed the adjustable points inside the
pressing board to keep the back plate straight all the time. In China, except LIJIANG, no one can
guarantee that the pressing board will remain vertical and straight all the time after used 10 or 20
years. However, we solve this problem already.
The pressing box uses servo motor and timing belt to support pressing IG units.
Servo motor can be accurately calculated the thickness of the glass and aluminum spacer.
Compared with traditional hydraulic station, servo motor can guarantee the precise working
pressure and protect the glass from damage, at the same time increasing the working speed.
The special structure inside the washing machine can automatically recognize glass thickness.
Allowing different thicknesses of glass to be transferred quickly, increasing production speed.
According to the test, it takes only 22s to produce a 1m*m insulating glass.
1). There is a universal joint device, when the glass thickness was changed, the wind knife will
move forward and backward to adjust the distance so that the relative distance between the
wind knife and the glass is constant, so as to avoid damage to the glass due to the changes
of the glass thickness.
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
