Product Details:
|
Product Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*450mm | Glass Thickness: | 3-15mm |
Insulating Glass Thickness: | 60mm | Glass Washing Speed: | 2-10m/min |
High Light: | Conveyor insulating glass line,0.8MPa insulating glass machine,0.8MPa Glass Production Machinery |

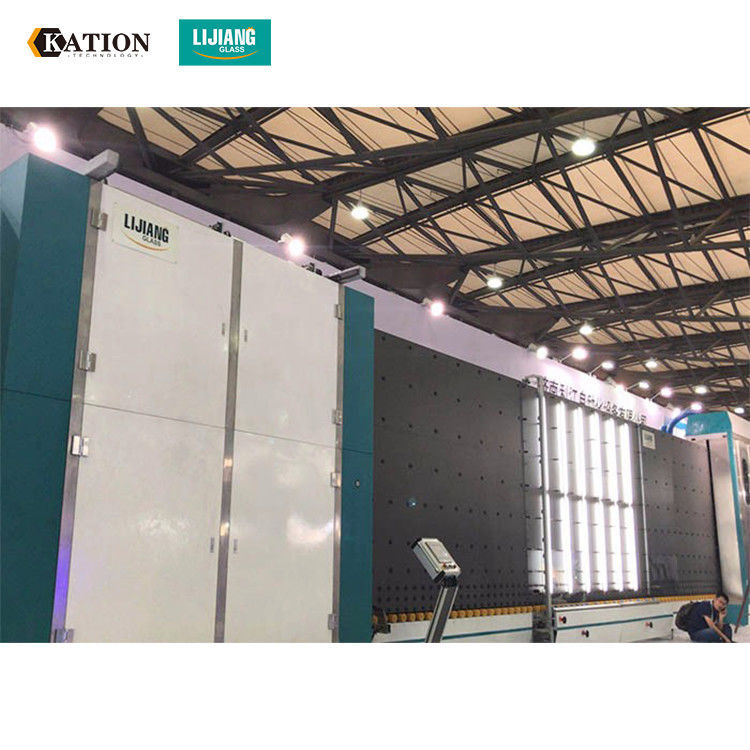

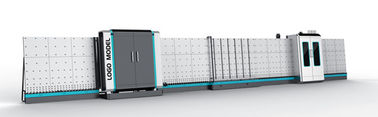

Vertical Insulating Glass Production Line LJBZ2535
LIJIANG production line adopts the latest technology, its main purpose is to create high-end
quality, to provide customers with the latest production technology, improve production
efficiency, save production costs and produce maximum benefits.
Now LIJIANG mainly has two kinds of IG line with different two different technologies. One
uses transfer wheels to transport glass, and the other is a new technology that uses
air-floating technology to transport glass. This new technology is to prevent the glass from
being contaminated by wheels and leaving traces, so new technology is used to improve
the IG production’s high quality.
LJBZ2535 inspection and frame section is inclined vertical structure. The transmission roller
is wear-resistant, acid and alkali polyamine grease roller, adopting the stepless frequency
conversion speed regulation and the glass can run smoothly at the appropriate speed.The
positioning device is divided into two parts. When making the small size glass, the first half
aluminum frame is not positioned and only the second half of the aluminum frame is positioned
under the aluminum frame. The digital display on the handwheel shaft can accurately adjust
the glass side positioning and the positioning of aluminum frame to adjust the depth of the
two components polysulfide.High quality inspection lamp can clearly inspect the cleaning
quality of glass.
LJBZ2535 flat press loading section is inclined vertical structure. The transmission roller is
wear-resistant, acid and alkali polyamine grease roller, adopting the stepless frequency
conversion speed regulation and the glass can run smoothly at the appropriate speed.This
section is used as the storage area of small glass and the storage of super-long glass,
which improves the production efficiency of small glass. Equipped with glass and aluminum
frame automatic detection mechanism, provide parameters for pressing sections.

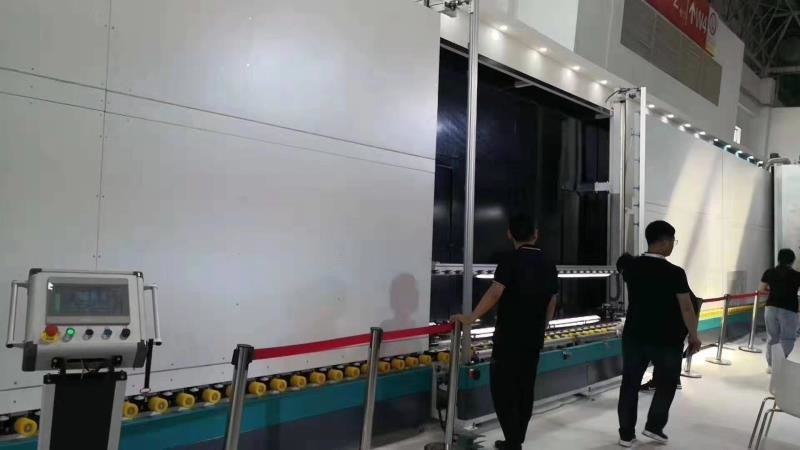

The washing machine uses 304 stainless steel materials
The whole washing and drying section adopt 304 stainless steel materials, including the plate
and interior spare parts.
Using Europe's advanced anti-noise system to create a good working environment for employees
The noise can be controlled below 90 decibels by using nylon gear and sponges.
Max. glass size | 2500mm*3500mm |
Max glass size for filling gas | 2500mm*3200mm |
Min. glass size | 280mm*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
