Product Details:
|
| Production Name: | Glass Washing Machine | Max Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min Glass Size: | 280mm*400mm | Glass Thickness: | 3 - 15mm |
| Material: | Stainless Steel | Warranty: | 1 Year |
| High Light: | Pre Washing glass washing machine,Brushes flat glass washing machine |
||

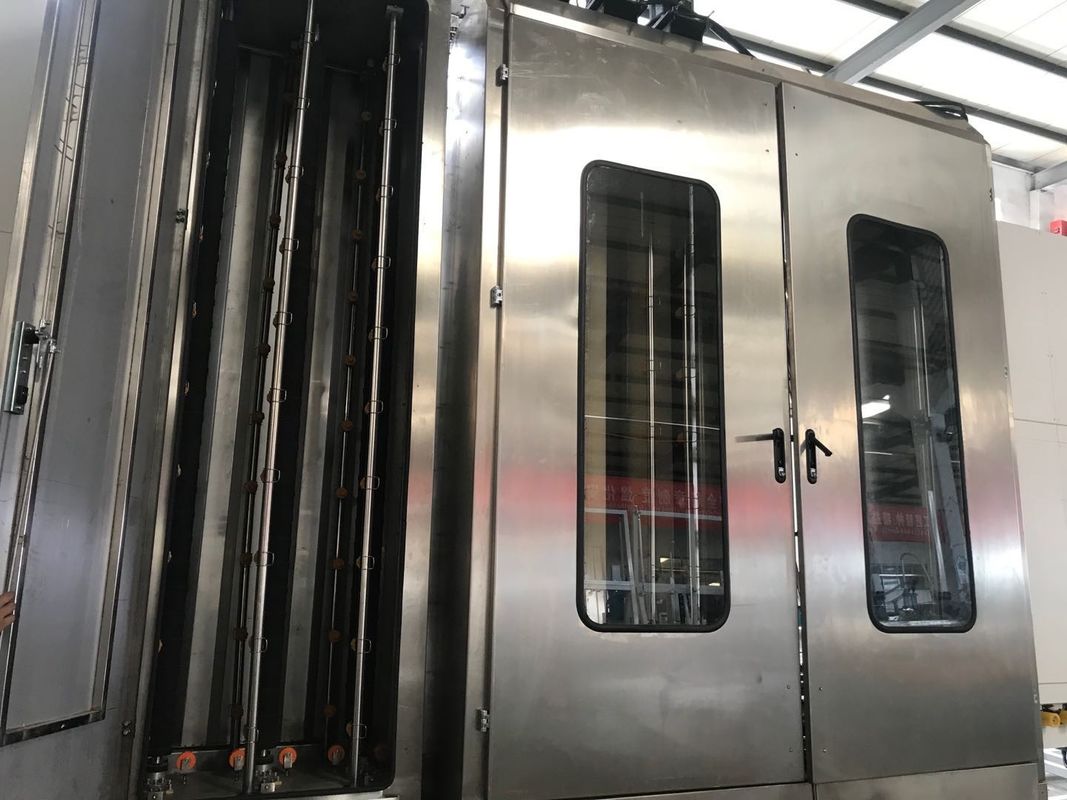

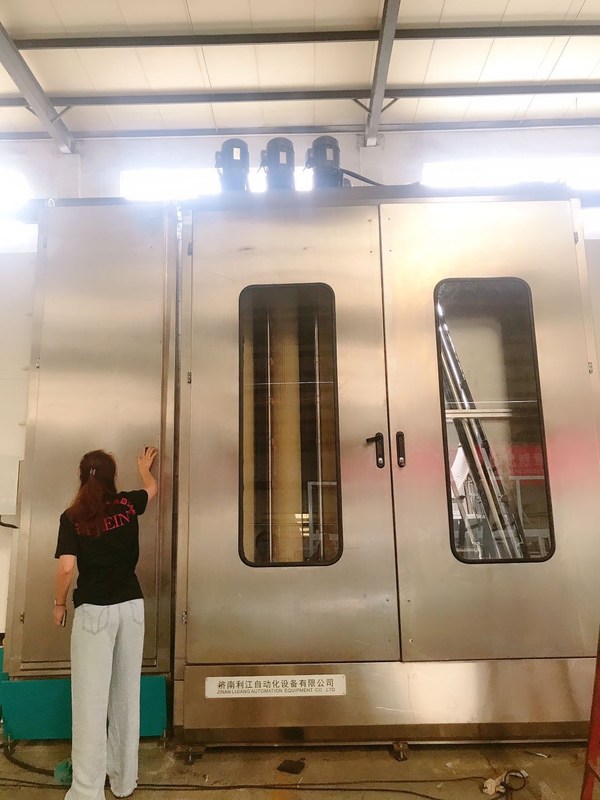

Pre Washing Section Vertical Glass Washing Machine With Stainless Steel And Soft Brushes
Vertical Glass Washing Machine
• 01 transfer section
Coating detection mechanism, automatic detection of offline Low-e film
• 02 washing machine
Main feature:

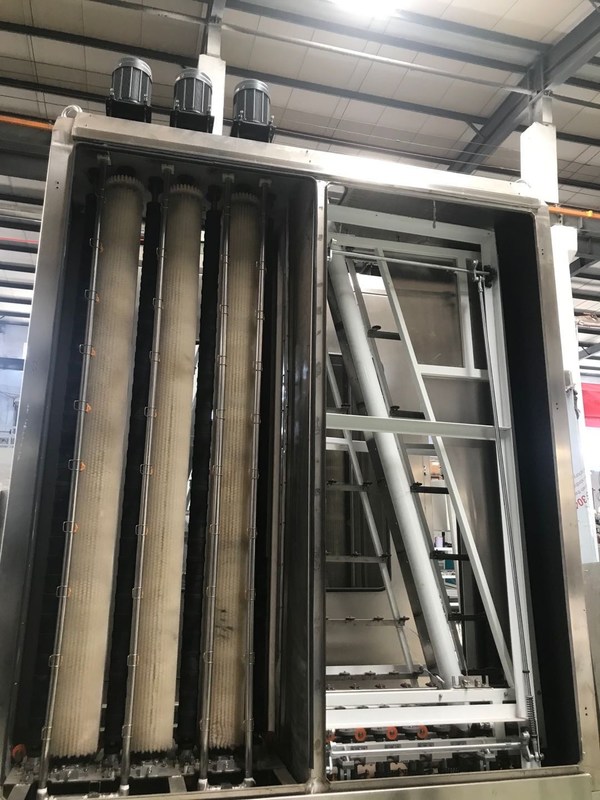

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• Pre-washing (Optional)
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
• 03 discharge section
• Storage glass
Main performance features:
The high-strength polymerized plastic spraying back plate with folding structure
The whole process PLC control system, human-machine interface touch screen
Automatic identification of coating and Low-E glass
Online and offline Low-E glass can be cleaned
Automatic temperature control and washing system of water tank
The noise reduction system is combined with the stainless steel air drying system
Intelligent intermittent energy saving working mode
Digital display glue depth adjustment device
Adjustable matrix separated plate pressing system
Automatic lateral rotary positioning system for glass
Connection mode of aviation plug
Automatic cooling box
Automatic positioning system for three glass and special-shaped glass lamination
New automatic butyl extruder machine
Introduction :
Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.
Machine features:
(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
Parameters:
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |
