Place of Origin:
China
Brand Name:
LIJIANG
Certification:
CE
Model Number:
LJQX2500
1. Automatic detection of low radiation and high performance glass
2. Online and offline low-e glass washing, automatic identification of low-e film
3. The air knife can automatically adjust the width according to the thickness of the glass
4. Adopt intelligent intermittent energy-saving working mode
5. Layered cleaning system
6. Water tank automatic temperature control, water supplement system
7. European silencer system and stainless steel drying system
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor for step glass | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||

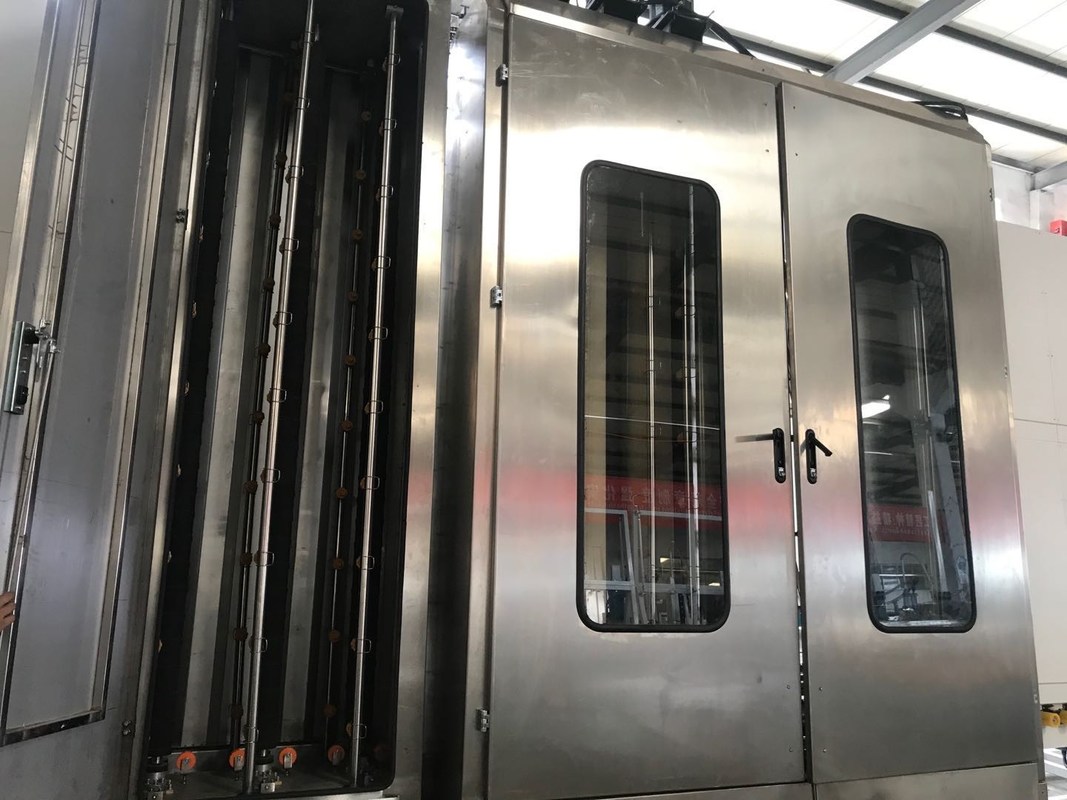

Six brushes
It has 6 brushes, all soft brushes, which can clean flat glass, tempered glass and low-e glass. The bristles have a diameter of less than 0.1 mm and will never damage the glass, especially for low-e glass
Automatic recognition of glass thickness
There is a gimbal device. When changing the thickness of the glass, the air knife will move back and forth to adjust the distance, so that the relative distance between the air knife and the glass is constant, thus avoiding the change in the thickness of the glass caused by the damage caused by the glass.
There are chain gears on both sides of the bottom of the glass, which can actively transfer the glass, so as to maintain fast speed, not only large-size, small-size glass can also pass quickly.
Materials
The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.
