Product Details:
|
Certification: | CE, CE& SGS, | Name: | Argon Gas Filling Panel Press Igu Line Igu Glass Unit Machine |
---|---|---|---|
Power Supply: | 380V,50HZ Or Customized | Washing Speed: | 2-10m/min |
High Light: | 50mm double glass machine,Argon Gas glass processing machines,50mm Igu Glass Machine |

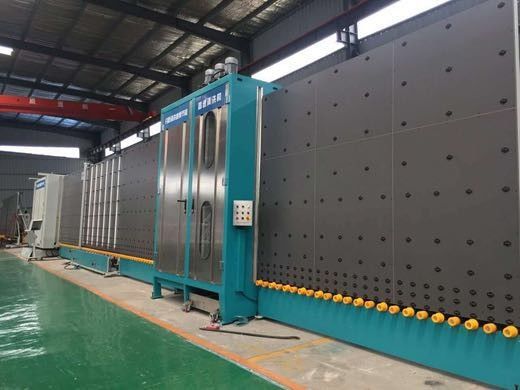

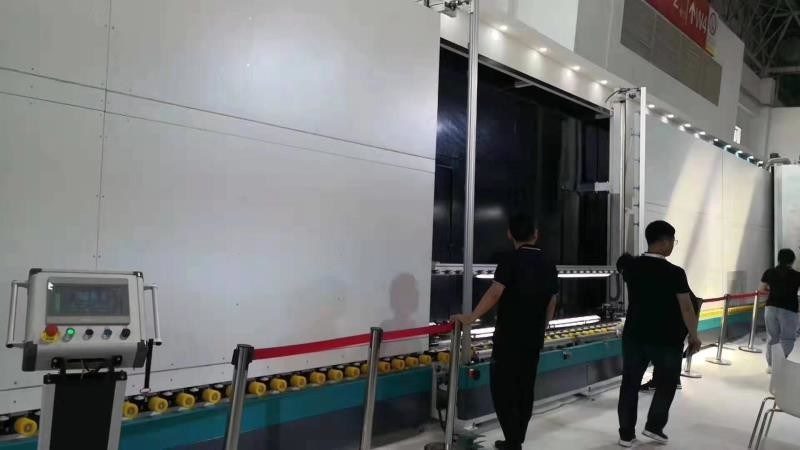

Argon Gas Filling Panel Press Igu Line Igu Glass Unit Machine
The insulating glass machine can complete the following functions: Glass cleaning, aluminum frame placement, normal double glazing, ordinary glass glazing, shaped glass and second pressing double glazing .
Insulating glass machine is a special equipment in the production of aluminum insulating glass strip, which has the advantage of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, Europe design concept, easy and intelligent operation;
2, world-famous brands of key components, ensure stable operation and long service life;
3, Designed for processing high quality glass, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, large-scale glass processing, various models and customization available;
5, Big production capacity, 1,000pcs output in one working day;
6, which can be operated for double layer, triple layer, reinforced sheet and abnormal shape insulating glass;
7, Automatic argon gas filling air during glass sheet assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Power Supply | 380V,50HZ or customized |
Total Power | 40 KW |
Washing Speed | 2-10m/min |
Max. working speed | 45m/min |
Min.Glass size | 450*280mm |
Max. Glass size |
2500*3200 2500*4500(second pressing) |
Washing glass thickness | 3-15mm |
Max. Insulating glass thickness | 50mm |
Weight | 8000kg |
Dimension (L*W*H) | 23600*3500*3700mm |
