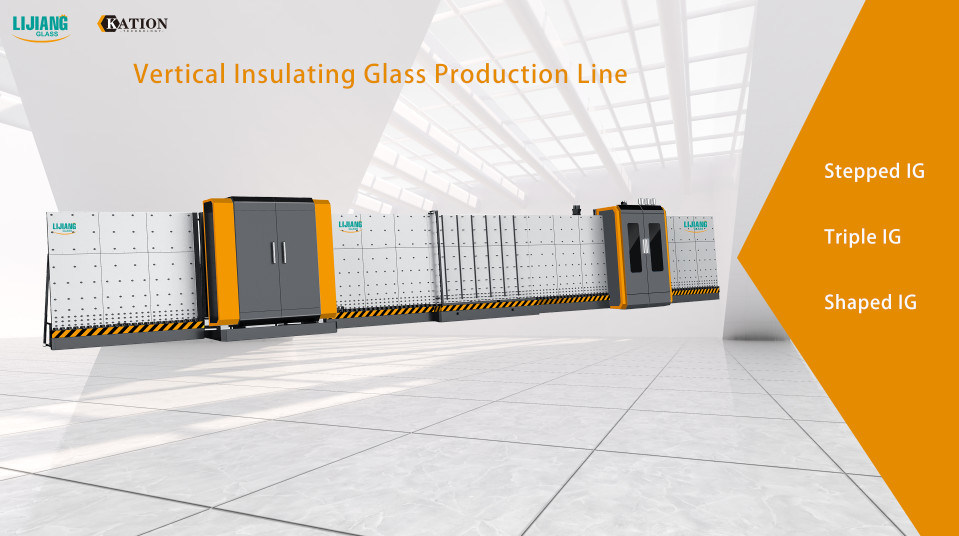

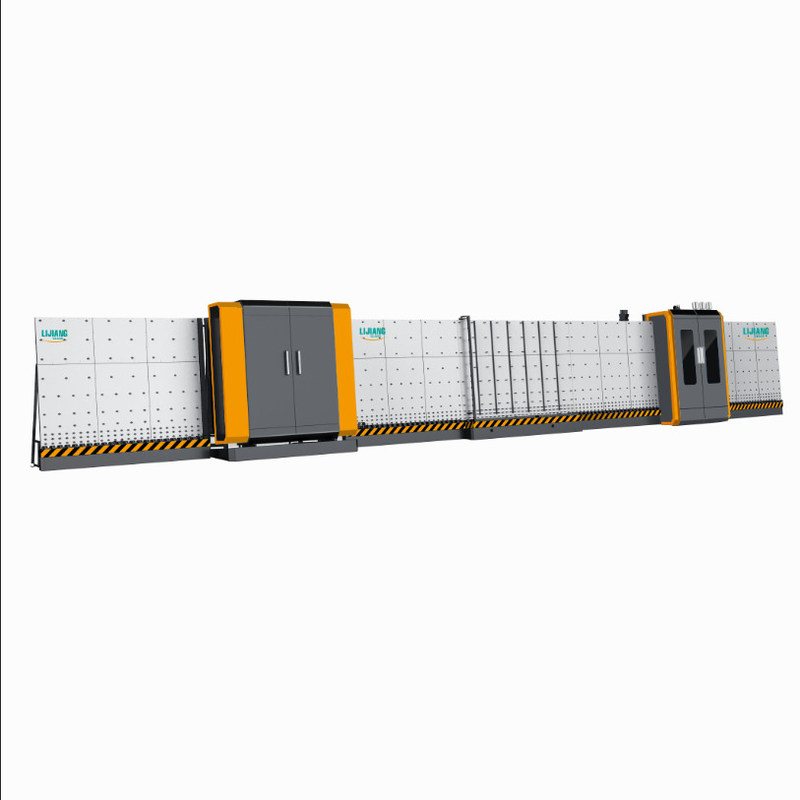

Adjustable Blade Width 19mm Insulating Glass Production Line

Vertical Insulat equipment advantages, the blade width can be automatically adjusted according to the thickness of the b

Main Features:

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

Main feature:

• Using 6 pieces of soft brushes

• Wash online and offline low-e glass, automatically recognizes Low-e film

• Washing part adopts the design of upper and lower layered structure

• Adopt variable frequency fan, energy efficient, good cleaning effect

• The air knife can automatically adjust the width of the air knife according to the thickness

• Using intelligent intermittent energy-saving working methods

• Hierarchical type washing system

• Water tank automatic temperature control, water replenishing system

• European silencer system

Main feature:

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG

• Filling argon gas automatically

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen

Main Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.

• High-speed IG processing line

• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.

• Installing two spacer frames for two IGU by one workman.

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.

• From transfer part to pressing part, each part is divided.

• Suitable for mass production in a factory, Ultra-fast speed.

Technical data
